confetti India pvt ltd GT Road Industrial Area, GHAZIABAD, Uttar Pradesh

CIPL manufactures inclined size presses for all paper & board grades. The machine design balances the benefits of both the horizontal & the vertical design concepts along with eliminating the shortcomings of both. The configuration has top fixed drive roll and moveable bottom role with loading mechanism and helper drive for preventing power loss through slippage. Roll positioning for hard / soft roll is as per requirement of better paper release tendency or power savings. This universally accepted design is available in all deckle and diameter ranges.

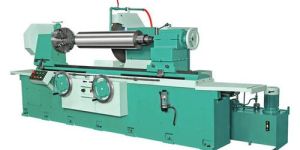

Press Rolls, Dryers, Pope Reelers and felt Rolls.With our two German Machine namely Voith and Waldrich Siegen we can grind the job upto 6 mtrs Deckle and 2mtrs Diameter with an accuracy less than 5 microns. Be it be Paralled Grinding or Cambering CIPL provides it with Superfinished Surface Finish. Cover Size, Bearing Size , Coupling Size are also maintained and grind by us in case of worn out or New Rolls.

Pope Reeler is Custom made machines to meet specific requirement of customers. The machine consists of M.S. fabricated frame and dynamically balanced drum of diameters ranging from 600 mm to 1200mm Primary and secondary arrangement are pneumatically / Electro¬-mechanically operated. Oscillating Doctoring arrangement and Camber Roll incorporated if desired. Manufactured in all deckle ranges upto 4500 mm.Salient Features Of Our Calenders : Capacity to finish all paper grade. Consume less power and occupy less space. Sturdy, robust and time tested designs. Easy operation and maintenance. Pneumatically loaded rolls and doctors. Compact pneum. control panel with access. Osc. doctors for better surface preservation. Compact hydraulic power unit & control desk.

CIPL manufactures Camber Bowed Roll, which are used in Paper industries to Remove Wrinkle From Paper,Seperate Slit ,used in Pope Reel ,Slitting machine, Paper Mill ,etc . Our Camber Roll includes both Hard Chrome plating type or Teflon or Rubber Coating Type.Supplying up to the deckle of 5 mtrs we have successfully delivered these Camber Bow Rolls to many prestigious clients.

CIPL manufactures doctoring systems that provide peak Machine performance with lower operating costs. In order to serve the purpose more efficiently. We have now launched Tube Loading Doctoring Systems. In compassion to the doctors which are still in use. This technology is far ahead as it makes use of the air tubes which run across the complete doctor, thus applying the same pressure of blade through the complete length while the previous version do so more at the corners resulting in less accuracy and less life. This Doctor is made of complete Stainless Steel mounted on fabricatedcast base and thus can be used in Dryer and press sections also with least detrimental ef led t from Steam and Moisture. Available in all deckles.

In order to serve the purpose more efficiently. We have now launched Tube Loading Doctoring Systems. In compassion to the doctors which are still in use. This technology is far ahead as it makes use of the air tubes which run across the complete doctor, thus applying the same pressure of blade through the complete length while the previous version do so more at the corners resulting in less accuracy and less life. Rugged,Sstainless steel construction makes the CIPL Holder suitable for difficult locations including

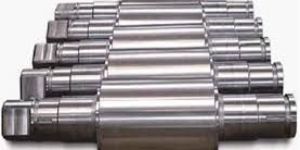

Single nip hydraulically loaded machine with two nos chilled C.I. Rolls with provision of steamwater circulation arrangement.Compact power pack and engaged gear top roll to prevent slippage under severe loading conditions.Capable of exerting nip pressure in excess of 200 kgcm. It provides excellent caliper control and smoothness to the apIlied board manufactured in all deckle ranges.

CIPL has now manufactured, modified and commissioned a no. of variable crown machines for various light grammage varieties of printable paper grades. The design has fixed drive top chilled C.I. Roll and Bottom positioned variable crown Roll. The concept, of path breaking technology that revolutionized the paper Industry the world over with elimination of face length and speed barriers for paper machines is now gradually taking footholds in small/medium scale paper mills, helping them towards better productivity and quality and hence gain a competitive edge over contemporaries. It provides the paper maker maximum versatility for producing wide range of products through single machine.Salient Features Of Our Calenders : Capacity to finish all paper grade. Consume less power and occupy less space. Sturdy, robust and time tested designs. Easy operation and maintenance. Pneumatically loaded rolls and doctors. Compact pneum. control panel with access. Osc. doctors for better surface preservation. Compact hydraulic power unit & control desk.
