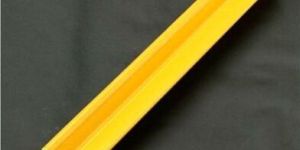

Transom is either made of back to back angular or T – shaped profile with The same fixing device on each end as the ledger. They are used to carry 3 or 5 number of steel planks wooden battens and toe board

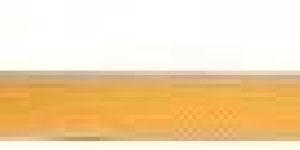

For the connecting the access brackets along the length of the platform This ensure correct spacing so that the steel plank are not dislodged

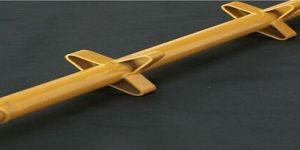

The standard is the vertical member of the scaffold with a spigot (either round or box type) At one end for accurate alignments. A series of V” locating lugs are welded on the tube for the attachment of ledger, transoms And auxiliary components Open ended standards and loose spigot are also available

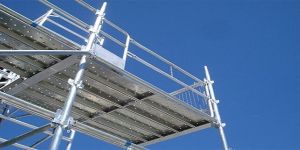

V-Lock Scaffolding is commonly used throughout Australia and New Zealand due to its safety, reliability, flexibility and easy to use modular system. As space around the city centers tightens and the boom in the mining industry continues scaffolding is rising in popularity to get a job at height completed quickly and safely. Builders working on large and small projects find it the V-Lock scaffolding system easy to set up and assemble and just as easy to take down again. Leaving them more time to move on to the next job and start a new building project. V-Lock scaffolding can be used wherever regular scaffold is used. The patented V-Lock modular system can be built to any height using a strong and safe interlocking system. There are easy parts and useful accessories such as planks and safety steps to keep you and your workers safe when on site. From government buildings and projects, commercial and business buildings as well as smaller domestic jobs V-Lock can certainly help any builder on any project to work faster, smarter, more efficiently and above all safely.

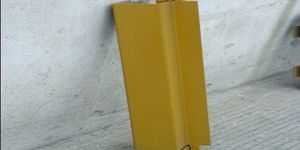

Fixed to the inner and outer standard and placed over the first Ledger of an adjacent 90 bay seating on one side for 3or 5 numbers Of steel or plank giving the same level decking on both scaffold nuns

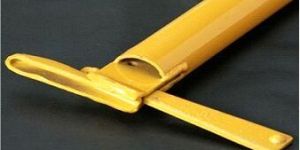

The ledger is used to connect standard in a longitudinal direction .it is made from Scaffold tube with wedge fixing at each end which fits in the V’ locating lugs on the Standard. The ledger is also used as a guardrail

SPECIFICATIONTESTING'S EMD Scaffolding Tubes: Made from tested killed steel outer dia 48.3mmx4.0mm thickness as per BS:1139 TYPE-3 ,Minimum Yield Stress235N/mm2 (34 Ksi) (24Kg/mm2)- wall thickness 3.2MM less will not acceptable. Finish- Pure Hot Dip Galvanized as EN 10240A 1 1- MTC 1- MTC 1- MTC 1- MTC 1- MTC

Made from EN Grade steel inner dia 15mm & outer Dia 17mm cold rolled with 10mm Pitch ACME Threads –  Adm Load – 85Kn  Load at Yield Point- 149Kn  Breaking Load- 170 Kn

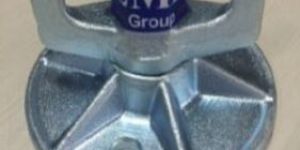

Made for Tested EN Grade steel with duly fitted 22mm wing nut , Load tested 200 KN , weight 3.2Kg

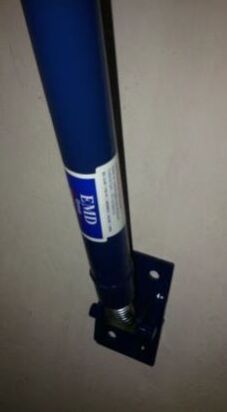

Single push pull prop are manufactured with seamless /ERW heavy duty tubing YST-310 with 2 screw rods 38mm ODx950mm long duly fixed at both ends& freely adjustable range 650mm and swivel heads plates at both ends .

Made from Tested EN Grade steel outer dia 48.3mm x 4.0mm THk with duly hot dipped galvanized as per BS:1139 :Part1, Sec:1:1

Feature : Minimum Maintenance,Dimensionally Accurate

Features : Easy to install, Light weight, Fine quality

Standard with spigot are the vertical member of Ring lock scaffolding that utilize a removable spigot. The standard provide the vertical support for scaffolding

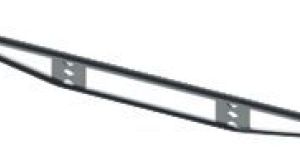

The truss ledger has been designed to enable higher service loads to be applied to the scaffold Than could be applied to regular ledger. The reinforcing tube and stiffener plates supports the Top tube and provide strength while maintaining lightness

The ring lock transom fits vertically between two ledgers positioned 0.5m apart and attached With half coupler. When positioned at mid or third points between two ledger the maximum Point load capacity is increased

Ring lock system is connection consists of standards with rosettes every 0.5mm And horizontal members with a cast end captive wedge (horizontal / Transom) When connected together the ledger ends and rosettes create a very stronger Connection .it is this connection the transmits force throughout the scaffold structures The ring lock rosette has been manufactured to have 8 holes, 4 of which are small And 4 are large. The smaller holes represent the 90 degree angle at which Horizontal And transom are fitted. the large hole accommodate the diagonal bay brace and horizontal at variable angles The rosette also allows for the horizontal to be connected into the large holes which gives Up to 15 degree of move ability

Swivel brace are used for the lateral bracing modular scaffolding Swivel brace can also be used as obtuse angle mid rail and top or hand Guard rails in conjunction with stair system .swivel brace give more Versatility to attach the brace to any location on the vertical member Of the scaffold

Straight ladder are designed to attached to the inside or outside of scaffold Tower providing safe access to the various deck levels

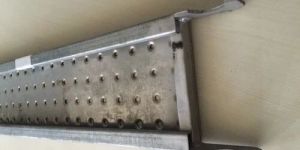

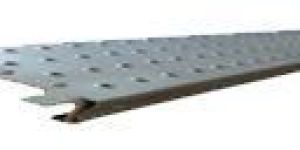

Metal plank are side by side to form the working platform. The number Of metal plank used determines the width of the platform they span the Ledger of the hook on to the supporting ledger/transom there is an antilock System to prevent uplift in adverse condition

Horizontal are the member of Ring lock scaffolding .They provide horizontal support for load and planks ledger can also used as mid rail and top or hand guard rails

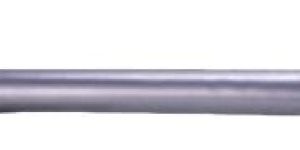

Diagonal bracing are used for the lateral bracing of ring lock scaffolding . Diagonal brace can also be used as obtuse angle mid rail and top or hand Guard rails in conjunction with stair system

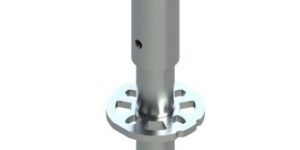

The base collar is the beginning vertical member of the ring lock scaffolding system. Its sits upon a fixed or adjustable base

The base jack is used as a staring base for a scaffold. It is adjustable in height To allow for compensation on uneven surface so that level scaffold is always attainable
