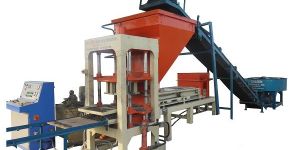

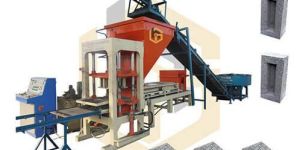

Fly Ash Brick Making Machine Dealers in Ghaziabad

• Brand Name: REVA
• Condition: NEW
• Country of Origin: India

We are offering fly ash brick plant special features : reva has produced the most versatile plants for the manufacture of fly-ash bricks/ pavers/ tiles/ blocks made out of fly ash as the main constituent in combination with sand, lime and gypsum. Bricks can also be produced out of fly-ash and cement mix or sand lime or sand cement i.e. The same machinery can be employed for making concrete bricks/soil bricks. the process consists of mixing and grinding the materials in the pan mixer. With the addition of batching equipment, the material can be mixed with, in the required proportions by weight, to have uniform quality most economically. The mixed and ground materials are conveyed on the belt conveyor to the reva brick making machine from where the hydraulically compressed bricks are continuously produced and taken to the curing site on pallets by the pallet trucks/conveyors, where, bricks are cured by water spray or steam cured for early strength. the main machines of the system are pan mixer, belt conveyor, brick machine, and pallet trucks along with the wooden pallets. pan mixer (model 500 kg) reva pan mixer is specially designed for thorough mixing of the fly ash ingredients with the grinding of the lime, gypsum and other coarse and granular materials in the powder form.power is transmitted from the electric motor to the pan mixer through the heavy duty worm reduction gear box provided below the pan mixer.hard wearing liner plates are bolted and can be changed when required.easy bottom unloading mechanism.heavy cast iron rollers revolving on bearings with metal seals are provided to grind the material to the desired shape and size.changeable mixing and discharge blades are of special alloy steel with hard faced tips.the pan mixer has a capacity of 500 kgs. Per batch and powered by 15 h.p., 3 electric motor. belt conveyor : reva belt conveyor is made of sturdy steel frame.power is transmitted from the 3 h.p electric motor to the reduction box and to the conveyor roller.the fly ash mix can be regulated according to the speed of the brick making machine.conveyor belt is made of nylon belting with rubber top.frictionless idlers are provided with seals on both sides to prevent any ingress of fly-ash and dust, etc. Going in side the bearings to the idlers. hopper : a collecting hopper is provided below the discharge gate of the pan mixer in order to collect and stock the mixed material from the pan mixer and discharge the required quantity on to the belt conveyor. It is bolted on the belt conveyor's frame. reva brick machine : reba brick machine is hydraulically operated, automatic, plc controlled, self diagnosing type, having digital display.computer connection can be fitted if required.the machine develops approx. 35 tones of hydraulic force on the bricks for the required time to make the bricks uniform.the compressive force is adjustable as per requirements the machine is robustly constructed, steel structured, heavy duty, designed for taking up all types of heavy loads, due to variations in raw materials. various types and sizes of moulds can be fitted with a maximum size 250 by 250 by 100 mm. different types of monograms, frogs can be made on the bricks. the machine gives a very high production. The output is adjustable maybe from 10,000-12000 bricks per j hr. Shift or more, at a very economical cost.for continuous running of the machine, the hydraulic oil cooling arrangement is provided on the machine. the machine is powered by 15 h.p., three phase electric motor and is fitted with hydraulic pump, hydraulic motor, hydraulic cylinders direction control valves, etc. the table rotation is hydraulic, 3 stationed plc controlled with manual and auto operations. pallet trucks : specially designed to handle the bricks with pallets for effortless and easy transportation of flyash bricks with reduced labour provided with 3 nos. Pneumatic tyre wheels.hydraulic hand operated arrangement for lifting or lowering the pallets. auto batching system : radial scraper or storage hopper weigh bin with pneumatic operated gates for fly-ash and sand loading, hydraulic / electrical rotation.water batching system with feeding pump with digital display..
