Mishra Hydraulics Loni, Ghaziabad, Uttar Pradesh

Vertical Compression Baling Press for Book-Binders for handling of waste paper/corrugated boards, stationery (shreded and unshreded), plastic / fill waste etc. Ideally suited for the pressing of Paper waste, Corrugated boards, Stationery etc. and manually bundling the pressed bales for saving in storage space, transportation and manpower. Our Vertical Compression Baling Presses are known for their quality, workmanship and reliability since 1984. Our presses are available in single compression. These presses are capable of compressing various leftovers metal structural, hdpe/pp woven sack bags and wooden waste. Salient common features: The production capacity ranges from 0.5 ton to 10 tons per hour and more as desirable The operation of press is done by hand lever & semi automatically. Hydraulic pistons are designed to work under hard conditions and installed with the most suitable sealings All machines are rigorously tested prior to the delivery

Big chamber size baling press for Automobile waste like:- Car Bodies, Jeep, Scooter, Auto Rikshaw and other automobile scrap waste. Our Triple Compression Baling Presses have a reputation of excellence for their quality, workmanship and reliability Since 1984. These presses are available in Triple Compression. They are suitable for all types of ferrous and non-ferrous light metal scrap material such as stainless steel, M.S. scrap, aluminium, brass, copper and other industrial tin sheets.. Salient common features: The production capacity ranges from 0.5 ton to 10 tons per hour and more as desirable The operation of press is done by hand lever, semi automatically & fully automatically through PLC Programmable Logic Control. PLC provided in our baling presses are of international standards offering maximum production flexibility   Shearing blades and replaceable wear-resistance plates can be provided for the long life of the feeding chamber   All parts contacting the scrap is covered with 40 HRC hardness, 10 mm thickness having hardened sheet metal offering lengthened machine life   Hydraulic pistons are designed to work under hard conditions and installed with the most suitable sealings   In these presses there are 3 compressing systems. After the scrap is put in charging box, first lid cylinder operates and compresses the scrap from top position. It also closes the charging box, secondly main ram moves forward and thirdly side cylinder comes forward pressing the scrap to required size and weight. Thus making the final bale. Bale is pushes out by ejector cylinder. All machines are rigorously tested prior to the delivery

Usually limited to very small, short stroke cylinders used for holding & clamping. The length needed to contain the return spring makes them undesirable when a long stroke is needed & short stroke cylinders used for holding & clamping. The length needed to contain the return spring makes them undesirable when a long stroke is needed. Gravity return (ram type) � It contains only one fluid chamber. This type of cylinders is usually mounted vertically.

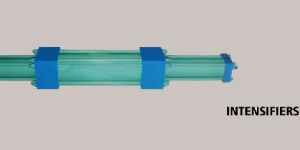

We manufacture high quality Intensifiers that are widely demanded in the market. These are designed to save energy, time, space and money in a variety of applications. It is an efficient way of generating high pressure hydraulic fluid. Its operation is quite simple. Pressurized hydraulic air or oil-enters the intensifier and acts on a confined piston. This in turn drives a smaller diameter ram or piston to deliver a given volume of fluid. As a result, the output pressure is intensified and is considerably higher than the input pressure..

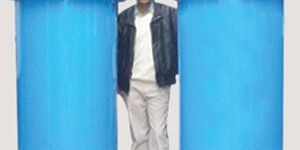

Hydraulic Ram dia 100 mm to 1000 mm Stroke on request Application : Hydrotester. Plywood Industries. Rubber Industries. Sheet Metal Industries. Steel Plant (AGC). Power Plant. Power Station Sugar and Paper Industries

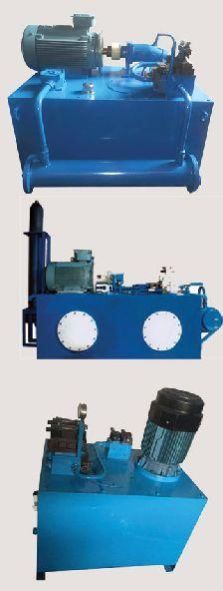

We are a renowned firm engaged in manufacturing and supplying Hydraulic Power Packs. These are available in different capacities, various control options and configurations for a variety of industrial applications. These Power Pack are cost effective and provide maximum productivity & maximum energy saving.   These hydraulic power packs are designed to be user friendly, cost effective, reliable, durable and are customized to suit a variety of needs. Our hydraulic power packs have different salient features and technical specifications.   Technical specifications: Input power - Upto 200 Kw Flow rate - Upto 1200 LPM Pressure - Upto 500 bar Reservoir - Upto 12000 litre Salient features: Tested for best performance before delivery Custom built power units designed to meet specific requirement Manifold designs for minimum pipeline easy installation & maintenance Internationally accepted standard components are used Highly reliable, excellent aesthetic & functional quality Shorter order processing period due to large quantity of components held in stock Application Areas: Steel mills   Machine tools   Hydraulic presses   Power station   Mining Industries   Material-handling   Drilling rings   Steel works   Pipe mills   Hot and cold rolling industries   Paper Industries   Sugar and paper processing machinery   Construction Industries   Hydel Power Plant   Die Casting Machine   Sheet Metal Industries   Rubber Industries and other as per customer requirement..

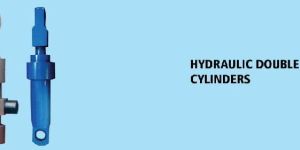

We offer high quality Hydraulic Double Acting Cylinders that hold a huge demand among the clients. Under this range, we provide welded construction & tie rod type cylinders. These are used when equal displacement is needed on both sides of the piston or when it is mechanically advantageous to couple a load to each end. Range of Hydraulic Cylinders:   Bore Dia : 40 MM to 600 MM (option upto 1000 MM) Stroke : 6000 MM (option upto 9000 MM) Pressure: 70, 140, 250, 315 BAR (option upto 350, 700 BAR) Temperature : 20 Degree C to 80 Degree C (option upto 200 Degree C) Mounting Styles ::Differential type, The rod construction type, Mill type ( Rear flange mounting, Front flange mounting, Female Rear clevis mounting, Rear male clevis mounting, Rear male clevis with articulating bearing, Foot mounting, Front Trunion mounting, Centre trunion extended tie-rod mounting etc

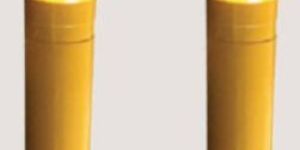

With vast industry experience, we are engaged in offering high quality Single Acting & Telescopic Hydraulic Cylinders. These products are manufactured using premium quality components sourced from trusted vendors of the industry. Further, we ensure that these are made in compliance with the international quality standards. Under this category we also offer: Single acting: Usually limited to very small, short stroke cylinders used for holding & clamping. The length needed to contain the return spring makes them undesirable when a long stroke is needed Telescopic: These are available with up to 5 to 6 sleeves. Its collapsed length is shorter than standard cylinders. It is available for either single or double acting. We can manufacture up to 300 tons capacity Ram diameter - 25 mm to 1000 mm Stroke - 15000 mm Types of Single Acting Cylinder - Spring return - Single acting cylinders are usually limited to very small and short stroke cylinders used for holding & clamping. The length needed to contain the return spring makes them undesirable when a long stroke is needed. Gravity return (ram type) � It contains only one fluid chamber. This type of cylinders is usually mounted vertically. The weight of the load retracts the cylinder. Sometimes known as �displacement cylinders�, these are practical for long strokes.

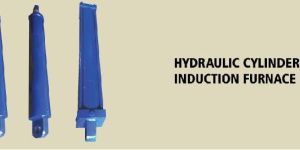

We manufacture Induction Furnace Hydraulic cylinder used in various types of Steel Plants for tilting. (a) Tie Rod Construction (Double Acting) (b) Welding Construction (Single Acting) Capacity : 50 Kg to 45 Ton and Above

Material - St52 Delivery Condition : Honed / Skived, Stress released BK+S Diameter : ID 20mm to 400 mm (Above on request) Length : Upto 5.8 meters (Above on request) Types : Seamless, Cold Drawn Straightness : 0.5 / 1000 Roughness : Ra 0.2 – 0.4u Tolerance EXT : DIN 2391 Tolerance INT : ISO H8

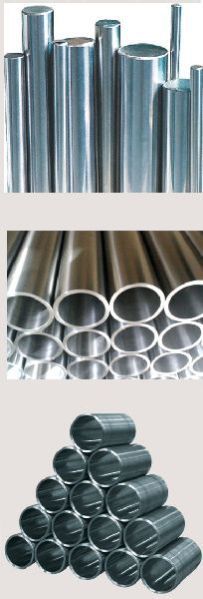

Hard Chrome Plated Bar for Hydraulic Cylinder, Pneumatic Cylinder and other Industrial application. Rod Specification : - Material - CK-45 / EN8-D / Etc. Diameter : 6mm to 500 mm (Above on request) Length : maximum 6 meters (Above on request) Chrome Thickness : 20 micron minimum (Above on request) Hardness of the chrome layer : 800HV minimum (55 to 65 HRC) Roughness : Ra < 0.2u Straightness : < 0.2/1000 Diameter Tolerance : ISO f7

Hard Chrome Plated Bar for Hydraulic Cylinder, Pneumatic Cylinder and other Industrial application. Rod Specification : - Material - CK-45 EN8-D Etc. Diameter : 6mm to 500 mm (Above on request) Length : maximum 6 meters (Above on request) Chrome Thickness : 20 micron minimum (Above on request) Hardness of the chrome layer : 800HV minimum (55 to 65 HRC)

We manufacture Standard Trippler cylinder which is a material handling Cylinder used in different projects and various millls for unloading of Coal, Limestone, Sugarcane etc. We supply Single Acting & Double Acting Hydraulic Truck Trippler Cylinder Capacity : Upto 300 Ton & above Stroke : Upto 10 mtr & above Application Area : Cement plant Sugar Plant Glass Industries Fertiliser, chemical Plant Steel Plant Power Plant Other industries.
