Pack Seals Engineering Shastri Nagar, Ghaziabad, Uttar Pradesh

Recommended Applications  Process industry  Petrochemical Industry  Chemical Industry  Power Plant Industry  Pulp and Paper Industry  Centrifugal pumps  Agitators  Displacement pumps  Conveying pulp with stock pumps  Conveying timber to refiners with pumping screws  Circulation of pulp-and-water mixtures in storage vessels  Pump stations for waste water treatment  Cooling water pumps for energy generation Materials  Seal face: Carbon graphite antimoniny impregnated (A), Silicon carbide (Q6)  Seat: Silicon carbide (Q6)  Secondary seals: FKM (V), EPDM (E), NBR (P)  Springs: CrNiMo steel (G)  Metal parts: CrNiMo steel (G)

Material : Cold Rolled Steel

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : Fully split single seal, 2 x 2 segments, pre-assembled, Semi-cartridge, Balanced, Stationary springs, Bi-directional, External pressurization, Built-in flushing connections, Installation and wear control

Recommended Applications  Water and waste water technology  Refining technology  Dirty, abrasive and solid containing media  Fugitive hydrocarbons (no API seal!)  Sticky and stringy media  Chemical standard pumps  Sewage pumps   Materials  Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1)  Seat: Silicon carbide (Q1)  Secondary seals: FKM (V), NBR (P), FFKM (K), PTFE (T)  Springs: Hastelloy® C-4 (M)  Metal parts: CrNiMo steel (G)

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : Single seal, Balanced, Independent of direction of rotation, Stationary springs, Dual seals in tande

Recommended Applications Chemical industry Process industry Acids Alkaline solutions Salt solutions Low viscosity oils Monomers Hydrocarbons Water Seawater Process pumps Materials Seal face: Carbon graphite resin impregnated (B), High density carbon graphite Seat: Silicon carbide (Q1) Secondary seals: FKM (V) Metal parts: CrNiMo steel (G)

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : Single seal, Balanced, Independent of direction of rotation, Rotating multiple springs

Materials  Seal rings: Blister resistant carbon, Silicon carbide SSiC (Q1), RBSiC (Q2)  Mating rings: Silicon carbide SSiC (Q1), RBSiC (Q2)  Secondary seals: FKM (V), FFKM (K), EPDM (E), NBR (P)  Springs: Hastelloy® C-276 (M5)  Metal parts: CrNiMo steel 316 (G), Duplex (G1)   Recommended Applications  Refining technology  Oil and gas industry  Petrochemical industry  Chemical industry  Power plant technology  Light volatile hydrocarbons  LPG plants  API 610 / ISO 13709 pumps  Process pumps

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Surface of Application : Industrial

Type : Industrial Seals

Country of Origin : India

Feature : API 682 Category 2 and 3, Type A, Arrangement 3 seal, Dual seal in face-to-face arrangement, Same size of inboard and outboard seal, Balanced, Cartridge unit, Stationary multiple springs, Solid seal faces

Materials  Seal rings: Blister resistant carbon  Mating rings: Silicon carbide SSiC (Q1), RBSiC (Q2)  Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)  Springs: Hastelloy® C-4 (M)* and C-276 (M5)  Metal parts: CrNiMo steel 316 (G) or equivalent, optional materials on request. Recommended Applications  Refining technology  Petrochemical industry  Chemical industry  Oil and gas industry  Media with gaseous leakage  API 610 / ISO 13709 pumps  Process pumps

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Surface of Application : Industrial

Feature : API 682 Category 2 Und 3, Type A, Arrangement 2 Seal, Dual Seal In Face-to-back Arrangement, Cartridge Unit, Rotating Multiple Springs, Dry Non-contact Outer Seal (containment Seal)

Type : Industrial Seals

Country of Origin : India

Materials   Seal face: High density carbon graphite (B)  Seat: Silicon carbide (Q1)  Secondary seals: FKM (V)  Metal parts: 1.4401 (G) Recommended Applications  Chemical industry  Refining technology  Petrochemical industry  Lubrication oil  Light oil  Gasoline  Naphtha  Water  Process pumps

Material : Cold Rolled Steel

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : Single seal, Balanced, Independent of direction of rotation, Stationary multiple springs

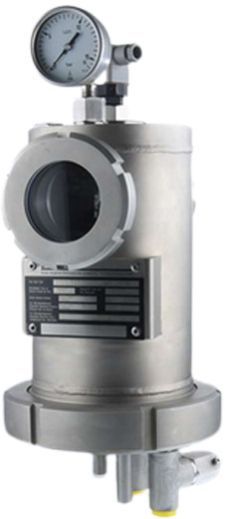

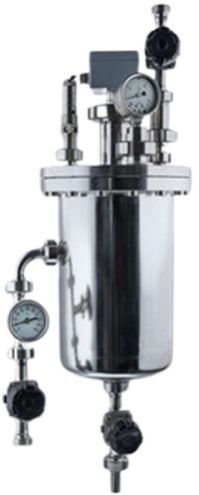

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:  to pressurize the buffer chamber  leakage compensation  buffer/barrier fluid is circulated by thermosiphon effects  to cool the seal  to selectively absorb product leakage and prevent dry running (tandem arrangement) Use compressed air or nitrogen for pressurization; pressurization is monitored by a pressure switch. The incorporated level switch issues a signal whenever the level of buffer/barrier fluid is too low. Recommended Applications  Refining technology  Oil and gas industry  Chemical industry  Petrochemical industry

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Application : Industrial

Country of Origin : India

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:  to pressurize the buffer chamber  leakage compensation  buffer/barrier fluid is circulated by thermosiphon effects  to cool the seal  to selectively absorb product leakage and prevent dry running (tandem arrangement) Use compressed air or nitrogen for pressurization.   Recommended Applications  Chemical industry  Petrochemical industry  Oil and Gas industry  Refining technology  Oil and gas industry

Material : Cold Rolled Steel

Shape : Round

Color : Silver

Application : Industrial

Country of Origin : India

Recommended Applications  Process industry  Oil and gas industry  Refining technology  Petrochemical industry  Chemical industry  Pharmaceutical industry  Power plant technology  Pulp and paper industry  Water and waste water technology  Mining industry  Building services industry  Food and beverage industry  Shipbuilding  Sugar industry  Metal production and processing Materials Seal face: Silicon Carbide (Q1, Q2)  Seat: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)  Secondary seals: EPDM (E), FKM (V), FFKM (K)  Springs: CrNiMo steel (G)  Metal parts: CrNiMo steel (G)

Material : Cold Rolled Steel

Shape : Round

Specialities : Stationary Springs,Balanced,Independent Of Direction Of Rotation,Independent Of Pressure Direction

Type : Industrial Seals

Country of Origin : India

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:  to pressurize the buffer chamber  leakage compensation  buffer/barrier fluid is circulated by thermosiphon effects  to cool the seal  to selectively absorb product leakage and prevent dry running (tandem arrangement) Use compressed air or nitrogen for pressurization.   Recommended Applications  Chemical industry  Pharmaceutical industry  Food and beverage industry  Refining technology  Oil and gas industry

Material : Cold Rolled Steel

Shape : Round

Color : Silver

Application : Industrial

Country of Origin : India

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:  to pressurize the buffer chamber  leakage compensation  buffer/barrier fluid is circulated by thermosiphon effects  to cool the seal  to selectively absorb product leakage and prevent dry running (tandem arrangement) Use compressed air or nitrogen for pressurization.   Recommended Applications  Food and beverage industry  Pharmaceutical industry  Chemical industry  Functional Description

Material : Cold Rolled Steel

Shape : Round

Application : Industrial

Country of Origin : India

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:  to pressurize the buffer chamber  leakage compensation  buffer/barrier fluid is circulated by thermosiphon effects  to cool the seal  to selectively absorb product leakage and prevent dry running (tandem arrangement) In addition to performing the basic functions of a buffer system, the TS3000 system can also be used to make condensate, provided the TS system is connected up to a steam pipe.   Recommended Applications  Food and beverage industry  Pharmaceutical industry

Material : Cold Rolled Steel

Shape : Round

Application : Industrial

Country of Origin : India

Materials Seal face: Silicon carbide (Q1, Q2), Carbon graphite antimony impregnated (A), Aluminium oxide (V), CrMo cast steel (S) Seat G9: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1*, Q2*) Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K) Springs: CrNiMo steel (G) Metal parts: CrNiMo steel (G), Duplex (G1) * Cannot be combined with seal face made of S Recommended Applications Process industry Oil and Gas Industry Refining technology Petrochemical industry Chemical industry Power plant technology Pulp and paper industry Food and beverage industry Hot water applications Light hydrocarbons Boiler feed pumps Process pumps

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : For stepped shafts, Single seal, Balanced, Super-Sinus-spring or multiple springs rotating, Independent of direction of rotation, Integrated pumping device available (H7F, H75F), Variant with seat cooling available (H75G115)

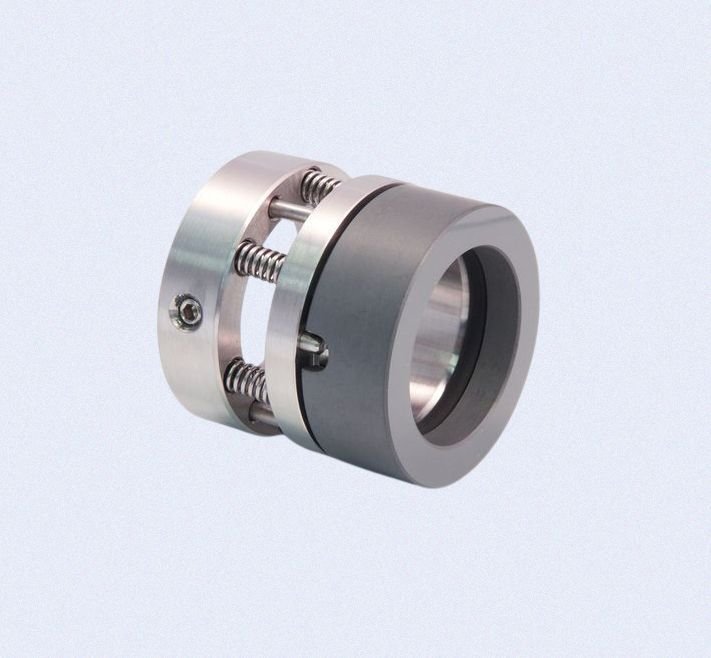

Type PS - 288 Multi Spring Reversed Balanced Seal is externally mounted internally balanced multi-coil spring seal. The unique feature of this type of seal is that, it eliminates the shaft step or sleeves for balancing. These seals are externally mounted & hence the metal parts including the springs do not come in contact with the circulating media & therefore can be use for corrosive or abrasive media. sealing. The compact design eliminates the requirement of extra radial & axial space for its installation.   Material Seal Faces :- Sic/carbon Vs Ceramic/Sic./TC Secondary Seals :- Viton/PTFE/GFT Metal Components :- SS-316

Material : Cold Rolled Steel

Finishing : Polished

Type : Industrial Seals

Country of Origin : India

Recommended Applications  Refining Technology  Power Plant Technology  Chemical Industry  High and low temperature hydrocarbon services  Residual oil  Gas oil  Low temperature ethylene  Pumps  Special rotating equipment   Materials  Seal face: High density carbon graphite  Seat: Silicon carbide (Q2)  Bellows: Inconel® 718 (M6)  Secondary seals: Graphite  Metal parts: 1.4404, Carpenter® 42 (T4)

Material : Cold Rolled Steel

Shape : Round

Country of Origin : India

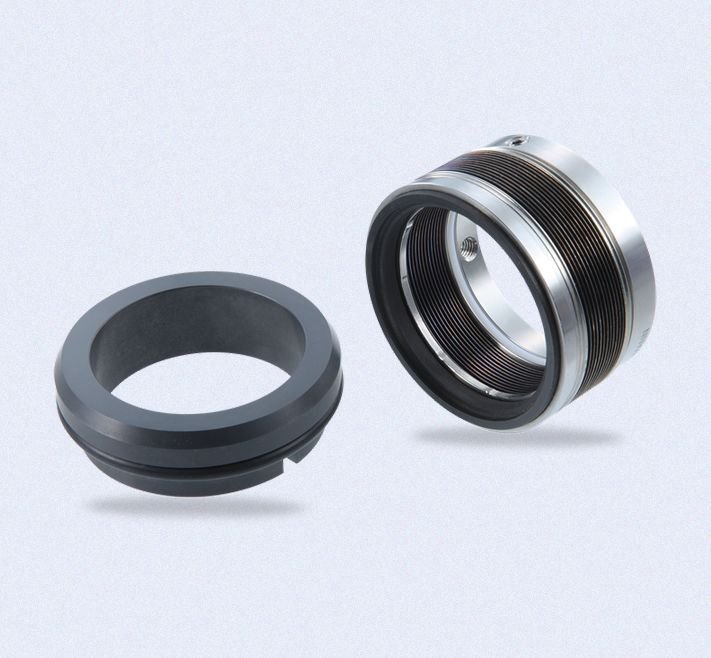

Materials Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)  Seat: Silicon carbide (Q1)  Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)  Metal parts: CrNiMo steel (G), Duplex (G1), Hastelloy® C-4 (M)   Recommended Applications  Process Industry  Oil & Gas Industry  Refining Technology  Petrochemical Industry  Chemical Industry  Hot Media  Cold Media  Highly Viscous Media  Pumps  Special Rotating Equipment

Material : Cold Rolled Steel

Type : PS250N Metal Bellows Seals

Thickness : 1-5mm

Country of Origin : India

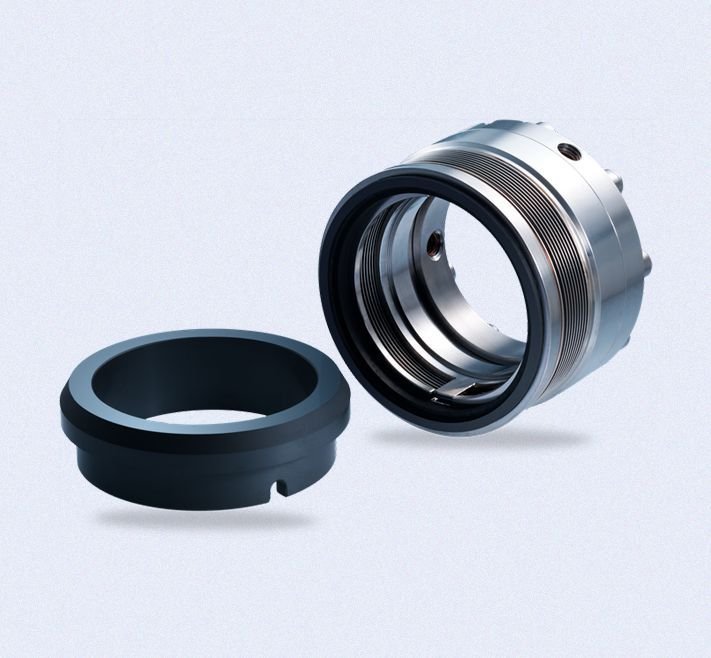

Materials  Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)  Seat: Silicon carbide (Q1)  Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)  Metal parts: CrNiMo steel (G), Hastelloy® C-4 (M) Recommended Applications  Process Industry  Oil & Gas Industry  Refining Technology  Petrochemical Industry  Chemical Industry  Cold Media  Highly Viscous Media  Pumps  Special Rotating Equipment

Material : Cold Rolled Steel

Shape : Round

Country of Origin : India

Materials  Seal face: Silicon Carbide (Q2), CrMo cast steel (S)  Seat: Carbon graphite resin impregnated (B), Silicon carbide (Q2)  Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K), coated (M)  Springs: CrNiMo steel (G)  Metal parts: CrNiMo steel (G) Recommended Applications  Process industry  Oil and gas industry  Refining technology  Petrochemical industry  Chemical industry  Pharmaceutical industry  Power plant technology  Water and waste water technology  Mining industry  Building services industry  Food and beverage industry  Shipbuilding  Sugar industry  Metal production and processing

Material : Cold Rolled Steel

Specialities : External Configuration Balanced Independent Of Direction Of Rotation Independent Of Pressure Direction

Type : Industrial Seals

Country of Origin : India

Recommended Applications  Water and waste water technology  Drinking water  Chemical industry  Oil and Gas  Petrochemical industry  Refining technology  Standards And Approvals  EN 12756  Pulp and paper industry  Power plant technology  Mining industry  Metal production and processing  Special applications (Cement, ...)  Shipping Industry Materials  Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin   impregnated   (B), Silicon carbide (eSIC-Q7)  Seat G6: Silicon carbide (eSIC-Q7)  Secondary seals: E, EL, V, V16, K, KL, P  Springs: CrNiMo steel (G)  Face housing: CrNiMo steel (G)  Driver: Duplex (G1)

Material : Cold Rolled Steel

Shape : Round

Type : Industrial Seals

Country of Origin : India

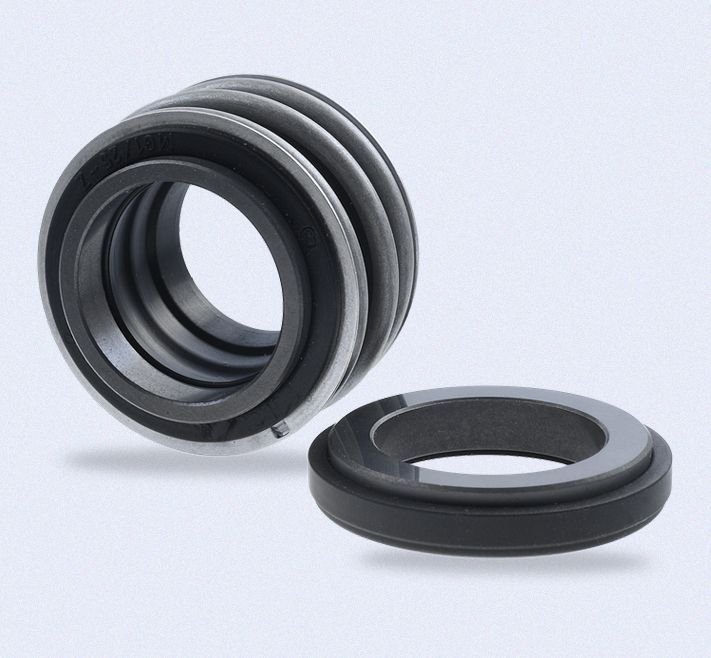

Materials  Seal face: Carbon graphite antimony impregnated (A), Carbon graphite   resin impregnated (B), Silicon carbide (eSiC-Q7, Q1)  Seat: Silicon carbide (eSic-Q7,Q1)  Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)  Metal parts: CrNiMo steel (G), Hastelloy® (M)     Recommended Applications  Fresh water supply  Building services engineering  Waste water technology  Food technology  Sugar production  Pulp and paper industry  Oil industry  Petrochemical industry  Chemical industry  Water, waste water, slurries (up to 5 % by weight)  Pulp (up to 4 % otro)  Latex  Dairies, beverages  Sulfide slurries  Chemicals  Oils  Chemical standard pumps  Helical screw pumps  Stock pumps  Circulating pumps  Submersible pumps  Water and waste water pumps

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi

Materials Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1) Seat: Silicon carbide (eSic-Q7, Q1) Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4) Metal parts: CrNiMo steel (G), Hastelloy® (M)   Recommended applications Fresh water supply Building services engineering Waste water technology Food technology Sugar production Pulp and paper industry Oil industry Petrochemical industry Chemical industry Water, waste water, slurries (solids up to 5 % by weight) Pulp (up to 4 % otro) Latex Dairies, beverages Sulfide slurries Chemicals Oils Chemical standard pumps Helical screw pumps Stock pumps Circulating pumps Submersible pumps Water and waste water pumps

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of direct

Materials  Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin   impregnated (B), Silicon carbide (Q1, eSiC-Q7)  Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)  Elastomer: NBR (P), EPDM (E), FKM (V),HNBR (X4)  Metal parts: CrNiMo steel (G), Hastelloy® (M)  Further materials upon request.   Recommended Applications  Fresh water supply  Building services engineering  Waste water technology  Food technology  Sugar production  Pulp and paper industry  Oil industry  Petrochemical industry  Chemical industry  Water, waste water, slurries (solids up to 5 % by weight)  Pulp (up to 4 % otro)  Latex  Dairies, beverages  Sulfide slurries  Chemicals  Oils  Chemical standard pumps  Helical screw pumps  Stock pumps  Circulating pumps  Submersible pumps  Water and waste water pumps  Oil applications

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi

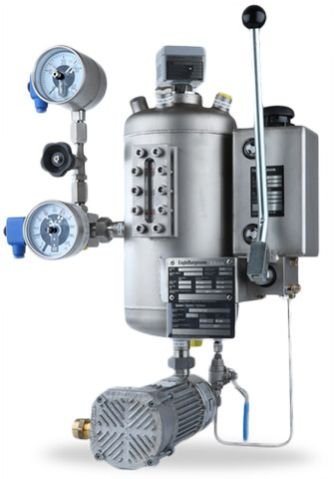

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:  to pressurize the buffer chamber  leakage compensation  buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system  to cool the seal  to selectively absorb product leakage and prevent dry running (tandem arrangement)  Use compressed air or nitrogen for pressurization.   Recommended Applications  Chemical industry  Petrochemical industry  Oil and gas industry  Food and beverage industry  Refining technology Functional Description

Material : Cold Rolled Steel

Country of Origin : India

Recommended Applications Pulp and paper industry Water and waste water technology High-viscosity liquids Pulp suspensions Process pumps Pulp pumps Materials Seal face: Silicon carbide (Q1) Seat: Silicon carbide (Q1) Secondary seals: EPDM (E), FKM (V) Metal parts: CrNiMo steel (G)

Material : Cold Rolled Steel

Finishing : Polished

Shape : Round

Type : Industrial Seals

Country of Origin : India

Specialities : Single seal, Unbalanced, Independent of direction of rotation, Positive torque transmission due to bayonet drive between seal head and drive collar, O-Ring groove for ventilation prevents solids build-up and enhances flexibility
