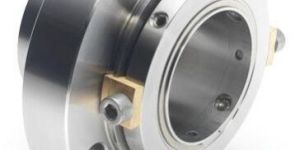

Single Cartridge Mechanical Seal Dealers in Ghaziabad

• Material: Stainless Steel
• Pressure: P1 = 25 Bar (363 PSI)
• Surface of Application: Industrial
• Packaging Type: Packet
• Sealing Type: Single Spring
• Shaft Diameter: d1 = 25 … 100 mm (1.000″ … 4.000″) Other sizes on request
• Temperature: t = -40 °C … 220 °C (-40 °F … 428 °F) (Check O-Ring resistance)
• Sliding velocity: vg = 16 m/s (52 ft/s)

Advantages Ideal seal for standardizations Universal applicable for packings conversions, retrofits or original equipment No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height No damage of the shaft by dynamically loaded O-Ring Extended service life Straightforward and easy installation due to pre-assembled unit Individual adaptation to pump design possible Customer specific versions available Operating range Cartex-SN, -SNO, -QN, -TN, -Vario   Shaft diameter: d1 = 25 … 100 mm (1.000″ … 4.000″) Other sizes on request Temperature: t = -40 °C … 220 °C (-40 °F … 428 °F) (Check O-Ring resistance)   Sliding face material combination BQ1 Pressure: p1 = 25 bar (363 PSI) Sliding velocity: vg = 16 m/s (52 ft/s)   Sliding face material combination Q1Q1 or U2Q1 Pressure: p1 = 12 bar (174 PSI) Sliding velocity: vg = 10 m/s (33 ft/s)   Axial movement: ±1.0 mm, d1 ≥75 mm ±1.5 mm   Materials Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2) Seat: Silicon carbide (Q1) Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1) Springs: Hastelloy® C-4 (M) Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)   Recommended applications Process industry Petrochemical industry Chemical industry Pharmaceutical industry Power plant technology Pulp and paper industry Water and waste water technology Mining industry Food and beverage industry Sugar industry Universally applicable Centrifugal pumps Eccentric screw pumps Process pumps

• Material: Cold Rolled Steel
• Finishing: Polished
• Shape: Round
• Type: Industrial Seals
• Country of Origin: India

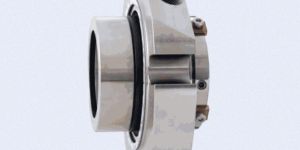

• Specialities: Single seal, Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or thr
• Advantages: Ideal for use in ANSI process pumps, Universal applicable for packings conversions, retrofits or ori
• Operating range: Cartex-ASPN, - ABPN, -ASTN, -ABTN, -ASQN, -ABQN, Shaft diameter: d1 = 1.000" ... 3.750", Other size

Materials Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2) Seat: Silicon carbide (Q1) Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1) Springs: Hastelloy® C-4 (M) Metal parts: CrNiMo steel (G) Recommended applications Process industry Petrochemical industry Chemical industry Pharmaceutical industry Power plant technology Pulp and paper industry Water and waste water technology Mining industry Food and beverage industry Universally applicable ANSI process pumps
