Stranding Machine Dealers in Ghaziabad

• Wire range: 1.5mm to 4.5mm

Rigid cage stranding machines are another very high speed machine with the ability to produce multiple wire combination strands of Copper or Aluminum in one pass.The machine is constructed with a line of independently geared and reversible rotating cages or sections that rigidly hold the bobbins in multiples of 6 and pay-off while rotating.

We are engaged in providing a superior range of Cage Type Stranding Machine to our clients. Our range is based on advanced technology and quality raw materials. These are especially designed for high speed production of P. C. G. I. Wires.

the tubular stranding machine consists of bearing stands made of welded steel for the tube bearings. Up to reel size of 630mm .the stranding rotor is built up from welded tubes with wire guidings outside the tube. The reels are held in cradles, which are positioned inside the tube. A light beam along the complete length of the machine monitors, if the pneumatically (optional)operated reel-pintles are securely closed and the cradles are in safe condition. The machine is equipped with wire break detectors for each segment, pneumatic disk-breaks and individual drives for the stranding rotor, the capstan and the take-up. The operator's desk gives full control over parameters like rotor-speed, lay-length and production length. usage: it is used for the production of: copper, aluminum, aluminum alloy strand, overhead strands main features: • machine placed on a rigide steel frame with rotor support, fixed on the floor for an easy installation• tube rotating on encircling bearings or rollers• machine able to work in torsion or total back twist with the possibility of partial back twist• wire back tension kept constant from full to empty spool payoff• wire/strand break detector for each payoff unit(optional)• spool loading/unloading by crane• pneumatic pintles equipped with safety locking system• independent driving motors for tube, capstans and takeup units• a.c. Motors with flux vector control inverter

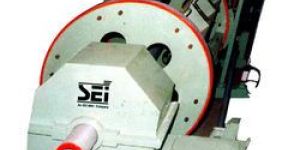

Armouring cum core laying machine / Rigid Stranding Machine (Tubular Stranding) and all Wire and Cable making machines are provided with under rollers with double ball bearings with each carriage, main hallow shaft supported. zoom The Armouring cum core laying machine / Rigid Stranding Machine (Tubular Stranding) and all Wire and Cable making machines have self aligned spherical roller bearings on ends, fine locking and tension device that provide on cradle pintle

tubular stranding machines, Wire Drawing Machines, wet drawing machines

66+1 Skip / Bow Stranding Machine, PVC PIPE MAKING PLANT, Bunching Machine

Cage Type Stranding Machine, Strand Annealing Furnace, Wire Drawing Machine

Stranding Armoring Machine, Wire Armoring Machine
