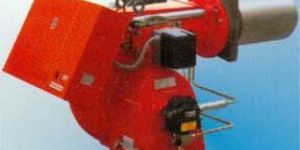

Two Stage Progressive or Modulating Oil Burners / P 140·200·300·450 PIG Series The PIG burner series are available in four model structures with an output range from 415 to 5.340 kW The PIG Series is characterized by progressive two stage operation as standard or full modulating performance, with a turn down ratio of 4:1 ,by addition of an advanced modulating control system (PID). The versatility of this range makes the burners well suited for use on commercial or industrial applications where the load factor is subject to wide variations over a short period of time. All models are available in standard or long head versions, making them suitable for diverse applications. The burners are designed and tested to conform to European norm EN 267 & DIN 4787

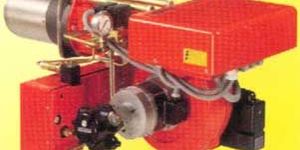

Two Stage Operation / Press 30·45·60·100 N Series This series of fuel oil burners comprises of four models with firing rates from 168 to 1120 kW and has been specifically developed to serve moderately pressurized or negative draft applications. Offering low fire start or two stage operation, the burners are designed for use with fuel oil upto 3.5°E but the 60N and 1 OON models can be adapted for use with heavier grades- upto a maximum of 65°E at 5CfC

Three Stage Operation / P 140,200,300,450 T/G Series     The P- TG series comprises of four models with firing rates from 355 to 5340 kW They have been designed for use with Light oil and all models offer three stage firing with three oil nozzles and Hydraulically controlled, rapid response air dampers which in addition to regulating the combustion air at each firing rate, close fully on burner shut down. Finger tip control enables the plant operator to select the firing rate to match his needs and the P- TG burners have been found particularly suitable for installations where the load factors vary, but are predictable.

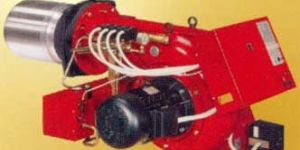

Three Stage Heavy Oil p·T/N Series / Modulating p.p IN Series The P 140-200-300- 450 TIN series burners are available in four model structures with an output range from 320 to 5130 kW. The versatility of this range makes the burners ideal for use on commercial or industrial installations where the load factors may very but are predictable. The P-P/N series comprises of four models with firing rates from 400 to 5130 kW. Supplied as progressive two stage burners as standard, the addition of an advanced modulating control system gives fully modulating performance.

The Riello Gulliver BS series gas burners represent the latest evolution in gas combustion techniques. The series comprises of four single stage models (BS) and four two stage models (BS D) with firing outputs ranging from 16 to 246 kW All the burners guarantee combustion performance with pollutant emissions well within the strictest regulations, and each burner comes equipped with its own gas train.

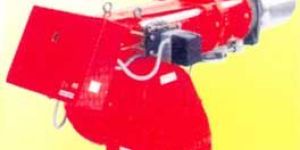

Progressive Two Stage Modulating Gas Burners / Gas 3·7 P/M & Gas 8·10 P/M   The Gas 3-7 P/M burner series is available in five model structures with an output range from 80 to 1.760 kW Whereas the 8-9-10 P/M is available in three model structures with an output range from 640 to 4.885 kW The P/M series is characterized by progressive two stage operation as standard or full modulation performance with a turn down ratio of 4:1, by addition of an advanced modulating control system ( PID). The versatility of this range makes the burner well suited for diverse applications

The Riello 40 G Series oil burners are available in 8 models with output from 12 to 240 kW. Highly reliable and efficient, these burners come with Electrical Protection rating of IP40. They have been designed and tested to conform to European norm EN 267 and DIN 4787.

Salient Features :1) Fully automatic instant steaming.2) Easy operation fail proof system.3) Record officiency.4) Packaged models in unitised design. It is the first design in coil type Non - IBR boilers. Incorporating unique revolutionary principle of combustion known as " Reverse Flow " which increases combustion efficiency & allows high rate of heat flux & increases the efficiency of whole system. The boiler is also comprising of an atmospheric economizer to preheat the incoming feed water to boiler.

Low Nox One and Two Stage Gas Burners / Gulliver BS & BS D Series The Riello Gulliver BS series gas burners represent the latest evolution in gas combustion techniques. The series comprises of four single stage models (BS) and four two stage models (BS D) with firing outputs ranging from 16 to 246 kW All the burners guarantee combustion performance with pollutant emissions well within the strictest regulations, and each burner comes equipped with its own gas train.

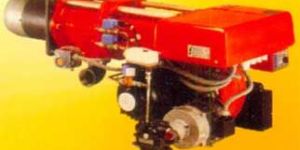

Gas Light Oil Burners / GI / EMME Series The GI/EMME model 200 is a low fire start burner range rated from 128 to 256 kW while Model 300 is rated from 175 to 350 kW. The GI/ EMME 400-600-900 two stage series comprises of three models with firing rates from 232 to 1045 kW. The GI/EMME 1400-2000-3000-4500 progressive two stage modulating burners give firing rates from 630 to 5000 kW, with high maintainable efficiencies using either fuel. All units are equipped with a "double motor" feature which allows for the total shut down of the oil burning circuitry during operation on gas, and the flame presence is monitored by an advanced control, designed to deal with either fuel.

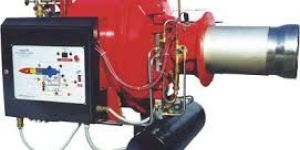

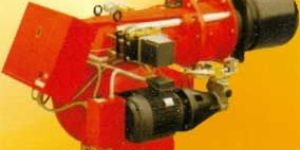

Gas Heavy Oil Burners / ENNE / EMME Series Offering progressive high/low or fully modulating operation this technically advanced series of Dual Fuel burners give firing rates from 630 to 5000 kW, with high maintainable efficiencies, using either fuel. supplied as progressive two stage. burners as standard, full modulation may be achieved, with a turn down ratio of 4:1 by the Addition of a sophisticated modulating control system. In this mode, these burners have been found particularly suitable for use on commercial and industrial installation where the load factor is subject to wide variations over a short time span. On oil side, correct automizing temperature is provided from the special modular plate type pre-heater. All units are equipped with a "Double Motor" feature which allows for the total shut down of the oil burner circuitry during operation on gas.

Neotech's Nanomatic' Steam Generators are offered in 3 sizes namely 35, 50 & 100 kgshr, These units are offered in compat design & are offered with imported World Class Monoblock Burners. These Boilers are extremely efficient & work in the vicinity of 90 % efficiency.

The GIEMME model 200 is a low fire start burner range rated from 128 to 256 kW while Model 300 is rated from 175 to 350 kW. The GI EMME 400-600-900 two stage series comprises of three models with firing rates from 232 to 1045 kW. The GIEMME 1400-2000-3000-4500 progressive two stage modulating burners give firing rates from 630 to 5000 kW, with high maintainable efficiencies using either fuel. All units are equipped with a "double motor" feature which allows for the total shut down of the oil burning circuitry during operation on gas, and the flame presence is monitored by an advanced control, designed to deal with either fuel.

Two Stage Oil Burners / RG-D Series / RG Series- One Stage Oil Burners The Riello Gulliver RG design incorporates advanced technology that permit combustion to be optimized especially during ignition cycle and shut down. With a range that goes from 14.2 kW upto 237 kW with 9 one stage burner models, Riello has designed a product in which every component is easily accessible in order to simplify maintenance operations to the maximum. Air supply can be adjusted from outside the body through a screw positioned on the upper part of the burner. One of the most important characteristics of this series consist in a variable resistance pre-heater. Possessing all the qualities of the one stage RG Series, the two Stage RG-D series goes from 14.2 kW upto 294 kW 5two stage Burner models.
