Wire Making Machines Dealers in Bulandshahr Road Industrial Area, Ghaziabad

Wet MachinesMulti hold sub – merged type Wet Drawing Machine designed for all ferrous & non – ferrous metals in the range of 9/11/13/15/19/17/21/25 dies or as per Customer requirements with variable drives & speed. Rod Breakdown MachinesOur range of rod break down machine is manufactured as per the latest International usages. We also have facility to customize our range according to the client's requirements. These are available in various specifications, some of them are designed 9/11/13 die for aluminium and copper wires along with spooling machine and dead block coiler.

We offer a superior range of Wire Flattening Machines to our clients, which is manufactured using best grade raw materials and advanced technology. These machines are suitable of both ferrous and non-ferrous Wires. We offer our range in various specifications that meet the individual requirement of our clients.

• Features: High operational fluency, Low power consumption, Require less maintenance

We offer complete range of Wire Flattening Mills for both Ferrous and Non-Ferrous Wires. Though most features of our mills are standard, we can produce entire line as per the exact production requirements of the customers. Besides this, we also offer the complete line of accessories that are used with Wire Flattening Mills.

The OTO type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of low,medium and hi-carbon material, especially for mild steel wire, spring steel wire,  welding wire and copper wire aluminum wire, etc.   Scope Of Application: Welding wire, welding electrode, galvanized iron wire, binding wire, copper wire. Usage: The set of the machine is ideal equipment for drawing wire stock of high, medium and carbon steel, as well as copper, aluminum and alloy. The machines are supplied for drawing wire in the factories such as steel wire factory, metal mesh factory and nail making factory etc. Structure: The equipment consists of main reduction gear box.die casing box, drawing capstan  and electrical control system. The drawing blocks are vertically fixed in fabricated mild steel body. The gears are lubricated with oil. In order to lower residual heat on the surface of the block, the drawing capstans and die boxes are water cooled and air cooled Machine Features Each unit of OTOmachine is equipped with diebox.The drum interior water-cooling is designed with high efficiency circulation and spiral, fully filled water paths.The dieboxes employs a forced and direct circulation water cooling system.This model is suitable for wire coiling operations for low/middle/high carbon wire.Transmission System –Worm and Worm wheel type gear systemsMode of speed adjustment AC frequency conversion control   Optional Features Stripper blockRotating die holder Soap boxes with stirrersDie take- up cassettesDust suction systemsEnvironmental guardingWire diameter measuring heads

• Brand Name: Shivas
• Voltage: 240V
• Max Inlet Wire Diameter: 0-3 mm
• Frequency: 50Hz
• Application: Industrial
• Automatic Grade: Automatic

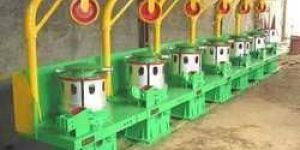

• Type: Dry Wire Drawing Machines
• Features: high performance, low maintenance , long working life

• diameter: 0,12mm

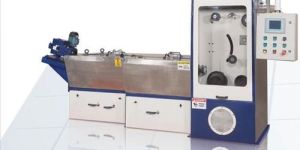

The wet draw machine is a slip type, straight line wire drawing machine which has become the standard of the industry for the production of carbon and alloy steel wires along with non ferrous wires. The wire enters the machine through the inlet by guide pulleys, through the first die and will exit the drawing compartment through the final die.Dies can be fully submerged. The die-holders are machined from solid steel. Optionally the machine is equipped to spray wet-lube directly into the die and onto the drawing capstans By doing this we do not have to wait for the tank to fill before we can start the line.

We are an unparalleled name in offering a premium quality range hydraulic crimping curve machine. The offered machine is manufactured under the guidance of skilled professionals using optimum grade components as per the set industry norms at our well-equipped manufacturing site. We offer this machine in different specifications to meet the varied needs of clients within stipulated time-frame in excellent packing options. features: smooth functioning compact size long operational life

BLOCK AND COOLING SYSTEM : Drawing drums are forged alloy steel,fully hardened and ground.Surface hardness:58-60 HRC. Drums are internally water cooled with narrow gap system.Complete wetting of wall by highly tubulent motion of water,higher cooling effect with increasing drawing speeds. Drums are externally cooled by air from a single common blower through duct forming part of machine frame. DIES BOXES : Dies are direct water cooled from a separate manifold.Dies are loaded from top for quick fixing. Motorized rotating die holders can be provided; extra long to adopt standard pressure dies. Die boxes are equipped with motorized lubricant stirrer. Rotating die holders have single motor for stirrer and holder. Die boxes are adjustable in horizontal and vertical plane for cast and helix adjustment of wire. Die boxes are suitable for dry lubricants, large enough to store sufficient quantity of lubricant. SPEED CONTROL : Speed regulation of each block is achieved through self centering sensor arm on which the wire is guided. SAFETY GUARD : Well balanced sheet metal guards,with transparent shet/wire mesh to see through condition of machine,are provided. Guards are electrically interlocked not to allow running of machine with open guards. Sound proof guard for low noise level with suction of burnt powder can be provided. TRANSMISSION : Motion transmission from motor to block shaft is achieved directyl by V belt and pulleys or through helical gear arrangement. INTELLIGENT CONTROLS : Specially designed A.C. Three Phase Inverter Duty/Servo Motors L&T Supernova/Siemens 1ph7 constant torque upto base speed and constant power above base speed. Digital A.C. Three Phase Vector Flux Inverter Drives ABB ACS 800/Siemens Sinaemics provide the system with fastest communication through profibus. All blocks are working with a range of encoder feedback,thermal protection, flux vector controlled. The logic control is attained automatically by PLC system (siemens) automatically calculating reduction rate and mointoring all related dates. Utmost control flexibility allows any drafting programme and drum skipping. HMI displays all function data making it easier for the operator to take control of the machine during production. Displays and memorizes the fault for easy diagnosis. Can be interfaced with remote computer to collect all information. Cubicles are sheet steel enclosures with IP54 protection,duly power coated and with exhaust. Electric control system provides a smooth acceleration from zero to pre-selected value. Normal stop is attained with ramp down control within 15 to 30 secound. Emergency stop/quick stop is attained within 6 to 8 seconds. This can be achieved without a broken wire.

• Automatic Grade: Semi Automatic, Automatic
• Condition: New
• Brand Name: SHIVAS
• Minimum Order Quantity: 1 Unit

• Input Size:: 8.0mm to 5.5mm
• Finish Size:: 4.0mm to 1.6mm
• Final Speeds:: 180 to 425 meters/minute.

We have emerged as one of foremost manufacturers and suppliers of superior quality range of Wire Drawing Machines. These are designed and developed by our professionals using high grade raw material and sophisticated technology in compliance with the set global norms. Our offered machine is highly admired in the market for its enhanced functional life, robust construction and durability. Apart from this, these can be availed in various specifications in order to cater to the varied needs of clients. Moreover, our valuable clients can avail these machines from us at industry leading prices. With the help of adroit technocrats, we are offering our esteemed clients a broad array of Wire Drawing Machines. The offered machines are suitable for straight or deflection free drawing of wire to provide better drawability, lower frictional contact and lower operator interference. These are widely used for drawing material to steel curtain wire, tire bead steel, spring steel, rope manufacturing steel, stainless steel, flux cored, gas shield weld, PC steel and composite wire. These are designed using high quality MS, high carbon steel, stainless steel, aluminum and copper wires in compliance with international standards. Acknowledged for its excellent quality and longer service life, the offered machine can be availed by clients in various specifications.

• Voltage: 220 V
• Automation Grade: Automatic
• Frequency: 50Hz
• Outlet Diameter: 2mm
• Material: Mild Steel
• Power Source: Electric
• Phase: Single Phase

• Brand Name: AE
• Max Inlet Wire Diameter: 3-6 mm
• Operating Mode: Automatic
• Min Finish Wire Diameter: 3-4 mm
• Frequency: 50-60 Hz
