Micanite Insulating Pvt Ltd Isri, Giridih, Jharkhand

Washers made from our own Heat Resisting and Moulding Micanites are used in electro-magnets, micro-sensitive control gear and for many other purposes. They are either cut or die stamped from the sheet material according to the buyer’s specification.

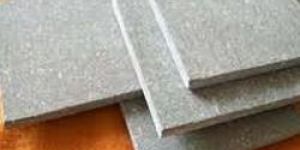

"SYNDANIO SHEETS", is a high grade arc and heat resisting material produced from specially selected and prepared asbestos fiber and cement formed into boards under high pressure.These sheets are available in 4ft x 3.5ft (1200 x 1070mm). A fully equipped machine shop is available for the supply of cut and drilled sheets and fully machined parts to individual requirements.

Mica is most suited for use in thermionic valve bridges, cathode ray tube assemblies, condenser plates, domestic elements, stove plates and washers built up to any thickness. In almost all these applications, mica is die-punched and used as such, or with a coating.

This product is prepared by pasting Muscovite splittings with an alkyd varnish as a binder in a little amount and processing at a very high temperature and high pressure and then grinded .

Mica Paper board is a reconstituted muscovite mica paper, which impregnated, bonded with heat resisting silicone resin. Mica Paper are pressed under heat and high pressure to form rigid sheets. Mica paper Board has good mechanical, electrical and thermal properties. It is hard and rigid, silver- brownish color. Mica Board withstand to 500°C continuous operating temperature. It occurs low smoke on initial heat first time. Applications are base and covers plates for elements for Toasters, Hair dryers, air heater, Electric Irons as well as many domestic appliances heating elements and are also used in Industrial applications. Uses of natural mica, micanite sheet and mica paper board (silicone bonded): Electrical Apparatus Electric Heating Appliances Electrical Control Electrical Lighting Equipment Industrial Electric Heating Appliances Mechanical Uses Miscellaneous Electrical Uses Radio, Radar, Television etc. Motors and Generators Transformers It is also used to separate electrical conductors in cables that are designed to have a fire-resistance rating in order to provide circuit integrity. The idea is to keep the metal conductors from fusing in order to prevent a short circuit so that the cables remain operational during a fire, which can be important for applications such as emergency lighting. Mica discs provides the best protection to spherical view port glasses and perfect visibility for checking the degree of combustion and liquid level in high pressure steam boilers. Mica films are used in the manufacture of silver mica plates used in mica capacitors. Small cut-mica sheets are effectively used as backing plate on both top and bottom sides of mica capacitors to give mechanical potency and inflexibility. Mica is most suited for use in thermionic valve bridges, cathode ray tube assemblies, condenser plates, domestic elements, stove plates and washers built up to any thickness. In almost all these applications, mica is die-punched and used as such, or with a coating. (Therefore making it a favored material for manufacturing capacitors for radio frequency applications. Mica is resistant to heat it is used in windows for stoves and kerosene heaters.) Availability: Mica deposits are found in India, Africa, Brazil, Madagascar, Sri Lanka and China. The principal deposits of Mica in India are found in Bihar, Rajasthan, and Andhra Pradesh. INDUSTRIAL USES Contact Shoes, Suspension Links, Mantle Lower, Protection Shield, Smoke Hood Assembly, Smoke Hood, Smoke Stack, Charging Chutes, Smoke Hood Suspension, Hangers for Pressure Rings etc.

Mica Paper board is a reconstituted muscovite mica paper, which impregnated, bonded with heat resisting silicone resin. Mica Paper are pressed under heat and high pressure to form rigid sheets. Mica paper Board has good mechanical, electrical and thermal properties. Electrical Apparatus Electric Heating Appliances Electrical Control

Heat Resisting Micanite is made from high quality Mica Splitting with the Shellac bond being kept low. The material is made available from both Muscovite and Phlogophite Mica where the maximum working temperature is approximately 500° C and 800° C respectively. Heat Resisting Micanite is used in the manufacture of a wide variety of both domestic and industrial heating applications such as electric iron elements, wound heater elements, cylindrical resistance heaters etc.

Silicon Bonded Mica Sheet laminated using thermosetting resins and mica paper, suitable for use at elevated temperatures.

We are manufacturing products like as Silicon Bonded Mica Tube.

We are engaged in supplying of epoxy bonded mica tube.

we are providing a various types of products such as epoxy bonded mica bush.

The non arching electrical insulating and heat resisting boards called "SYNDANIO SHEETS".

We are one of the famous company, who are manufacturer of syndanio ring.

PTFE Tube s used as a non-stick coating for pans and other cookware. It is very non-reactive, partly because of the strength of carbon–fluorine bonds, and so it is often used in containers and pipe work for reactive and corrosive chemicals.

Laminated mica or mica products are employed in electrical engineering already since the turn of the century. Micanite is the name given to sheet material which is made up of fine mica lamellae, called "splittings", bonded together by a variety of bonding agents such as shellac, epoxy, or silicone, in order to obtain particular characteristics for specific uses.

Flexible Micanite is made from clear Mica Splitting bonded together with special flexible bonds which permit forming down to small radii while cold.

We provide you to its world of Commutator Segment Mica.

Asbestos Mill Board is a naturally occurring silicate mineral with long, thin fibrous crystals.

We are offering latest products of Asbestos Mill Asbestos Rope for all age man & woman.

In development of the Mica tapes, we use mica paper, woven E grade fiberglass fabric and laminated with polyester film on one or both sides.

We are one of the well established manufacturer a wide range of Glass Sheet.

We are deal in all types of Glass Tape that are available at market leading prices.

We are offering all types of mica paper board that are available from us at very nominal prices.
