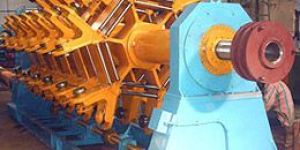

Strip Armouring Equipment
APPLICATION Stranding of telephone cables, control cable, insulated conductors, wire/strips armouring of cables, high voltage cable armouring, steel wire rope manufacturing
Type : self supporting carriage with under rollers/Fork Type
Application : Stranding of telephone cables, control cable, insulated conductors, wire/strips armouring of cables, high voltage cable armouring, steel wire rope manufacturing
...more

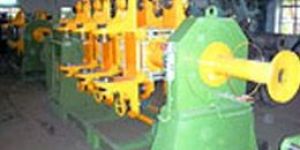

WIRE STRANDING MACHINES
Type Fork Type/Cage Type Application Stranding of Copper/Aluminium and Alloy/Steel Wire Bobbin Size 400 MM/500 MM/550 MM/630 MM Wire Size 1.4 MM-4.5 MM Bobbin 1+6+12+18+24 Direction of Rotation Clock Wise/Anticlock wise Cage Support Both end bearings Cage Speed Max. 150 RPM for 24 Bobbin Cage Bobin Holding Pintle type Main Gear box Completely enclosed gears Lay Pitch 100 MM-550 MM Haul off capstan 1600 MM/2000 MM/2500 MM/3000 Dual Wheel Take Up Stand 2600 MM (max)
...more

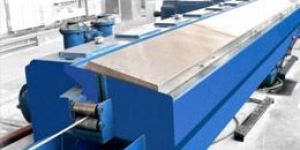

Wire Drawing Machine
taping head
No of Pads : Two/Four Outside dia : 600 MM max RPM : 600 RPM max Tape material : Textile/Paper/Plastic Breaking : Pneumatic
Material : Textile/Paper/Plastic
...more
Steel Taping Head Machine
Rotating catterpiller
Pulling Force : 3000 kg Gropping Length : 3000 MM Width of Contact Belt : 150 MM Air Pressure required : 6 kg
...more
Drum Twister Machine
Cable Range : 6 MM to 150 MM Pay Off Drum : Upto 4000 as per DIN 46395 Take Up Stand : Upto 4000 as Per DIN 46395 Max. Line Speed : 100 mtrmin Application : TelephonePower cable Spark Tester : 0-20 KV AC Motor Pay OffTake Up : AC Motor
...more
drum twister laying up machine
Flange dia : 2600 MM (max) Drum Holding : motorised by pintles Loadingunloading : By Hydraulic Platforms Rotor Speed : 75 RPM (max) Capacity : 8 M.T. Brake : pneumatic
...more
Drum Twister For Power Cable Machine

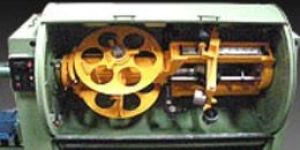

COPPER/STEEL TAPE ARMOURING MACHINE
Application : Telecom/Power Cables/Railway Cables
cable jacketing machine
Type : Portal Type
CABLE DRUM REWINDING MACHINE
BOBBIN REWINDING MACHINE
Belt Caterpiller Machine
armouring machines
BOBBIN SIZE : 400 MM–1600 MM Flange Dia Bobbin to DIN specification TYPE : self supporting carriage with under rollersFork Type BOBBIN STAGGERED : carriage execution in 3, 4, 6 or 8 Spool division NO. OF. SPOOLS : 6, 8, 12, 18, 24, 36, 61, 72, 84, 90 & 108 wires BOBBIN HOLDING : Pintle type APPLICATION : Stranding of telephone cables, control cable, insulated conductors, wirestrips armouring of cables, high voltage cable armouring, steel wire rope manufacturing
...more
jig fixture
Receiver Gauges
Plug Gauges
Welding Fixtures
pneumatic fixtures
Thread Gauge
