Insel Rectifeir Ecotech III, Greater Noida, Uttar Pradesh

Thyristors may also be necessary to act in the opening switch mode as well. Such applications may contain those where voltage is reapplied to the pulse power switch shortly after closing and the switch needs to have improved blocking capability or the transfer energy needs to be controlled. In these applications, the switch needs to have turn-off capability to decrease the natural turn-off time (tq) of the device. The device is operated in GTO mode with the suitable commutating gate drive.

The h and w series are the result of continuous research and development programme aimed at reliable, low-cost, compact selenium rectifier elements and stacks. High standard of quality are further insured by westing house plants & machinery and the expert technical know-how available at insel rectifiers.

Silicon Diodes Manufacturer are electronic components that conduct current in only one direction. In function, they are similar to one-way valves. Silicon Diodes Manufacturer using semiconductor materials such as silicon, germanium or selenium and are used as voltage regulators, signal rectifiers, oscillators and signal modulators demodulators. Semiconductor diodes consist of a PN junction having two terminals, an anode (+) and a cathode (-). Current flows from the anode to the cathode within the diode . Diodes can be used as voltage regulators, tuning devices in RF tuned circuits, frequency multiplying devices in RF circuits, mixers in RF circuits, switching applications, or can be used to make logic decisions in digital circuits.

Isolating transformer are used in Air Field Lighting system and provide isolation between the primary high voltage series circuit and low voltage secondary circuit. The primary of all transformers are connected in series and fed by constant current regulator. Secondary feeds the individual Airport Runway light. Isolating Transformer are used to maintain continuity of high voltage primary circuit in case one or more lamps are not in working order and to maintain the supply of 20 Amps. From the 6.6 amps. Series circuit or vice – versa alternatively to supply 6.6 Amps. From 8.3 amps . in the series circuit.

The Field Failure Relay, when used in series with the field circuit, ensures that no power is supplied to the Armature unless Field circuit is complete. Field Failure Relay, also known as Field Loss Relay protects the D.C. Shunt motor or main circuit under open field conditions.

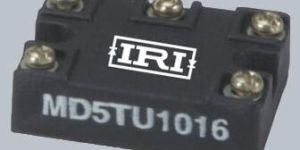

Bridge Rectifier A bridge rectifier makes use of four diodes in a bridge arrangement to achieve full-wave rectification. This is a widely used configuration, both with individual diodes wired as shown and with single component bridges where the diode bridge is wired internally.
