JRK Automation Sector 1, Greater Noida, Uttar Pradesh

Control unit with TFT display 320x240 color with capacitive touchscreen; IP65, coated aluminium housing; 32 bit Microcontroller 2 GB internal data memory (micro SD card); 2x RS232/RS485 sensor interfaces with variable protocols (one useable as Modbus output channel to SCADA system) Technical data Energy supply Voltage supply 85-265 VAC, 50-60 Hz, 10-15 VDC Power consumption Type: 6 W, max: 50 W Sensor interfaces Connection 4 x M12 industrial connectors for TriOS sensors Modbus RTU Server RTU no Client RTU Yes (on each sensor connection) Parameter Adjustable (default: 9600-8-N-1) Network USB Standard WiFi IEEE 802.11b/g/n Standard RS-232, RS-485 Connection Built-in WiFi antenna Protocol TCP/IP Protocol Modbus-RTU, TriOS Web Interface Yes USB No Analog interfaces Analog output 2 x analog outputs, configurable 4...20 mA Load Max. 500 O Connection terminals 1.5 mm² (AWG 16) Error indicator No Switch inout/output Measuring trigger No Control voltage 12 VDC (only for TriOS accessories), Terminal: max. 2.5 mm2 (AWG14) Relais outputs Electrical specification 1x relay switching contact (SPDT) / 250 VAC, 2 A / 30 VDC, 2 A Connection terminals Max. 2.5 mm² (AWG14) Compressed air cleaning Valve Optional: external connection possible Display Display 3.5 inch capacitive touch display (320x240 pixels) LED 5 x status LED Data storage Data export Via WiFi (compressed tar file) Storage medium Internal 2 GB microSD card Ambient Operating temperature 0...+40 °C Relative air humidity 0...95 % (non-condensing) Protection type IP65 Mechanics Dimensions 150 x 139 x 80 mm Weight 1.6 kg Storage temperature -20...+70 °C Materials Housing: Aluminium die-cast alloy Front panel: acrylic glass (PMMA) Versions item number article 20C000000 Tribox Mini

Material : Metal

Application : Industrial

Feature : Quality Assured, High Ductility, Durable

Voltage : 220V

Warranty : 1 Year

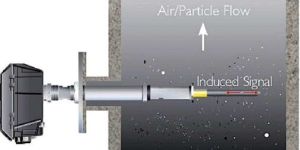

Dust Monitor & SPM Monitor: SRV Enviro are global leaders in manufacturing of Back Scattered Dust Monitor, gas analyzers, gas detectors, Stack Opacity Meter, dew point analyzer, particulate monitors, stack gas analyzers and have been supplying instruments to customers worldwide. Our multidisciplinary team of scientists, physicians, engineers, and regulatory consultants with decades of global experience brings you the quintessential mechanism that provides complete safety accuracy and durability. Vasthi Engineers was formed with visionary thinking and innovative ideas resulting in innovative products and solutions. We enhance our product quality by the continuous process of research and development. We have WIDE range of models to suite various site conditions and processes.

Power : AC220V ± 10 50Hz

Driven Type : Electric

Feature : Accuracy

Weight : 10-50kg

The SRV Multi Gas Analyser for Nox and Sox gases uses microprocessor control and Direct Extractive detection method to measure high concentration total oxides of Nitrogen (Nox), and total oxides of Sulfuric (Sox). The analyser delivers excellent sensitivity and reliability by using single measurement channel and gas sample accumulator to provide precise measurement of Nox and Sox artifacts. Advanced signal processing provides continuous measurement and NOX, Sox concentrations are corrected for fluctuations in gas temperature/pressure, flow rate and gases converter efficiency. Data can be displayed either in parts per million (ppm) or milligrams per cubic meter (mg/m3). Features : High concentration Nox/Sox measurement using direct extractive detection method. This analyser has been specifically designed for applications with Nox and Sox ranges of 0 - 2000 ppm or 0 - 300 ppm (option) Inbuilt large monochrome LCD display presents real time data, molybdenum converter efficiency, instrument status and historical information in a digital or graphical format. User selectable screens provide access to all instrument setup and diagnostics menus> Stored data can be retrieved via RS232, USB interface or the optional Ethernet connection and uploaded to a TCP/IP network. Ethernet option facilitates data download from an analyzer connected to the internet via a standard web interface. This feature also supports remote access to instrument parameters and the status output screen Auto zero pre-reactor control provides continuous zero function Inbuilt data logger uses Flash ROM with storage capacity up to 150 days of 5 minute data. It has facility to calibration functions like Auto Zero and Auto Span settings. Pre- Settable Sampling and Purging, data logging times Memory clear facility. Real time clock (RTC) facility. Ranges display : Auto-ranging 0-2000 ppm, (2), optional 0-300 ppm Resolution equals : 0.01ppm Analogue out : 4-20mA Temperature Range : 10ºC to 60ºC. Relative Humidity : 0% to 80% non-condensing. Digital Outputs : 3 to 5 LPM Digital Outputs : Multidrop RS232 port shared between analysers for data, status and control. USB post DB50 with discrete status, user controls and analogue output. Communication Port : Rear panel multi-drop RS232 port shared between analysers for data, status and control and front panel service RS232 port. Plus USB interface and optional Ethernet connection to a TCP/IP network via an RJ45 connector. Data logging : Supports internal data logging capability with storage up to 135 days of 5 minute data stored in flash ROM. Power : 230 V AC, 50 HZ

Power : AC220V ± 10 50Hz

Driven Type : Electric

Feature : Accuracy

Weight : 10-50kg

LISA - SAC254 - the new low-cost state-of-the-art SAC 254 nm instrument from TriOS optical sensors. Innovative long lifetime UV-LED technology and a robust design are the key-features of LISA. Like every TriOS sensor, LISA has nano coated windows to avoid fouling. Combined with airblast cleaning service costs are reduced to a minimum. The unique TriOS G2 interface allows easy and fast 3rd party integration to existing SCADA systems or dataloggers, beside the use within the wide range of TriOS controllers and handheld devices. Additional to the digital outputs, LISA is available with direct 4..20 mA interface. LISA can be customized with optical path lengths of 1, 2, 5, 10 or 50 mm to cover almost every application. The use of a second wavelength offers automatical internal turbidity correction of the SAC value. The titanium version of LISA allows the use in very harnished environments (e.g. high chlorine concentrations). Application depending correlations to COD, BOD or TOC can be done, offering online measurement of this parameters at a fraction of investment and service costs of other SAC254 probes or classical cabinet analysers. Technical data Input data Parameter SAC254, CODeq, BODeq, TOCeq Measurement accuracy 0.2 % Turbidity compensation at 530 nm Data logger ~ 2 MB T100 response time 4 s Function and system design Measurement principle Attenuation, transmission Light source 2 LED (254 nm, 530 nm) Detector Photo diode + filter Optical path 1 mm, 2 mm, 5 mm, 10 mm, 50 mm Auxiliary power Interface digital Ethernet (TCP/IP), RS-232 or RS-485 (Modbus RTU, TriOS) Interface analog Ethernet (TCP/IP), 4...20 mA Power supply 12-24 VDC (± 10 %) Output data Power consumption < 1 W Environmental conditions Sample temperature +2...+40 °C Ambient temperature +2...+40 °C Inflow velocity 0.1-10 m/s Performance characteristics Maintenance effort < 0.5 h/month (typical) Calibration/maintenance interval 24 months System compatibility Modbus RTU or: Analog Out (4...20 mA) Guarantee 1 year (EU: 2 years) Installation Max. pressure with SubConn 30 bar Max. pressure with fixed cable 3 bar Max. pressure in flow cell 1 bar, 2-4 L/min Protection type IP68 Structural design Housing material Stainless steel (1.4571/1.4404) or titanium (3.7035) Weight stainless steel ~ 1.6 kg (with 10 mm path) Versions item number article 14SXXXXX0 LISA-254 LISA-254 1 4 S X X X X X 0 Path length 0.3 mm 0 1 mm 1 2 mm 2 5 mm 3 10 mm 4 50 mm 5 100 mm 6 150 mm 7 250 mm 8 Sensor Flange None 0 DN50 1 DN80 for cleaning bond 2 Material Stainless steel Titanium Interface Digital: MODBUS RTU RS232 / RS485 0 Analogue: 4 … 20 mA 1 Connector 10 m fixed cable with M12 plug 0 SUBCONN 8pin micro 1

Basic Characteristics of OCEMS System Digital communication with distance computer for data acquisition /recording /reporting DAS(Data acquisition System) Defines the logging of digital data from analyzer. Data Transferred directly from analyzer (no in between logic) to CPCB/SPCB. Data validated its encryption format (Tamperproof). The system records all monitored sample values and transfer 30 Minutes average value to DAHS. System do have provision to access the momentarily values as and when required. Data Validation Protocol inbuilt with data quality codes to define specification in DAS /Data Logger. Key Features Non Volatile memory in data logger for recording upto 2 Years data. Calibration Record will be saved in Portal and can be retrieved any time  Statistical data analysis (customizable) for average, min, max, diurnal variation, comparison of formats of different locations , user selectable time formats(Hourly ,daily, weekly monthly) etc. in graphical and tabular formats compatible to MS- Excel, MS-Word, *.txt etc. Automated data generation, data pick up, data transmission; data integration at server end. The submitted data available to the Central Pollution Control Board /SPCB for immediate corrective action.  Raw data to be transmitted with provision to record reasons for delay including display of the same. Data validation is permitted only through the administrator and data changes recorded with date and time stampings. The data submitted electronically will be available to the data generator through internet, so that corrective action if any required due to submission of erroneous data can be initiated by the industry. The software is capable to verify the data correctness which means at any given point of time the regulatory authorities/data generator should be able to visualize the current data of any location’s specific parameter. Real-time display of live data and graphs Capability of comparison of data with respect to standard / threshold values Alarm & Auto report generation, auto mail generation etc. Providing diagnostics of the instruments installed at the station Data validation incorporation in the software with two stage/three stage validation Providing calibration database for further correction of data.

Color : White

Voltage : 220V

Automatic Grade : Automatic

Power : 1-3kw

Driven Type : Electric

Warranty : 1year

These measurements are used to determine the human exposure to pollutants and can be combined with trace/background monitoring as well as stack monitoring to assess an organizations contribution to pollutants, and the effect this has compared to natural levels. We provide anayser shelter constructed from various material such as stainless steel SS304 or SS316 or painted galvenized steel. The shelters are designed and manufactured to ensure the reliable performance of the analyser and their systems , to ensure an optimum operation and maintenance of the analyser by the plant personnel, to ensure the safety of the personnel, and minimize the impact on the environment at customer plant site. Clean air is made up of nitrogen, oxygen and argon, with traces of other gases such as carbon dioxide. Air pollutants mainly come from the discharges of gases and particles, mostly from industry, motor vehicles and domestic wood burning. There are also natural sources such as windblown dust and smoke from bushfire. Some forms of air pollution create global problems requiring international solutions; for example, upper-atmosphere ozone depletion and acid rain. The enhanced greenhouse effect also falls into this category. The most widespread pollutants include carbon monoxide, volatile organic compounds, ozone, oxides of nitrogen, sulfur dioxide and particles. These substances are used as indicators of air quality. Air pollution can cause health problems. For example, high concentrations of air pollutants (poor air quality) can aggravate existing respiratory diseases such as asthma and bronchitis, or increase the risk of respiratory problems. To protect the environment against harmful and unhealthy levels of air pollution, Environmental Protection Agencies (EPA) adopt objectives to protect a range of beneficial uses, including the health and well being of humans, plants and animals. These policies cover all the major pollutants as well as specific industrial pollutants from chimneys. There are more stringent controls on industrial discharges of pollutants that may have adverse health effects or are highly toxic. We specialise in air quality monitoring instruments and systems. We manufacture our own range of air quality analyser system and are able to offer fully integrated monitoring systems. Our air quality monitoring cover a wide variety of gases from background/trace levels, through ambient systems level. The most common form of air quality monitoring is ambient air monitoring. Ambient air monitoring involves the measurement of “representative” air in urban, industrial and rural areas. These measurements are used to determine the human exposure to pollutants and can be combined with trace/background monitoring as well as stack monitoring to assess an organisation’s contribution to pollution, and the effect this has compared to natural levels. Visibility is also measured as part of an air quality management system for ventilation control, as well as secondary smoke detection.

Color : Light White

Voltage : 220V

Automatic Grade : Automatic

Power : 1-3kw

Driven Type : Electric

Warranty : 1yrs
