Motor Control Panel Dealers in Greater Noida

• Body Material: Mild Steel
• Power Source: Electric
• Application: Industrial
• Voltage: 220V

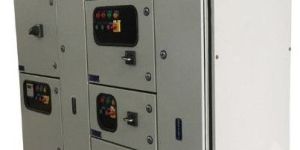

• Type: Drawout Panel
• Phase: Three Phase
• Country of Origin: India
• Dimension: As per client requirements

Feature  Ensure minimum operational down time. High Degree of operating personnel safety & dependability. Power as well as control contacts are self aligning type. There are four distinct- Service, test, isolate & fully withdrawn position. In all positions the withdrawal module has got locking facilities. Gravity operated shutters are provided to cover live bus bars when modules are removed. Draw-out power contacts are type tested at CPRI for 50, KA for 1 Sec with back-up protections. Tested to establish continuous current carrying capacity. Voltage drop between male & female contacts tested at CPRI. Di-electric properties are checked for any leakage through support on which they are mounted. Drawout contacts are tested for mechanical endurance test to prove its life. These are available from 32 Amp to 630 Amp.

• Operating Voltage: 130V to 280V
• Box Type: Powder Coated Box, Compact size Wall mounting, Temper proof and maintenance free.
• Indication: LED Indication status for MAINS & GENERATOR On
• Technology: Microcontroller based technology with Pre-Program interlocking to prevent short circuit.
• Usage: Industrial Area
• Rated Current: 63A to 630A

Three Phase Motor Starter Control Panel are very much suitable in domestic, agriculture for irrigation and industrial purposes. They can be operated in a voltage range from 170-470 VAC. 01 to 100 HP Starters developed with micro controller Digital overload relay for monitoring /controlling for more protection of motor and PMC (Pre Magnetic Contractor) for instant switching. PMC is a modified concept of contractor with benefits of cost effectiveness & free from problems of Chattering & Coil burning. In digital overload relay, you can program the voltage range as well as current range within which the motor has to be operated. Starter will trip the motor if supply parameters go out of range. It can be operated in AUTO or MANUAL modes. When the AUTO mode is once selected, it automatically starts the motor whenever the power resumes in all three phases in healthy condition. While in the manual mode, one can manually start and stop the motor instantly with the help of separate smooth push buttons. The starter is having smart digital ampere, volt and hour meter. Features : Over load Protection (Programmable) Under Load Protection (Programmable) Under voltage protection (Programmable) Over voltage protection (Programmable) Single phase preventer Reverse phase protection Unbalance voltage protection Auto/manual mode selector switch Inbuilt MCB /MCCB to extra protection Hour meter to show the total time of run Digital Amp. & volt meter inbuilt Auto switch inbuilt with Start delay time Wide voltage range - 170 - 450 VAC Fabricated with powder coated G.I. sheet Continuous running capacity - 100 + Hrs
