Airtech Services Pace City, Gurugram, Haryana

Clean air T pass through box clean air pass (clean pass box) through box is designed to minimize traffic and contamination entry into the clean room. Enables parts, tools and other work items to be passed to and from the room. Unit acts as an air lock device preventing ambient air from entering, or clean air from exiting the clean room. Dynamic pass boxes are provided with vertical laminar airflow. Standard Features Mechanical interlocking for the doors Swing type doors with view panels Door open indicator Optional uv lamp Fluorescent tube light etc. Availability Available in static & dynamic versions Available in different sizes to suit customer requirement Available in complete ss or ms with pu painted construction

  * The filter can be assembled with / without flanges Available in casing thickness from 1 to 1.5 mm in variants of Mild steel/Galvanized steel/Aluminium/Stainless steel * Powder coating is the standard surface finishing offered Mini-pleat HEPA FIlters * Filtration media is all glass, micro fibre, fire retardant HEPA filtration media * Aluminium separators made from 0.04 mm thick aluminium foil in the case of deep pleat version. * High impact poly styrene separators in the case of mini pleat version * Synthetic soft rubber gasket with dovetail joints. * Epoxy & Silicon Sealants * Initial pressure drop of 18 mm WC for deep pleat filters and 14 mm WC for mini pleat filters * Suitability to class 100 clean rooms and work stations as per FED:STD:209E * Efficiency 99.98% down to 0.3 microns. Suitable for H13 class as per EN779 * All filters are particle counted and DOP leak tested * Filter construction as per recommendations of IES-RP-001 * Each filter is accompanied by a test certificate APPLICATIONS * Clean rooms for micro component electronic manufacture & assembly * Pharmaceutical Processing * Aerospace Engineering * Genetic & Biological research * Biohazard Atmosphere * Laminar Flow Workstations * Bio Safe Hoods(Biological Safety Cabinets) * Hospital Operating Theaters & Intensive care units * Atomic Research * Pre filter stage to ULPA systems

Laminar Air Flow Cabinets provides a class 100 air flow in the work area for operations where products is of utmost importance. The unrestricted open front work area allows the use of equipment under biologically clean conditions. Our range includes horizontal laminar air flow, vertical laminar air flow and gmp model laminar air flow. Direction of flow: Horizontal Cleanliness: CLASS 100 Velocity: 90 FPM + / -20% Hepa Filter: Size and QTY. will depend on the Size selected Particle retention: Above 0. 3 micron Blower Assembly: 1 / 3 HP, 1440 RPM Noise level: 65 decibel + / -5% Rate of air flow: 0. 40 to 0. 75 M / Sec. (90 FPM) Vibration level: < 2. 5 micron

Our customers can purchase long life Air Filters from us, which are designed in compliance with the international quality standards. These filters are widely used to remove the solid particulates such as dust, pollen, mold and bacteria from the air to enhance the efficiency and life of the engine. Our quality inspectors conduct various tests stringently at every stage of production. Features: Best grade materials used Optimum performance High temperature tolerance

  Hygine Airtech brings truly world class HEPA filters that are reliable and economical devices for removing concentrations of sub-micronic particles of both biological and chemical origin Making of HEPA Filters: Filters consist of fibre glass filter core.The fibre glass medium is continuously pleated back and forth over corrugated separators that add strength to the core and provide air passages between the pleats.The core is then sealed in full depth metallic casing with special adhesives like polyurethane sealant. Filter media: Non-woven micro glass-fibre Separator: Aluminium Sealant: Eproxy Filter frame: Aluminium,Stainless Steel Max Temp: 120oC Max Humidity: 100%RH Test Method: Hot Dop Test, Cold Dop Test, Scan Test, Dimensional checks Efficiency: 99.97% at 0.3 micron size Initial pressure drop: Less than 25mm WG at rated flow

This is driven by the inherent performance advantages of the gel seal; a soft material that results in filter installations that are easy to seal and require low clamping pressure compared to typical foam gasket systems.

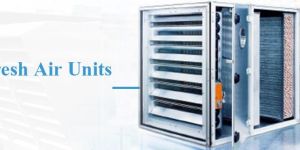

1 Blowers and motors being fitted to these units are one of the finest in its category. 2 Single and Double Skinned Construction 3 Extruded Aluminium hollow profile, thermal break profile as option. 4 Double Skin Panels with thickness 25 and43 millimeter and free from HFC and CFC, PUF are used Base frame of heavy G.I (Galvanized steel sheet) channel of min thickness 1.4 mm with lifting holes for handling. 5 DIDW Forward/Backward Centrifugal fans are used that is certified to AMCA and are made by KRUGER or NICOTRA 6 The fans are dynamically and statically balanced 7 For Blower and Motor common base frames are provided s 8 Induction motors with TEFC squirrel cage of 415+10% volts, 50/60 cycle, 3 phase/ 1 phase AC supply. 8 Motor make: ABB / SIEMENSE/ KIRLOSKAR 9 Generally Fresh Air Unit is provided with primary filters of different media. However secondary filters viz, HEPA/ Microvee /     EU-9/ EU-12/ EU-4 and Bag filters can also be provided

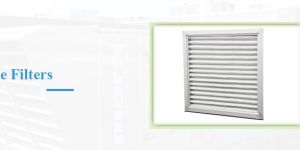

* Electro-galvanized steel rod for strength * Optional aluminium casing around the filter * Water washable * Available in 9, 12 & 15 mm thickness * Used in fan coil units of comfort air conditioning * Can be manufactured to suit any size as per customer's requirements

After having earned recognition as the leading player in engineering, fabrication and installation of high-performance, custom-designed ventilation and fume exhaust equipment and systems, HUMIAIR also offers dust collectors. Dust collector is a device for suction of dust /fume particle from dust letting out source from different type of machines. This mainly consists of three parts: Top shell, center shell and hopper. In the center shell we provide the specific nos. of bags /cartridge filters for filtration of dusty air so that it should not pollute the environment. Dust is mostly collected in the dust bin which can be easily removed from the premises. We can design the dust collector taking correct static pressure, motor HP, correc

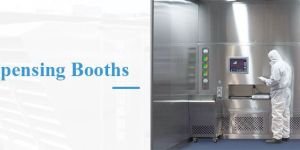

Our Sampling & Dispensing Booth are ideal for sampling raw materials with a clean environment providing complete protection of the operator and the product from external contamination. They are in high demand n the global market and are designed to perfection conforming to the US Federal Standards 209 E. They are also availed in customized ranges and offered in industry leading prices. The essential attributes of our exclusive gamut includes the following : The main body constructed out of SS 304. White lights situated in the side panels offers excellent illumination throughout the work zone through translucent sheet and is outside operators line of sight. Separate switches have been provided for the blower and white lights. Additional 5/15 amps socket/s provided inside the work zone for connecting the balance. Superior electrical safety for the operator since all cabinets are factory tested after production at manufacturing site.

Condensing Unit Our clients can avail from us a gamut of Condensing Units that is known for high efficiency, excellent heat transfer and minimum power consumption. These Condensing Units are procured from some of the renowned manufacturers, who are known for using latest technology and quality material. Further, these are provided with inner grooved copper tubes and slit aluminum fins for superior heat transfer. Ductable Unit The premium quality range of Ductable Unit offered by our organization is widely applauded for its volumetric efficiency and the minimal friction losses, owing to its scroll compressor. Being procured from the trustworthy vendors of the market, these are known to have been made using top notch quality raw material. Furthermore, these are rigorously tested by our quality experts to ensure its quality matches that of international norms and standards.

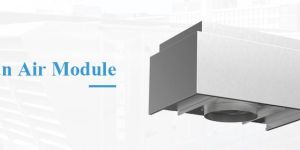

We are offering clean air module that is used in various rooms thus providing them clean air free from any particles and dust. Moreover, we are reputed as one amidst the prime clean air module manufacturers in India.

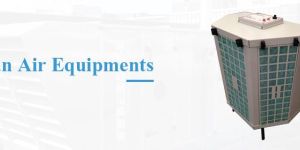

These Clean Air Equipments are widely available at industry leading rates. Specially designed for purifying air, these are offered with optional exhaust systems. Furthermore, our range of equipment can be customized in accordance to the specifications stated by our clients. Sample Availability : Yes Supplier Product Code : SUPR-05

Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled * The filters can be fabricated with/without flange as per customer's choice. * Available in casing thickness from 0.5 mm to 1.5 mm in variants of Mild steel/Galvanized steel/Aluminium/Stainless steel with a surface finish of enamel painted or powder coated finish * Media is Non-Woven Polyester fibres chemically bonded with a layer of woven High density poly ethylene(HDPE) mesh for support on the exit side resulting in a media that is mechanically very strong. Other media's can be provided against specific requirements. * Electro - galvanized steel rod grill for bag support. * Bags are intra stitched to prevent bag ballooning. * Stitch holes are sealed using synthetic sealants * Bags are sealed with frame using synthetic sealants. * Epoxy sealants can be provided on specific requests. * Suitable for EU5 and EU6 operation as per DIN24185 part II or F5 & F6 as per EN779 Initial pressure drop of 8 mm WC. * Filtration efficiency of 99% down to 5 micron for IS7613 test dust No 2.

An evaporative cooler produces effective cooling by combining a natural process water evaporation with a simple reliable airmoving system. Fresh outside air is pulled through moist pads, where it is cooled by evaporation and circulated through a house or building by a blower. Advantage of Evaporative Air Cooling Introduces 100% fresh air. Windows and doors left open. Keeps the air moist, great for allergy and asthmatic conditions. Full ventilation exhausts odors, germs. Increased cooling capacity as outside temperature rises. 70% Less than the installation costs of air conditioning. 90% Less than the running costs of air conditioning.

We offer air shower which are are used to clean rooms in order to minimize the amount of particulate contaminants, that are washed off with high velocity filtered air jets. The high air velocity of ensures efficient scrubbing action necessary to remove particulate matter. Contaminated air is then taken in through the base of the unit, filtered and re-circulated into the chamber. These are in different costumized sizes and design as per client requirement.

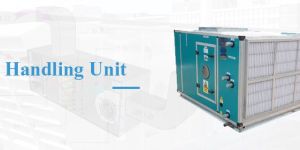

We specialize in providing the best Air Handling Units (AHU) to our clients which have got a long flawless life and are available at competitive prices. These units are mostly used in cleanroom pharmaceutical equipments based companies and have got following technical features : Advantage of Evaporative Air Cooling Advanced structure of frame and panel, low air leak. LSFP AHU Air Handling Units has compact framework structure and attractive appearance. Uses low-noise centrifugal fan and external-rotor motor, compact structure and small vibration could regulate speed with speed controller. Uses flame-resistant polyurethane, high strength, good heating preservation and soundproof effect. Airflow rate is 2354 - 20,598CFM. Totally it has 4 classes 30 specifications. This series can be added to install a heater, humidifying apparatus and precise control instrument. The built-in concave and convex polyamide filter is easy to unload, clean and replace. Heat exchanger with rippled fin could regulate the cooling or heating capacity in a big extent to meet the

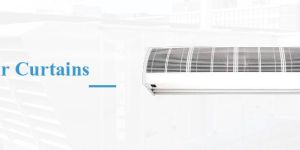

  We are the most adhered Manufacturer and Validator of Air Curtains, which we manufacture from the superior quality material, which ensures their durability for a long run. We design Air Curtains, keeping the different requirements of clients in mind, which is helpful in various applications. With the help of our offered Air Curtains, anyone can keep the surroundings spick- and- span. Our industrial air curtain keeps soot and dust particle away in the grubby environment of industries. Besides, we are one of the leading air curtain manufacturers as well as suppliers in the marketplace. Specifications :- Material a Construction: M.S. CRCA / S.S. 304 Power Sup y - 220V. AC., 1 Phase, 50 Hz / 440V. AC.,3 Phase, 50 Available Mod s: 1) Universal, 2) Industrial, 3) Heavy Duty, Industrial Available Sizes: feet, 4 feet, 6 feet.
