Ajashy Engineering Sales Private Limited Sector 4, Gurugram, Haryana

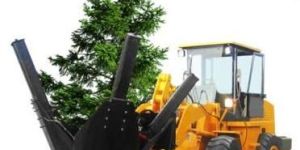

Tree Spade is a tool which is used to transplant trees (uprooting a tree from one location and planting it at a different location). Transplantation is an effective method of saving the trees from being cut which come in the way of important infrastructure, construction, mining, road and oil gas pipeline sites. The Spade is mounted as an attachment on a carrier equipment such as a wheel loader or skid steer loader and is operated hydraulically. Spades are employed to cut a hole in the ground at the location where the tree is to be transplanted. Same spades uproot the tree along with the roots and surrounding soil. The tree is then replanted in the previously dug hole.

Slope Compactor Roller is designed to be attached onto Excavators Backhoe loader. It consists of a vibratory roller which is vibrated through an eccentric shaft while being operated through the hydraulic circuit of the carrier equipment. This is useful at sites where deep soil compaction is required and compaction of slopes such as canals, road-side hills etc and also for the areas which are non-accessible with the conventional compactors. The attachments are available for various carrier models and capacities.

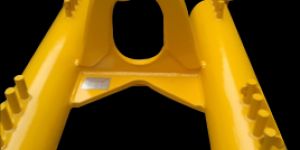

Rolli Cradles are designed efficiently to assist in the pipeline travel operations as well as to facilitate smooth, swift & efficient lowering operations. Each unit of rolli cradle is produced with shear perfection & is quality tested before sending it to the customer. Various cradle assemblies from pipe sizes 6″ (168 mm) to 60″ (1524 mm) are available. Cradle designed to facilitate easy & quick disassembly for transferring at the sites & for storage. Design facilitates to keep the pipe near to the ground allowing better operational control and mobility. Multiple rollers spaced to support the pipe evenly and to prevent an “egging” problem. Rollers material eliminates pipe coating damage & absorbs heat generated through friction. Dust protection given to the rollers to prevent dust from entering the bearings. Heavy duty high strength bearings are used for rollers to bear heavy loads of pipes. Replacement rollers also available.

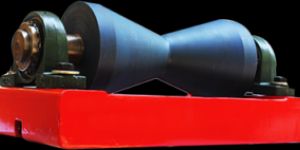

We offer pipe rollers of various sizes & load bearing capacities as per the customer requirement. All are roller assemblies are made with hardened steel frame & Polyurethane or Ertalon 6 PLA rollers. Pipe rollers are available for pipe sizes ranging from 3 to 72 inches & load bearing capacity toll 10 Tons.

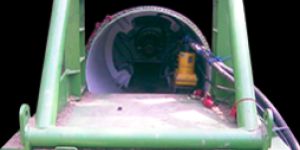

This is a laser controller guided boring machine composed of a steel cylinder equipped with a hydraulic operated motor and a cutter in the front. The material taken by the cutter is excavated using conveyor. As on moving in bore, machine pushes the pipe to be installed right behind the Bore head. The drilling alignment is continually checked using a laser incorporated into the machine and steerable head makes it possible to make adjustments during the boring process.

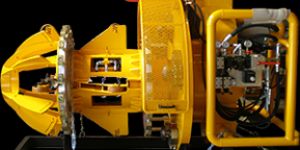

We manufacture pipe facing machines for pipe diameter ranging from 8” to 42” with a thickness up to 1.5” mm. Features & Advantages Customized sizes available apart from standard as per the requirement of customer. High Precision Machine to cut required bevels on thin & heavy wall thickness Pipes. Hydraulically Driven with Option of both electric & Diesel Driven Power Pack. Transition Tapers to join pipe of different wall thickness. Handles upto 4 Tool Posts.

We are manufacturing hydraulically operated pipe bending machines for pipe sizes ranging from 6 to 60 inches. Features & Advantages Customized sizes available apart from standard as per the requirement of customer. Strong Frame to bend thicker Pipe wall. Capable of bending all grades of available API-5L pipe within its range. Complete Hydraulic Controls , Panel with Guages & Automatic Shut off valve to give operator complete command. Installed on rubber wheels to make it easy to move on site. Conversion of machine to another size in its range is easy by just changing the bending die. Calibrated Indicator Rod for bend measurement. Options of using LeylandCummins engine as per customer requirement. Hydraulic Driven winch for pipe movement through the machine. Extensive inventory of Spare Parts, Consumable Items & Tools. Skilled Manpower available for Operation & Maintenance. Economic & Reliable.

Mobile Service Van is a multipurpose vehicle used for maintenance and repair of construction and mining equipment at site. It gives the benefit of on-site repairsmaintenance without wasting any time to bring the equipment or vehicles to workshop. The Service van is fully equipped with oil dispensing system, tools, small equipment and other utilities such as oil pumps, grease pump, air compressor, grinding machine, drilling machine, welding machine, washing pump, cutting set, lights etc. As power is generated using a PTO driven hydraulic generator it does not require any external electrical supply or compressed air to run various service related tools and equipment.

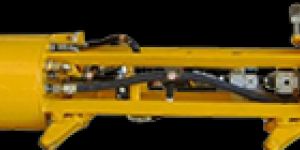

These are pneumatically operated high precision machines used to align two pipe sections of identical diameter and are used on Onshore or in cross-country pipeline. They are available from 10 to 60 inches pipe diameters.

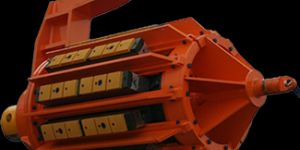

Internal lifting tools are used for upending of piles, conductors and lifting of jackets, templates, buoyancy tanks and modules. Our products can be used for standard pipes ranging from 16 to 60 inches with lifting capacity from 100 to 750 tons with standard operational water depth of 500 meters.

Ease of operation. Quick reliable alternative to external line-up clamps. Fast line up for continuous welding of pipe. Optimum weight with maximum durability reduces the pipe gang requirements. One specific wall thickness. Maximum pressure exerted on pipe due to toggle action. Heavy-duty jack box puts more line-up pressure on pipe with less operator effort. Gap is unobstructed for full stringer bead. Each clamp is machined for the specific pipe inside diameter. Each product comes with the promise of reliability due to accurate workmanship & Heavy Duty steel construction. Product includes standard reach rod, hook & hand crank. Wide range of sizes available as per customer specific requirement.

These are Hydraulic operated or Hydraulic release shackles that can be released from a remote location as and when required. They are available from 17 to 500 tons with ABS certification.

We offer Special power packs with Electric as-well as Engine driven options. Our power packs come with flow ranging from 10 to 200 lpm & pressure ranging from 150 to 400 bars. They can power a wide range of equipment on deck with precise control and ease of maintainability.

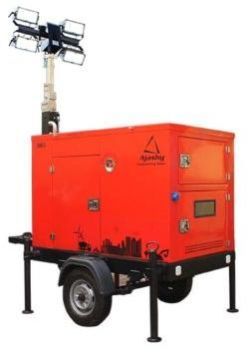

Hybrid Lighting Mast is a movable lighting source which is powered by a diesel engine and rechargeable power generation system. This hybrid system cuts on fuel consumption, green house emissions and noise pollution and also extends the diesel engine life. The output light is derived using LED lights which are cost effective, energy efficient, have longer lifetime and are environment friendly. These can be used at construction sites, infrastructure projects, airports, playfields, schools, public functions and at any other site where illumination is required.

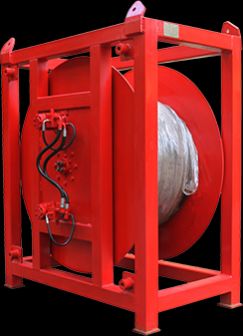

We provide connecting solutions between Hydraulic Power Packs and Hydraulic Equipment with step-less revolutions of hose so that hose can be wound and unwound automatically with the push of a lever on Power pack. They are available in various options of hose lengths and number of hose connections. Reel drive systems can be used for any equipment that requires Hydraulic flow at a remote location for operating equipment.

Hydro testing Filling pump: Hydrostatic testing has long been used to determine and verify pipeline integrity. Several types of information can be obtained through this verification process. to perform the process. To complete the process fluid is pumped in vessel or pipeline, these pump are used to filling this fluid.

Excavator pipelayer conversion kit is used to convert an excavator to pipelayer. It includes two winches that lift a frame composed of a boom and a block with hook.

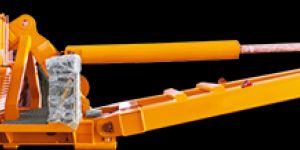

These are used for laying flexible pipes, coiled tubing, umbilical and cables in shallow and deep waters. They consist of Steel A-frame, Spooling device, Electrical or Hydraulic power pack and Control consol with capacity upto 50 tons.

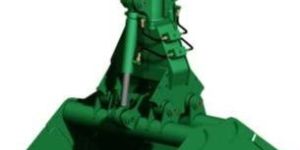

Clamshell bucket is designed to be attached onto an excavator or crane. The hydraulic version is generally attached with an excavator & the mechanical version are designed to be used with Cranes. Twin cylinders mounted on the outer rim of the bucket provide the required digging force. The bucket is made from Hardox plates to make them wear resistant. The inner side of the bucket has a smooth surface for easy unloading of high viscosity material such as mud and clay.

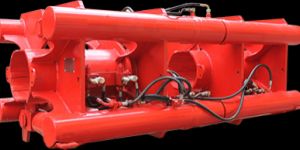

These are used to clamp and align two pipe sections of identical diameters, in order to weld them together. They are available to weld the pipes in Horizontal and Vertical options with pipe size from 12 to 48 inches. Used in mid tie-in joint, Bear Cages can be operated with the support of Hose Reel and Power pack.

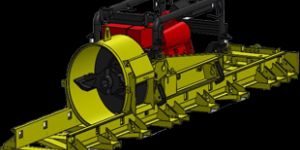

We manufacture auger boring machines for pipe diameter ranging from 18 to 60 inches. Ability to pull auger, steering rods, and push product. More visibility for the master pusher. Increased stability due to low centerline and wide stance provide. Hydraulically assisted clutch is easier and more comfortable to operate. No hook rollers; machine locks safely to the track.

Type : Auger Boring Machine

Certification : ISO 9001:2008

Weight : 15000 kg

Feature : Easy To Operate, Good Capacity, High Performance, Long Life

Voltage : Diesel operated

Condition : Used

Automatic Grade : Manual

Power : 180 HP

Driven Type : Mechanical

Country of Origin : US

Brand Name : American Augers

Application : Boring

Efficiency : 100

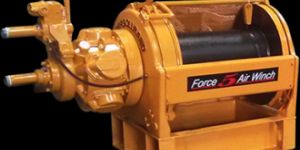

With sources in USA, Gulf & Singapore, we have capability to provide refurbished pneumatic winches with similar warranty terms as for new equipment. All our pneumatic winches are refurbished using 100% genuine spares & as per standard repair procedures & are load tested as per international norms. Ingersoll Rand, Thern or Ram Winches, we have winches from all manufacturers on the shelf.

Our external clamps are available from the 4�¢ï¿½ï¿½ to 60�¢ï¿½ï¿½. The clamps are fabricated with quality workmanship & material which results in powerful clamping & accurate alignment of joints. Hand lever type, ratchet type & hydraulic jack type options are available.
