Dehn India Sector 7, Gurugram, Haryana

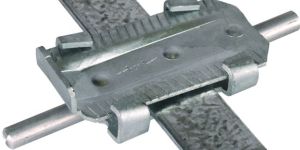

With latches for T, cross and parallel connections for use in concrete foundations. Material : SttZn Clamping range Rd Fl : 10 30 x 3.5-40 x 4 mm Material of wedge : SttZn

For indirect connection earthing of functionally isolated parts of installations under lightning conditions For lightning equipotential bonding according to IEC 62305 With corrosion-resistant stainless steel connections For installation in buildings, outdoor locations and damp rooms as well as for underground installation Extremely heavy-duty devices

The function of a lightning protection system is to protect structures from fire or mechanical destruction and to prevent that persons in buildings are injured or even killed. An overall lightning protection system consists of external lightning protection (lightning protectionearthing) and internal lightning protection (surge protection). Prevention of dangerous sparking in the structure by establishing equipotential bonding or keeping a separation distance between the LPS components and other electrically conducting elements.

Our lightning protection earthing product range includes products for protecting buildings from mechanical destruction caused by lightning effects and the associated risk of fire.

In addition to our broad lightning protectionearthing portfolio, we also offer numerous customised products. Detailed description of the desired product with reference to our standard product and description of the desired change, Description of requirements (e.g. wind load).

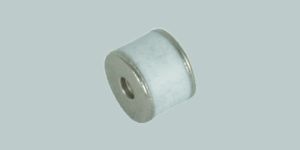

Lightning current carrying replacement gas discharge tube for DEHNgate arresters. High quality with extremely low capacitance. In case of a higher transmission power (up to 500 W) a 470 V gas discharge tube (Part No. 929 499) can be alternatively mounted into a DEHNgate arrester of Part No. 929 043, 929 045 or 929 057. Observe the rise of the static dynamic sparkover voltage!

With drilling spiral for earthing of mobile objects such as vehicles, power generators, etc. Detachable turning handle. Consisting of: – Turning handle (Part No. 462 058 Military name VG 96953 T10 AB001 Stock No. 5975-12-133-7084) – Earthing pipe (Part No. 462 060

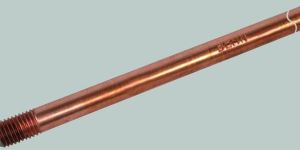

The rods are manufactured from low carbon, high tensile steel with a 99.9 % pure electrolytic copper thickness of 250 microns. Thread rolling after plating preserves the copper thickness ensuring corrosion resistance across the threads. Threads comply with ANSIASME B1.1-2003. Extensible earth rods are coupled using threaded, easy to use brass alloy couplings. Connections can be made by using bolted clamps or exothermic welding process.

The rods are manufactured from low carbon, high tensile steel with a 99.9 % pure electrolytic copper thickness of 250 microns. Thread rolling after plating preserves the copper thickness ensuring corrosion resistance across the threads. Threads comply with ANSIASME B1.1-2003. Extensible earth rods are coupled using threaded, easy to use brass alloy couplings. Connections can be made by using bolted clamps or exothermic welding process. By specifying UL listed earth rods you ensure full compliance to the standard UL 467. Only products bearing the UL listing mark are covered by UL’s listing and follow-up service.
