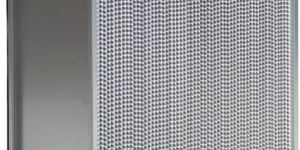

Hepa Filters Dealers in Gurugram

• Type: Hepa Filters
• Material: Stainless Steel
• Color: Black, Light White, Silver
• Finishing: Coated
• Handle Material: Plastic

Mini Pleat Filter is a HEPA type of filter, designed to take out the finest of particles. The filtration material of the HEPA Filter with Separator adopts high density paper of super fine glass fiber, which is folded and then separated with aluminum foil which is pleated with a special machine. Call us for hepa filter classification, hepa filter types, hepa filter virus, hepa filters for masks, hepa filter coronavirus, hepa filter, who makes hepa filters, hepa filter efficiency chart.

  * The filter can be assembled with / without flanges Available in casing thickness from 1 to 1.5 mm in variants of Mild steel/Galvanized steel/Aluminium/Stainless steel * Powder coating is the standard surface finishing offered Mini-pleat HEPA FIlters * Filtration media is all glass, micro fibre, fire retardant HEPA filtration media * Aluminium separators made from 0.04 mm thick aluminium foil in the case of deep pleat version. * High impact poly styrene separators in the case of mini pleat version * Synthetic soft rubber gasket with dovetail joints. * Epoxy & Silicon Sealants * Initial pressure drop of 18 mm WC for deep pleat filters and 14 mm WC for mini pleat filters * Suitability to class 100 clean rooms and work stations as per FED:STD:209E * Efficiency 99.98% down to 0.3 microns. Suitable for H13 class as per EN779 * All filters are particle counted and DOP leak tested * Filter construction as per recommendations of IES-RP-001 * Each filter is accompanied by a test certificate APPLICATIONS * Clean rooms for micro component electronic manufacture & assembly * Pharmaceutical Processing * Aerospace Engineering * Genetic & Biological research * Biohazard Atmosphere * Laminar Flow Workstations * Bio Safe Hoods(Biological Safety Cabinets) * Hospital Operating Theaters & Intensive care units * Atomic Research * Pre filter stage to ULPA systems

Mini Pleat Filter BF-MP. We are pleased in presenting our Mini Pleat Filter. Mini pleat filters give us option of utilizing space saving higher airflow rates or extending filter life by operating at lower than rated airflow capacity. This is called downrating a filter.   We are pleased in presenting our Mini Pleat Filter. Mini pleat filter media give the option of utilizing space saving higher airflow rates or extending filter life by operating at lower than rated airflow capacity. Our entire range of mini pleat filter are made using excellent quality raw materials. We are well reputed manufacturers and exporters of mini pleat filter offering them at market leading prices.   MAIN APPLICATIONS ventilation units installed in hotels, hospitals, trade centers, sports complexes, pharmaceutical industry, automotive painting cabins, clean room as prefilters to hepa filters, power generation plants   COMPOSITION frame in strong cardboard treated with a moisture-resistant additive to prevent collapsing under high humidity conditions. The support members of the enclosure frame are hot-melt bonded to the minipleated medium to ensure dimensional rigidity - Filtering media is made up of glass micro fibbers or cellulose fibbers pleated paper. Pleats are uniform in structure and equally spaced by hot-melt bonding which also brings physical strengthening and dimensional rigidity to the overall structure.
