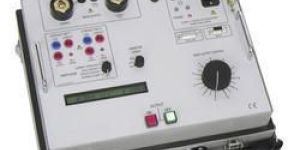

Primary Injection Test Set Dealers in Gurugram

• Use: test and commission Circuit Breakers, Bus Bars, CTs, Relays, MCCs, PCCs etc.
• Current Ratings: 500A to 10000A
• Connections: Series-Parallel to select various current ranges
• KVA Ratings: 5KVA to 100KVA
• Protection: 6 Type of Inbuilt Protection Provided

Primary current injection kits are used to test and commission circuit breakers, bus bars, cts, relays, mccs, pccs etc. These are also used for high current injection and simultaneously measuring voltage drops and hot spots in bus-bar joints, circuit breaker contacts etc.   Primary current injection test sets are available in current ratings from 500a to 10000a and in short time duty as well as continuous operation duty.   Controls are available in automated as well as manual versions. The automated controls also have features like ct ratio measurement etc.   Light weight portable kits of 1000a and 2000a with full load operation time of 3 minutes also available for field testing.

• RATINGS: 500, 1000,1500, 2000, 3000, 4000, 5000 & 10000 A

Primary Current Injection Kits are used to test and commission Circuit Breakers, Bus Bars, CTs, Relays, MCCs, PCCs etc. These are also used for high current injection and simultaneously measuring voltage drops and hot spots in bus-bar joints, circuit Breaker Contacts etc. The High Current Loading Units are also available with series parallel links arrangement to configure the coils in series– parallel configurations to meet the field test requirement.
