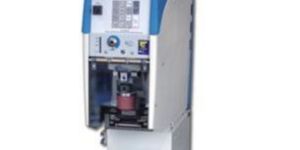

Hermetic 6-12 Universal is a reliable and economic tampon printing machine with simplified operations for various printing requirements and possible integration in automated systems. The printing speed can be linearly adjusted between 1300-4100 cycles/hour via a potentiometer. Low vibration printing processes are the guarantee for a continually good printing quality even when running at high cycles. A selection switch enables different types of printing cycles: Single cycle Continuous run Double and reverse operation ApplicationsA. Pen Barrels, pencil body B. Bottles -- Glass and plastic, cosmetic bottles

TUB - 60 & TUB - 250 : Soft plastic tubes   Servo-controlled machine dedicated to hot stamp soft tubes Longitudinal and transversal registration carried out by a CCD camera. Inclined ramp feeding. Printing head equipped with two servo motors to correct the position of the die. Automatic ejection with gripper. Printed tubes ejected on a conveyor belt. Selective ejection in bulk for non-printed tubes. The machine can also print caps separately from the tubes. Production speed: 20 to 25 tubes/min. Pre-registration on spot. Characteristics Tubes diameters: 19 to 60mm [standard] 13 to 19 mm [option]. Tubes length: 50 to 200 mm. Caps height: 0 to 50 mm. Artwork maxi height: 180mmPossibility to print up to 5 mm from the tube shoulder. Registration accuracy in both directions: +/-0,15mm. Machine net weight: 1,3 metric tones.

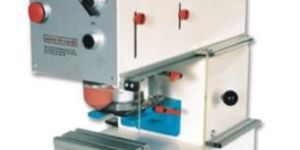

Pneumatic bench tampon printing machine with the well known "Hermetic System", developed by Tampoprint AG. Doctoring cup - 60 mm Cycles/hour - up to 1400 Print image size (max) - 55 mm diameter Cliché size - 70 x 140 mm No. of colors: 1 color (but can be attached with more machines to make 1 Color-6 Color systems). Applications: A. Bottle Caps, Balls (golf & tennis) B. Electrical items (MCBs, bulbs, switches) C. Stationary items (pens, paper weight, staplers)D. Gifts and novelties (key chains and other items) The machine gives extremely high print quality at low cost.

The pad printing method is used for decorating bodies that have no flat surfaces. Important fields of application include the decoration of toys and sales-promoting items as well as bottle caps, plastic bottles, decorative elements in the automotive and furniture industries and many more. RUCO offers a comprehensive range of pad printing inks that have especially been developed and optimized with regard to the different demands placed by the above mentioned fields of application. RUCO pad printing inks series are: Pad Printing T01, Pad Printing T18, Pad Printing T20, Pad Printing T25, Pad Printing T38, Pad Printing T40, Pad Printing T45, Pad Printing T70, Pad Printing T90, Pad Printing T95, Pad Printing T100.Features of RUCO Pad Printing Inks:  High-gloss, excellent mechanical and chemical resistance Two-component pad printing inks Glass, Acrylates, lacquered substrates, metal, Thermosets, polyamide, polycarbonate, pretreated PE, PP, PU and rigid PVC.

Pneumatic bench tampon printing machine with the well known "Hermetic System", developed by Tampoprint AG.  Doctoring cup - 90 mm Cycles/hour - up to 1300 Print image size (max) - 85 mm diameter Cliché size - 100 x 215 mm Application:  A. Pen Barrels, pencil body B. Bottles -- Glass and plastic, cosmetic bottles C. Electrical components -- Tube light chokes, tube light holders D. Calculator keys, plastic toys, mugs.

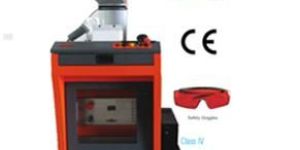

CE certified Markolaser Minnie Series is a compact yet extremely rugged and powerful set of machines.Each machine type has some typical features. For example GP +Plus model has normal properties of marking and limited engraving functions. Micro are fine series of machines with extremely thin yet powerful beam for micro marking, micro engraving and micro drilling applications. (DE+HF) are one of the world's finest deep engraving machines. We are very proud of this machine being a workhorse in deep engraving business.In combination with our advance features and extensive research each machine is further customised after carefully analysing our clients applications.G +Plus 20W is General Purpose machine with additional features of color marking, limited deep after carefully analysing our clients applications. engraving and is a workhorse in tough Industrial conditions.Micro machines are lasers for special applications such as Medical Micro Engraving & Micro Drilling of stainless steel tubes etc. It can mark words even upto 0.2mm in height. It can mark on Titanium, Platinum etc. It is widely used by metal optical frames and implants industry. Power level 20/30W Minnie Markolaser with Indexer 10W,20W,30W,50W DE-HF are deep engraving & cutting laser which can work continuously for 18-20 hrs for deep engraving. These machines are used by tool rooms & metal industries as well as all general purpose application. Power level 20/30/50/70 Watts* +100,000 Hours of expected laser lifetime.* Automation integration options and x-y cross table offers infinite possibilities.* CE marked.* Low energy consumption does away with high energy costs incurred with traditional lasers.* Compact rugged air cooled design.* Red pointer for mark preview.* Optional suction system for longer life and quality.* High speed, versatile & user friendly.* Excellent after sales service by a highly qualified & experienced techincal support team.* Zero consumables & negligible maintenance ensures low cost of ownership.* Class 1 option available.

This machine comes into play when the parts to be printed are cylindrical like pen and pencil tubes and refills. The workpiece is transported to the printing cylinder without a workpiece carrier. With the rotary movement of the pad roller as well as its cylindrical cliché ( with multiple engravings/designs) the workpiece is coaxed into a rolling movement. At the same time the workpieces are rotating on the pad roller via guiding plates. The transport of the workpieces and the delivery of the ink take place in a synchronous rotary movement. With this patented rotary pad printing process extremely high hourly outputs with highest printing quality are achieved. Thanks to its continuous operation. Technical data:Print image1-colour, Cliché cylinder Ø 100 mm, Tampon roller Ø 200 mm, Printing ink adjusted to the workpieceOutputRefills for ballpoint pens Ø 2 mm up to 50.000 parts/hRefills for ballpoint pens Ø 6 mm up to 40.000 parts/hRefills for fiber pencil tubes Ø 10 mm up to 30.000 parts/hTablet tubes Ø 22 mm up to 20.000 parts/h

P50-MS-PR Screen Printed Glass ObjectsMachine with membrane or shaped silicon die. for hot stamping of glass objects previously screen-printed or varnished. Semiautomatic machine with mechanical rotary table. Printing using silicone membrane or silicone die. Optional CNC driven foil advance system with photo-eye cell.

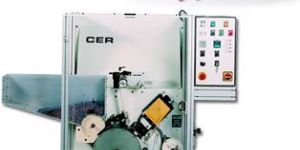

MC-B1: Pencils     Continuous kinematics machine for decoration of rigid cylindrical objects.. Automatic mechanical machine with continuous motion. Up to 5000  parts per hour. Printing using flat metallic dies. Optional second printing head and/or image foil advance system.

DIAX-F1: Mascara Bottles   Automatic 2 CNC axis printing machine. Up to 3000 parts per hour with object registration. Cylindrical, conical or developable shapes. Additional features: automatic feeding, wiper assembly, stacker unit.

High output servo-controlled machine dedicated to hot stamping or to label soft tubes. Available versions for in line or off line production, in simple or double production. Feeding on conveyer with rolls or by pins chain [option]. Servo-controlled printing head on X and Y. Printing registration with camera using offset or screen printed artwork. Quality control with linear camera. Communication through touch screen for parameters like: diameters, speeds, artwork, strokes, temperatures.. Characteristics Tubes diameters: 13 to 63 mm Tubes length: 50 to 250 mm Caps height: 0 to 50 mm Artwork maxi height: 200mm Possibility to print up o 5 mm from the tube shoulder Registration accuracy in both directions: +/- 0,15mm Machine net weight: 2,5 metric tons.

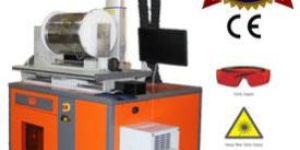

Curve Marking & engraving special purpose Fiber lasers.Step Engraving is a specialized process which enables the user to form precise 3dimensional images inside many surfaces like brass, steel, tool steel, copper etc.Markolaser is one of the leading and possibly one of the few in India to manufacture Step Marking & Engraving CNC lasers. Markolaser Step Marker & engraver is small in size and easy to operate with a high speed, little heat exchange and no distortion of the substrate during deep laser engraving. The marking and engraving is done using the latest and tested European core components which ensures sharp and precise laser beams, are contact free, produce anti counterfeiting effect at very low operation cost. Our laser is recognized for the high quality effortlessly renders due to the CAD/CAM software support, fine and accurate deep laser beams even after many repeats.

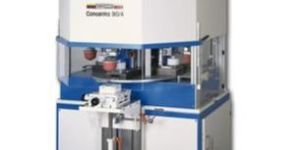

The various “Concentra” models available provide numerous application options. The processing principle, the universal control facility and the high printing speed of this multi – colour printing machine mean that it can do almost anything you want. The “Concentra” is a compact 4- or 6 colour standard tampon printing machine that also offers a variety of options for integration in semi- and fully-automatic automations. The “Concentra” is available in 60, 90,130 and 140mm cup sizes. Printing takes at only one workpiece position.

MARKOLASER Co2 Machines For Packaging, Label & HolographyWe proudly present an all European Laser at an affordable price. Components from France, Germany, Japan, USA and UK ensure ultimate quality and long trouble-free life of the system.Some of the key features of this laser are as under:  Great laser power. Power controlled by PWM (Pulse width Modulation) The cost of the process is low with no consuming materials. Large marking scope, the mark is clear and not easily destroyed. Good cutting Efficiency. Marking depth can be controlled at will. Suitable for a wide range of materials. Outstanding beam quality for a Co2 laser. Special Applications  Well suited for engraving on non-metal and some metals. Widely used in industries like food and Drinks Packaging, Medicine Packaging, Clothing Accessories, Leather, Textile Cutting, Craft and Gifts, Electronics Component, Nameplate Making etc. German source with mark on fly optional. High speed production in automotive, electronics, Label, Holography, medical,cosmetics,‘MARK ON THE FLY’ upto 20mts/min TM Marking logos, linear texts, DataMatrix with serial numbers, counters, date, shift codes, variables, asian characters (Chinese).  Application Industry Soft-Drinks Packaging Industry. Food Packaging Industry. Alcohol Packaging Industry. Machine Packaging Industry. Tobacco Packaging Industry

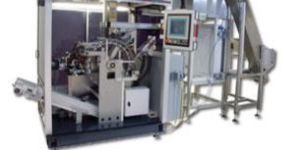

Both side “On” and “Off” printing on the same system Speed upto 3000 toggles/hr Automatic Loading and Unloading of Toggles Precise Registration Principal of Printing Vibratory Bowl feeder transferring Toggles to Linear Feeder(Made in Germany) Indexing Table: Weiss, Germany Station 1: Loading – By Pick and Place (Heavy Duty) Station 2: 90 Degree Rotation of toggles Station 3: Pad printing with Tampoprint SIC 60 machine (Printing ON)-Machine 1 Station 4 : Air Drying Station 5: 180 Degree Rotation of toggles Station 5 : Pad printing with Tampoprint SIC 60 machine (Printing OFF)-Machine2 Station 6: Air Drying Station 7: Unloading to conveyor – By Pick and Place (Heavy Duty) Infrared post treatment on Conveyor (Partially From Germany) Automatic Unloading PLC Control and Touch screen
