Diameter 6.0 in., Stroke 2.0 in., Spring Preload 1,000 lb, Spring Endload 60,000 lb, Damping Ratio 10 %, Weight 90 lb, Materials Zinc Plated Steel, Stainless Steel, Bronze.

Diameter = 2.0 in, Stroke = 2.0 in, Centering Spring Force = 1100 lb, Maximum Spring Force = 2500 lb, Maximum Force = 8000 lb. Weight = 3.3 lb, Material = Titanium, non-magnetic.

Diameter 2.12 in, Stroke 1.25 in, Spring Preload 1100 lb, Energy Capacity 12,000 in-lb, Maximum Force 13,000 lb, Weight 13 lb, Material Stainless Steel.

Taylor Devices’ Fluid Viscous Dampers are applicable to both fixed and base isolated structures, including buildings, bridges, and lifeline equipment. Diagonal brace dampers are available in output levels of 2,000 pounds to 2,000,000 pounds force, with strokes of up to 6 inches. Base isolation dampers are available in output levels of 100,000 pounds to 2,000,000 pounds force, with strokes of up to 120 inches. Standard output for both product lines is linear, where force is proportional to velocity. This allows damping levels as high as 50% of critical, offering truly dramatic seismic stress reduction in any structure. Optional output functions are available, including low damping exponents from 0.3 to 0.9, and relief valve damping offering an essentially flat response above a specified velocity limit. Special fluidic orificing can be supplied to allow thermal movement with minimal resistance while providing lockup for seismic events, thus creating a Force Transmission Device from this product line. For unusual seismic applications, adaptive or semi-active controls can be incorporated into any Taylor Seismic Damper. These products also have non-seismic applications as wind dampers on tall buildings, bridges and other structures.

Diameter 6.0 in, Stroke 2.0 in, Spring Preload 1,000 lb, Spring Endload 60,000 lb, Damping Ratio 10 , Weight 90 lb, Materials Zinc Plated Steel, Stainless Steel, Bronze.X

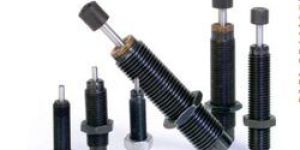

The only shock absorbers that automatically adjust themselves to different impact conditions. A patented exclusive of Taylor Devices, three different series of self adjusting units are available in 16 sizes. W-Series Fluidicshoks are available in four sizes of up to 19,000 inch-pounds capacity. W-Series Crane Buffers are available in eleven sizes of up to 4,000,000 inch-pounds capacity. The Uni-Shok, available in six models, has a capacity of up to 5,000 inch-pounds, suitable for most industrial applications. Metric versions of the Uni-Shok are available for export. The self adjusting shock absorbers are competitive with most custom orificed or manually adjustable designs.

Diameter 1.5 in, Stroke 24 in, Maximum Damping Force 1200 lb, Weight 8.8 lb. Material Steel, Stainless Steel.

Shock Absorber for End of Travel Protection on a Shipboard Fire Control Antenna, Diameter = 3.5 in, Stroke = 2.4 in, Maximum Force = 32,000 lb, Energy Capacity = 63,000 in-lb, Weight = 21 lb, Material = Aluminum, Stainless Steel, Painted Steel.
