Voltage Regulators Dealers in Gurugram

These are essentially auto wound transformers having Single Layer helical - coil mounted on a conventional laminated transformer core.The assembly used consists of self lubricated graphite rollers, assembled on backelite carrier boards that traverse the length of the coil track. The roller mechanism is driven by the servo motor which receives its signal from a voltage monitoring IC Card on the output side of the servo Stabilizer and hence works as a closed loop. L.T.AVRS are Warrantied for 7 Years.

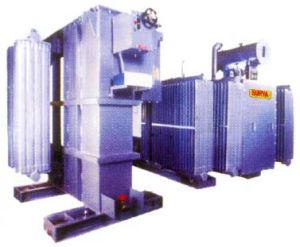

It is seen that despite best efforts by many electricity boards / supply undertakings, due to diverse loading duties arising in transmission and distribution network, voltage at consumer's end is never constant. This low/high voltage is applied to all electrical machines like Transformers, Motors, etc., hence causing loss in substantial electrical energy. Besides voltage fluctuations also play havoc by damaging expensive, sophisticated, CNC/PLC controlled equipment, lighting, elevators, etc. Therefore arising a need to conserve energy as power tariff is ever increasing. We manufacture HT-AVR that are designed to overcome & control voltage fluctuations due to diverse loading duties & line losses arising in transmission & distribution network. These are designed for balanced as well as unbalanced loads & input voltage supplies. HT-AVR operates ON Load directly on the HT line and provides a stabilized HT output voltage +/-1% that is fed to the step down transformer resulting in constant/stable LT output. The line diagram is given below showing the same.   HT-AVR supplies rated Stabilized Voltage to the Transformer, thereby the utilization of the transformer will be up to full rated capacity and is protected from High/Low voltage fluctuations Low losses as voltage fluctuation is removed from the system Single unit of HT-AVR can be connected to multiple Distribution Transformers Reduction in Breakdown of Electrical Equipment Power Saving (Reduction in Power Bills) Improvement in power factor and reduction in MDI Better efficiency in plant Being categorized as a power saving device, the payback period for the cost of our HT-AVR is from 12-15 months depending upon the input voltage and no. of working hours of the plant Key Features   Compact Design Minimum Power Losses Better Efficiency Low Input ranges can be stabilized in High Ratings Low Response Time Low Maintenance Trouble Free Operation Long Service Life Space Saving Reduced Installation Cost Reduction in Electricity Bill

We are offering automatic voltage regulator (avr) pragati electrocom offers reliable protection against large mains voltage fluctuations to air conditioners. They are available in 45 kva 1ph & 3ph. These products are specially designed for the telecom industry. The prime advantage of avr is that it protects the appliances from being damaged due to the voltage fluctuations. Features •high efficiency •light weight •wall mounting •digital display of voltages and currents. •quick corrections •works on a single as well as three phase ac supply •accurate •voltage regulation for a wide input range

We deals in supplying of wide range of Automatic Voltage Regulator.

Voltage Regulators, Protection Relays, Cable Termination Accessories

Static Voltage Regulator
