Wetpoint Aqua Equipments Private Limited Malanpur, Gwalior, Madhya Pradesh

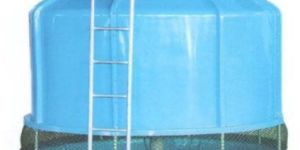

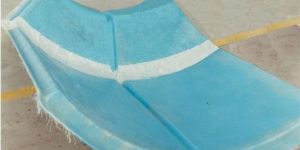

The tower casing is made of tough fibre-glass reinforced plastic (FRP) and has sufficient structure strength to withstand high wind velocities and vibrations. UV - stabilized resin is used along with gel coat for longer life.it is resistant to local impact and even if slight damage occurs, local repairs can easily be done. The portion of casing housing fill and eliminator has a round cross section. The water collection sump, also of FRP, is leak proof and avoids water spillage.

Automatic rotary sprinkler system made of Aluminum alloy or cast steel material, with rotary head and sprinkler pipe distributes the hot water over the entire space of the filler. Sprinkler pipes are non-clogging, require low pressure to operate and assures uniform water flow with minimal operating pump head. The FRP eliminators attached to sprinkler pipe are specifically designed for low pressure drop and minimizes the drift loss of water.

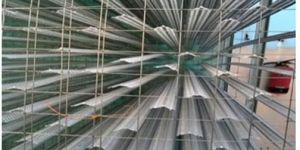

The Splash Bars section is designed to bring intimate contact of water and air so as to facilitate heat and mass tranfer at the same time aiding in proper and even distribution of air and water over the cross sections, while maintaining minimum pressure drop. The Splash Bars are of C section and perforated from virgin PVC for excellent resistance to corrosion and give maximum area wettage.

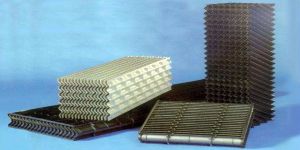

PVC Honey comb double edge folded fills are used in counter flow induced draught cooling tower. The fills section is designed to bring intimate contact of water and air so as to facilitate heat and mass tranfer at the same time aiding in proper and even distribution of air and water over the cross sections, while maintaining minimum pressure drop. The fills are of honeycomb section and are vacuum formed from virgin PVC for excellent resistance to corrosion and give maximum area wettage.

The fill is of rigid Polyvinyl Chloride (PVC) and is of honeycomb design with very large contact surface area. The fill splits the air and water into several streams, increasing the time of contact and also heat transfer between water and air. The fill is in modules and is packed in the tower casing without ant cutting for curves.

The Structure of Cooling tower is fabricated of Pultruted FRP profile which are free from corrosion. The whole cooling tower is fabricated in pieces & bolted together to facilitate easy shifting

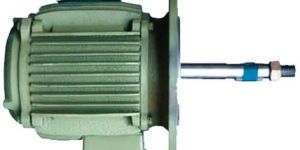

The motors are totally enclosed (IP55), Flange type , 420 V, 3 ph, 50 Hz., induction weather proof with extended shaft and are specially designed for cooling tower application.

The motors are totally enclosed (IP55), Flange type , 420 V, 3 ph, 50 Hz., induction weather proof with extended shaft and are specially designed for cooling tower application.

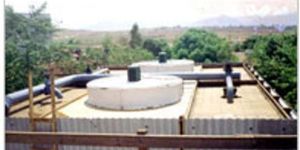

The Hot Water Distribution System is of open Gravity type and is constructed from boiling water proof marine plywood with poly-propylene target nozzles.

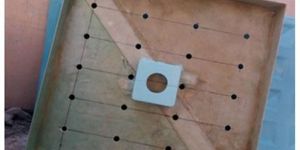

In cross flow induced draughtcooling tower the FRP Hot Water Basin is used to distribute the water evenly over the cross section of the tower.

For FRP Cooling Towers: The fill is of rigid Polyvinyl Chloride (PVC) and is of honeycomb design with very large contact surface area. The fill splits the air and water into several streams, increasing the time of contact and also heat transfer between water and air.

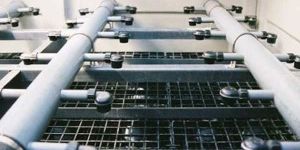

The PVC Flower nozzles are used in hot water basin to sprinkler water all over the splash bar area & operates under gravity

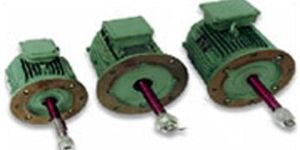

The fan drive motor is in IP55 weather proof design. The fan is directly driven by the special extended shaft motor made from EN8 steel mounted facing downward on a mounting frame on the top of the Cooling Tower.

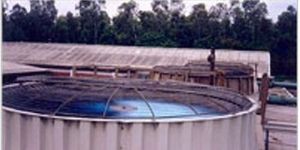

Our cooling towers are fitted with elevated fan cylinders in HDG Steel or FRP material which enhance the air movement, completely eliminating the chances of re-circulation of exhaust air and thereby increasing cooling tower efficiency.

Fan Blades are made up of fibre glass reinforced epoxy resins. These blades are hollow in construction and have been designed with most efficient aero foil section.

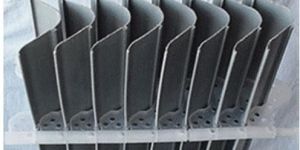

Drift Eliminators, made out of UV resistant rigid PVC, are designed to remove entrained particles from air stream efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator.

Drift Eliminators, made out of UV resistant rigid PVC, are designed to remove entrained particles from air stream efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator. Water droplets are separated from the air drift at the three direction change points on the drift eliminator. WETPOINT Drift Eliminators remove more than 90% of the droplets larger than 65 microns.

Shape : Round Shape

Color : Blue

Corrugated asbestos cement board casing is applied vertically joints are lapped and sealed for water tightness. Corners are covered with FRP corner rolls. Corrugated asbestos louvers are located on wide centers on the sloping louvered walls. They are supported by tower columns and louver supports. ( FRP casing and louvers can be provide if desired.)

Specially designed energy efficient fans are of induced-draft axial type with adjustable pitch. Material chosen are non- corrosive of plastic, FRP or aluminum alloy. The high efficiency design ensures low running cost and the lowest possible noise level. Fan blade pitch is adjustable and dynamically balanced.

Automatic rotary sprinkler system made of Aluminum alloy or cast steel material, with rotary head and sprinkler pipe distributes the hot water over the entire space of the filler. Sprinkler pipes are non-clogging, require low pressure to operate and assures uniform water flow with minimal operating pump head. The FRP eliminators attached to sprinkler pipe are specifically designed for low pressure drop and minimizes the drift loss of water.

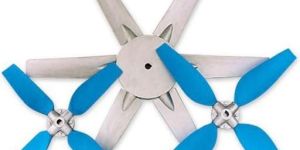

The Aluminium fan is an axial flow, multiblade version with blade section and adjustable blade pitch. The fan is designed to deliver large volumes of air at low power consumption and low noise generation. The fans are dynamically balanced for smooth operation, longer bearing and more life including that of the supporting structure.

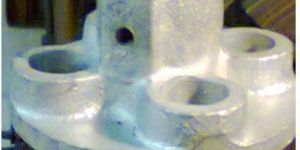

6Q Yoke : This is known as flexible coupling & made up of fine grade of cast iron and being used with rubber inserts in conjunction with propeller shaft which propel the gear box & fan through electric motor .
