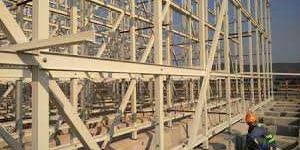

Pultruded Cooling Tower
The Structure of Cooling tower is fabricated of Pultruted FRP profile which are free from corrosion. The whole cooling tower is fabricated in pieces & bolted together to facilitate easy shifting The tower casing is made of FRP which encloses the surface area serves to isolate air stream, which passes over the surface area.The casing shape is of curtain type which reduce frictional resistance of air and aid air flow pattern.
...more
jet cooling tower
Natural draught jet type cooling tower works on water jet principal. In this system the required amount of water to be cooled is sprayed from top of the cooling tower through special jet nozzles. When water comes out of nozzles, it forces the air column in the downward direction of the cooling tower resulting in the low pressure zone inside of the cooling tower. Due to this process atmospheric air comes inside the cooling tower for the required heat transfer of the hot water to be cooled. Tower vertical columns, cross members & supporting members are of heavy MS angles, Tee & channel sections coated with FRP for resistance against corrosion.
...more
Dry Cooling Towers
Cooling Tower Sprinkler
Automatic rotary sprinkler system made of Aluminum alloy or cast steel material, with rotary head and sprinkler pipe distributes the hot water over the entire space of the filler. Sprinkler pipes are non-clogging, require low pressure to operate and assures uniform water flow with minimal operating pump head. The FRP eliminators attached to sprinkler pipe are specifically designed for low pressure drop and minimizes the drift loss of water.
...more
cooling tower nozzle
Cooling Tower Motors
The motors are totally enclosed (IP55), Flange type , 420 V, 3 ph, 50 Hz., induction weather proof with extended shaft and are specially designed for cooling tower application. Fans are directly driven by electric motors in small models and coupled through gearbox in larger models subject to the tip speed of the fan.
...more
cooling tower flow control valves

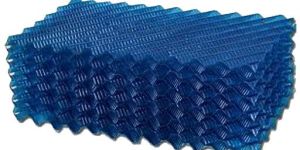

Cooling Tower Fills
For FRP Cooling Towers: The fill is of rigid Polyvinyl Chloride (PVC) and is of honeycomb design with very large contact surface area. The fill splits the air and water into several streams, increasing the time of contact and also heat transfer between water and air. The fill is in modules and is packed in the tower casing without ant cutting for curves. The air pressure drop through the fill is negligible. The fills are available with flute height of 12mm and 19mm with sheet thickness of 0.15 mm and 0.20 mm . For Timber Cooling Towers: Our cooling towers are fitted with “Foster Wheelers” stack type fill arrangement, comprising of splash bars fixed with transverse stringers making the fills into removable trays. This arrangement makes an excess to wet surface area and eliminates any chances of fill collapse. The splash bars and trays are made from As-Cu treated pinewood and are rectangular in cross-section.
...more
Cooling Tower Fans
Cooling towers are fitted with FRP Axial Flow Fans with Aerodynamic efficiency and significant saving in higher operating cost. Fan Blades are made up of fibre glass reinforced epoxy resins. These blades are hollow in construction and have been designed with most efficient aero foil section.
...more
Cooling Towers
Designed for maximum service life, dependability and performance. Readily adaptable for industrial processes, d. G. Sets and air conditioning. Maximum resistance against very hot temperatures and water borne contaminants. Consumes minimum power due to high efficiency f.r.p axial flow fans.
...more
cooling towers maintenance
