Durga Valves Pvt. Ltd. Ichapur, Howrah, West Bengal

DVPL are manufacturer & supplier of Zero Velocity Valve for stopping reverse flow in case of failure of pumps. The valve consists of a spring loaded closing disc which is mounted on a central shaft and supported by guide rods. Valve is provided with a bye pass arrangement. Valves are generally supplied with flanged but can also be barrel ends, if so desired.The springs are designed in such a manner that the valve remains full open when 25% of designed velocity is achieved. In case of closure of pump, disc starts closing in relation to decrease of velocity and fully closes when velocity drops near to zero. Thus upstream water column is prevented from creating water hammer wave. Bye pass arrangement keeps pressure balance on both sides of disc. It also prevents creation of vacuum in downstream side.

Y-type Globe Valves design, is an alternative for the high pressure drop, inherent in Globe valves. Seat and stem are angled at approximately 45 degrees, what gives a straighter flowpath at full opening and offer the least resistance to flow. They can be cracked open for long periods without severe erosion. They are extensively used for throttling during seasonal or startup operations. They can be rod through to remove debris when used in drain lines that are normally closed

DVPL Slanted seat check valves are so designed that the seating plane makes an angle with the vertical plane to reduce the swing angle and closing time. These check valves can be used in all non return applications. Better closing characteristics due to the smaller swing angle of the disc. Closing time is reduced compared to the other check valve types.

Tilting Disc Check Valve is the most versatile and reliable check valve DVPL Company has to offer. This valve offers significant energy and cost savings over the life of the valve due to its large flow area and low head loss characteristics. Short disc travel from full open to full close provides the ability to close very rapidly or very slowly to avoid contributing to slamming and surges. The tilting disc check valve is also offered with an upper hydraulic dash-pot to aid in disc closure in multiple pump systems even after a power failure. We continue to expand our product offering to those customers who require specialty valves for applications where opening and closing times are critical to control flow reversal and reduce water hammer.

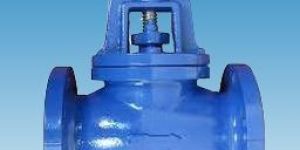

T-type Globe Valve design is the most common body type, with a Z-shaped diaphragm. The horizontal setting of the seat allows the stem and disk to travel perpendicular to the horizontal line. This design has the lowest coefficient of flow and higher pressure drop. They are used in severe throttling services, such as in bypass lines around a control valve. Tee-pattern Globe valves may also be used in applications where pressure drop is not a concern and throttling is required.

DVPL Foot Valve widely accepted by Municipal Corporation, Irrigation Authorities, Water Supply Authorities, National Thermal Power Corporation and Industrial users. Designed as per latest editions of IS 4038 specifications.APPLICATIONSFooter Valves are installed in suctions side of the pumps to avoid flow reversal from pump to the sump, in order to maintain pump priming. They also prevent entry of foreign particle into pump through suction pipe. These valves are suitable for having clear water within the limits specified by IS:4038.SPECIAL FEATURESExcellent design features Right and sturdy design with minimum loss of head across the valve. Perfectly flat seating faces for good sealing. Long service life.

Sluice gates, which can be mounted into the channel or on the wall, are manufactured in a wide range of models including manual, electric driven or pneumatic types. We manufacture sluice gates in various dimensions from 150x150 mm up to 4,000x4,000 mm with the casing and frame thickness calculated regarding water pressure.

DVPL Cast Iron Thimble Mounted Sluice Gate. Offered range of gates is used for controlling flow of water, slurry and sewage. These gates are manufactured by using best quality of cast iron procured from authentic vendors of market.

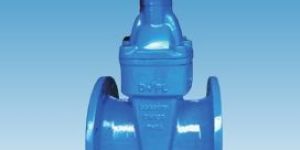

DVPL gate valves (Soft seated) Resilient soft seated gate valves with body bonnet of DI of grade GGG40/GGG50, wedge fully rubber lined with EPDM and seals of NBR and valve should be 100% leak proof with face to face dimension as per BS-5163-89

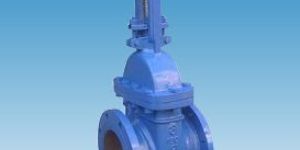

DVPL make Sluice Valves widely accepted by Municipal Corporations, Irrigation authorities, Water supply authorities and other Government and Industrial users. They are designed as per latest editions of IS Standard bearing ISI mark for Rising Spindle Sluice Valves.

DVPL Resilient Seated Check Valve is of lightweight design and construction of ductile iron for durable extended life performance. Valves can either be used above ground or buried service applications and are maintenance free.

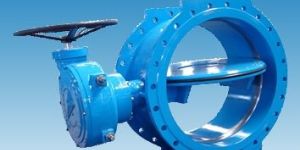

DVPL offers complete rage of resilient seated butterfly valves wafer type, lug type, Double flanged, Full flanged, Bi directional and tight shutoff at elevated temperatures and pressures. We offer high Cv and lower pressure drop valves

DVPL offers complete range of resilient seated butterfly valves wafer type, lug type, double flanged, full flanged, Bi directional and tight shutoff at elevated temperatures and pressures. We offer high Cv and lower pressure drop valves.

DVPL Open channel sluice gate is predominantly used in sewage or open channel of water. The gates are fixed between two parallel walls used to isolate the flow from and to the open channel. This light weight sluice gate helps in faster erection. Such type of sluice gate suits both seating & unseating water head.

DVPL make Sluice Valves widely accepted by Municipal Corporations, Irrigation authorities, Water supply authorities and other Government and Industrial users. They are designed as per latest editions of IS Standard bearing ISI mark for Non Rising Spindle Sluice Valves.

DVPL Multi Door Non Return Valves conform to IS 5312, Part-2 standard for dimensions, materials of construction and constructional features, as per the need of the application. The doors of the Multi Door Non Return Valve are hinged on Diaphragm. Door Rings and Diaphragm Rings are precisely machined, Ground, Lapped to get required finish for achieving zero leak tightness. Number of Doors are two for sizes 600 to 800mm, three for sizes 900 & 1000mm and four for sizes 1100 & 1200mm, For 2000mm eight doors design. By-pass arrangement is provided at specific requirement from customer, and the s

DVPL Foot valve is a kind of energy-saving valve, usually installed at the bottom of pump suction pipe to prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs in the valve cover, so the pipe will not be easily clogged up.

DVPL offers entire verities of knife edge gate valves which include Bolted Bonnet metal seated; Bolted bonnet resilient seated, Standards metal seated, Standard resilient seated End connection will be lug type & lug type. We offer casted valves and fabricated valves. DVPL offers Hand wheel operated valves, Gear Unit operated valves and Actuator operated valves.

DVPL Research and Development wing has developed unique characteristic product to meet the dynamic site situations. We cover entire product range.

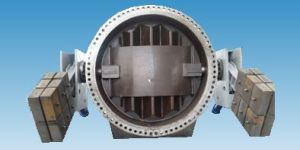

2800mm HOPD* Butterfly Valves DVPL has successfully designed, manufactured, tested and offered to TPIA as per AWWA C516-10 on 10th March 2017. DVPL's Research and Development wing has developed complete HOPD range up to 4000mm BFV's as per national and International standards. Salient design features of high end HOPD BFV product are as follows:•Hydraulic drive from both ends for enhanced stability of performance•Zero maintenance product.•Having Nitrozen gas back up in cryogenic state.•Sturdy Box-Type cylinder mounting also enabling enough space for various instrumentations•Body mounted cylinder away from Floor mounted design •All feedbacks from the valve are provided and can be controlled from a Centralized Command Centre* HOPD: Hydraulically operated pump discharge valves are actuated with a hydraulic power-pack and single-acting cylinders. The linear stroke of the cylinder is converted into 900 rotary movement of the valve disc. Auxiliary support are provided for open/close of valve disc in a controlled manner. In the case of an emergency, the valve disc can be closed using the force of gravity acting on the mounted counter-weights.We also having flexible type design to meet the enhanced customer special requirements and to meet the dynamic site situations.

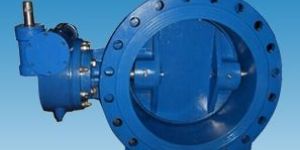

DVPL is having 40 years of sound experience in manufacturing and supplying of actuator operated Butterfly valves. DVPL offers complete range of butterfly valves .DVPL's Research and Development department has developed India's best product by lesser operating torque. DVPL is only company offering ZERO leak products in metal to metal Butterfly valves. DVPL installs internationally approved gear units. DVPL maintains the 0.05 micron between two ends of operation. Due to high accuracy in production and components our operating torque is lesser and life of the valves and actuators are 50% more than other competitors which made us to stand tall in this variety.

DVPL's float valves for agricultural applications include the stock-proof trough valves, high flow float valves. Offering a comprehensive selection of specialised valves that are suitable for dairy and livestock troughs and tanks across a range of pressures.

Fire Hydrant Valves System is an effective and efficient means of extinguishing large fires, Hydrant system enables the fire fighter to attack the seat of the fire from a distance. Hydrant valves are outlets for delivering water with tremendous pressure so as to quench the fire.

DVPL offers versatile design with 80% lesser weight than the conventional type swing check valves.• Simplifies piping.• Reduces thermal and seismic considerations.• Optimizes space utilization.• Lower installation costs.• Reduces pipe supports requires less number of man-hours.• Duel discs open to 85 degrees.• Low cracking pressure and overall pressure drop Ensures positive closure.• Spring-loaded discs calculated to increase the responsiveness of the discs.• Alleviates water hammer and resultant damaging effects.• Extended long- leg spring.• Prevents seat wear caused by scrubbing
