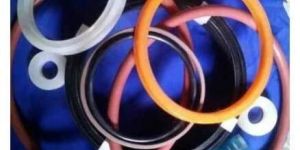

Pneumatic Seals Dealers in Howrah

• Type: Pneumatic Seals
• Material: Polyurethane
• Shape: Round
• Thickness: 10-20mm
• Color: Blue
• Condition: New
• Finishing: Polished
• Packaging Type: Packet,Carton Box
• Outer Diameter: 5mm,10mm,20mm,
• Warranty: 1 Year
• Country of Origin: India
• Inner Diameter: 30mm,40mm,50mm
• Suitable For: High Temperature
• Sealing Type: Hydraulic Seal
• Automation Grade: Automatic
• Specialities: Unbreakable,Heat Resistant,Good Quality,Fine Finish,Easy To Install
• Size (Inches): 4Inch,6Inch,
• Pressure (Bar): 10 Bar
• Seal Width: 10mm

• Material: TPU
• Color: Green、Blue
• Hardness: 88-92 Shore A
• Media: Air
• Speed: ≤1.0m/s
• Temperature: -35
• Pressure: ≤1.6Mpa

EU rod seal for piston rods in pneumatic cylinders combines three functions: sealing-wiping-fixing.Produced based on the PU material, our EU seals perform an absolute sealing with its dynamic nutring sealing lips and its joint dust lips. Being used safely for all pneumatic cylinders.Pneumatic seals are using compressed air to seal the gap of the rotating shaft without leaking the working medium. The annular groove is machined on the casing. And the gap of the rotating shaft is blocked by the compressed air to prevent leakage of lubricating oil.Advantages No danger of corrosion. No dust corners. Low friction values and high length of operation. Suitable for use in dry as well as oil-free air after initial assembly lubrication. InstallationIt can be assembled into closed groove with tight hand force. EU Seal does not need additional element such as circlip for axial fitting within the housing. We recommend using special assembly tool. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil.   All our seals are packed and sealed at the point of manufacture to ensure the highest quality. They are stored out of sunlight and kept in a temperature controlled environment until dispatch.

• Material: Rubber
• Brand Name: Suja Rubber
• Shape: Round
• Country of Origin: Made in India
• Color: Black
• Usage/Application: Industrial

We offer premium quality seal kit to our esteemed customers. Manufactured in compliance with the industry set norms and regulations, these seal kits are known for their dimensional accuracy and longer functional life. Owing to our rich vendor base, large production capacity and spacious warehousing unit, we have been able to offer these seal kits in bulk quantities.

SealsLike the Hydraulic system, Pneumatic systems require a set of special seal designs for its proper functioning. As the working fluid air or other gases are poor lubricant, care must be taken while designing the seals. In a pneumatic cylinder the major functions of pneumatic seals are to restrict the escape of air or the entrance of foreign materials in the system, maintain alignment of the rod and the piston and in certain cases enable the system to work maintenance free for long periods of time even without lubrication. In comparison to Hydraulic cylinders, Pneumatic cylinders typically demand higher operating speeds (upto 4 ms), lower friction pneumatic seals and operate at much lower pressures (max 16 bars). Thus the friction created by the seals becomes a very important parameter while designing the seals. Pneumatic Seals may be used for rotary and reciprocating motion. Common pneumatic seals include: rod seals, piston seals, symmetrical seals, V-Rings, wipers, wear rings, static seals, back-up rings, o-rings etc. Pneumatic seals can be single or double acting. Single acting pneumatic seals are used for one axial direction only. Double acting pneumatic seals are used in both directions for a reciprocating motion. Pneumatic seals can be made of a variety of materials: Polyurethane, Nitrile, Viton, Silicone, EPDM and PTFE.

We, hailing from West Bengal, are the preeminent Manufacturer and Supplier of the Pneumatic Seals across the country. Made as per the best applicable standards, our Pneumatic Seals ensure durability, effective functionality and long-lasting quality. Furthermore, we provide these Pneumatic Seals in varied specifications to match our client’s liking. Also, we make all the arrangements like packaging and shipping to safely and steadily deliver these reasonably-priced Pneumatic Seals.

Pneumatic Seals, Polymer Products, Earthmoving Spare Parts, Gaskets, Bucket

pneumatic rod seals, Metallic Wiper Seals, Compact Piston Seals

Pneumatic Seals, pneumatic jacks

Seals for Hydraulic & Pneumatic Cylinders, Viton Rubber Diaphragms
