S. G. Electrochemicals Howrah, West Bengal

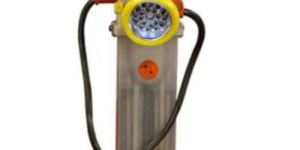

LIGHT SOURCE – BULB (SCREW TYPE) – 6V., 0.5 AMP.LEAD-ACID BATTERY 6 VOLTS 4.5 AH SEALED MAINTENANCE FREE CONTINUOUS WORKABLE SERVICE – 8 / 9 HRS. BUILT-IN-CHARGER WITH CHARGING SOCKET SQUARE BASE 7.5 CMS. X 7.5 CMS. HEIGHT WITH HANDLE 21 CMS. LENGTH OF CABLE BETWEEN HANDLE FITTED TOP – COVER & DETACHABLE HEAD PIECE UNIT – 1.5 MTS. INPUT CHARGING VOLTAGE – 230 VOLTS A.C. TOTAL WEIGHT – 1.550 KGS. (APPROX.)

• Built in Charger with removable Charging chords.• Power source : SMF Battery 6 volts & 5.5 Ah.• Light source : Single LED of 4000 Lux Rechargeable from 230 volts A.C. Mains.• Continuously lighting – 36 hours.• Weight – 1.5 Kgs. (approx.)

The Lamp is lighter in weight.The Lamp in all respects is very low-maintenance type.Light Out-put is better.Spares inventory is very low.Greater satisfaction for users.The Battery has;Translucent body for easy monitering of electrolyte levels. Moulded in Belt-loops,Inter-cell connection through Fuse assembly.Dual facility for re-charging from any convensional charging systems.Economical in price

The company has established itself in the market as a prominent hand held search light manufacturing company in India. We are offering an extensive range of long range hand held search light which is available 12 V SMF Battery....

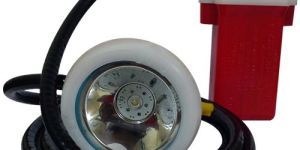

Power LED of 1 watt, 3.6 volts and 110 lumens.Life of LED 50,000 hours (approx.) Light out-put of Cap-Light 3000-5000 lux (approx.) at high intensity mode & 2100-2800 lux (approx.) at low intensity mode. Lithium-ion Battery of 3.6 volts & 4.5 Ah capacity. Rating 350 mA (max.)Total weight within 460 gms ( approx ).Rechargeable through Head-piece unit from 4 volt (max.) charging source / charger unit.Operation through Rotary Switch fitted on the Head-piece.Battery container unit having moulded-in Belt-loops for tie-up on the waist.Service back-up (non-stop) around 48 hours against every full-charge.Intrinsically safe for Gas Group- I. Degree of protection level – I P 65.The Cap Light is free from any electronic circuit for trouble free service & suitable for Indian Mining conditions.

POWER LED – 1 WATT & LIGHT OUT – PUT 110 LUMENS.BATTERY LEAD-ACID TYPE 4 VOLTS, 9AH ( TRANSLUCENT ). CONTINUOUS WORKABLE SERVICE – 135 / 210 HRS. AGAINST EVERY RE-CHARGEBUILT-IN-CHARGER WITH CHARGING SOCKET.SQUARE BASE - 6.5 CMS. X 7.5 CMS.HEIGHT WITH HANDLE - 29 CMS.LENGTH OF CABLE BETWEEN HANDLE FITTED TOP-COVER & DETACHABLE HEAD-PIECE UNIT – 1.5 MTS.TOPING – UP THROUGH FILLER PLUG ON THE BATTERY BODY AT AN INTERVAL OF 3/4 MONTHS.RE-CHARGE TIME 14/16 HRS. WITH INPUT

Light weight ( 560 gms. approx. including 4 nos. Dry Cells & 250 gms. approx. excluding 4 nos. Dry Cells ) with plastic body cylindrical in shape fitted with milky white Reflector covered under front glass. The Reflector is assembled with Bulb ( filament type ) of 6 V., 0.5 Amp. for YELLOW Light & LEDs for RED colour 10 (ten) nos. in circular module as well as GREEN colour 8 ( eight ) nos. in circular module.Operating Voltage – 6 Volts by 4 nos. Dry cells ‘R - 20’ size of 1.5 volts each .The Bulb ( YELLOW light ) is operated by main Sliding-switch & the LEDs ( RED & GREEN ) is operated by a small Toggle-switch provided nearby the Sliding-switch provided for YELLOW Light. The central position of the Toggle-switch is “OFF” & left or right positions are “ON” for RED & GREEN Colours respectively.SPECIAL FEATURES : Only single colour-source
