Spring Hangers Dealers in Howrah

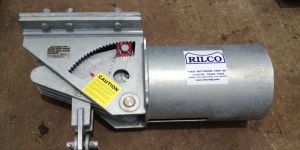

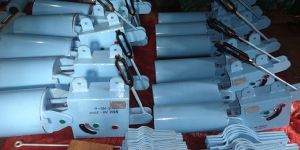

Our constant supportshangers are manufactured mainly in horizontal and vertical models. According to MSS-SP-58, the maximum recommended variation from the operating load for variable spring hangers is 25 %. Constant Spring Hanger Supports are use when this variation exceeds 25%. Our Constant Spring supports are coldpreset to the load specified by our client’s in our factory.

• Application: automobile

We introduce ourselves as a supply source in the field of Spring Hanger Support, Pipe Hanger Support, Allied Pipe Suspension Equipment with light structure etc being used at your Plants, & Projects etc. TECHNO INDUSTRY- HOWRAH, is one of the leading Brand and reputed Manufacturers of these products since last 20 years and have almost supplied to all core industries like, Power sector, Cement plants, Chemical Fertilizer process industries … etc.

We offer 30 size of group A to O and three series prefixed CS1, CS2 & CS3 for both horizontal and vertical model. 30 sizes constant spring support allows a load range from 25 kgs. to 16020 kgs. and maintains a travel range upto 300mm.

Constant spring support is specifically used to accommodate constant effort load, excessive movement of the pipeline due to high temperature and pressure of thermal movement. Constant load takes place through its range by a perfect counter balance crank lever where load and spring movements through the pivot ensure the minimum kinetic variation.     RangeWe offer 30 size of group A to O and three series prefixed CS1, CS2 & CS3 for both horizontal and vertical model. 30 sizes constant spring support allows a load range from 25 kgs. to 16020 kgs. and maintains a travel range upto 300mm.   Special Range/DesignApart from our specified standard design and range of product, we undertake jobs specially designed by us to fulfil client’s requirements i.e. constant spring support can supply more load/travel than that provided in our standard selection table. Special type of fixing arrangement can be designed apart from our standard.
