Advance Industries Gokul Road, Hubli, Karnataka

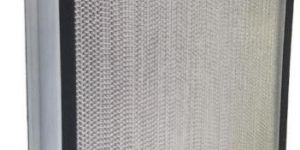

Clean Air is Vital in all Processes. The prime function of a filter is to protect the system from pollutants (unwanted particles) present in the air from fouling Applications of these filters very vast not limited to Public Buildings, Automotive industry, Power systems, Food and Beverage industry, Hospitals, Microelectronics, Semi-conductor & optics, Life Sciences, Nuclear Industry etc Deep Pleat HEPA/ ULPA Filters FEATURES • Compact Design • Pressure drops up to 80 Pa g 1.25 nn/s • Higher Filtration area • Manufactured in a cleanroom • Wide range of std. sizes• Rigid design • Resistant to cleaning and decontamination processes • High strength Headers available

Brand Name : Advance Industries

Shape : Square

Condition : New

Usage : Filtration In Cleanroom & Laf Benches

We are one of the most reliable names in the domain of providing exceptional quality Rare Earth Magnetic Separator. We are a celebrated name offering cost effective, durable, perfectly designed, and highly reliable Rare Earth Magnetic Separator. Our pool of experienced person and employees keep a check on the Separator and make certain that the offered range commensurate to the global standards.   Features : No consumables required. Dry cake discharge. Excellent efficacy even for separating materials having weak magnetic properties, such as, carbide and scale. Superior contamination removal means improved surface finish, increased life of grinding wheel, reduced dressing frequency, increased life of fluid. Kind to the environment, kind to the pocket by reducing the consumption of filter paper. Power consumption is Just 40 watts as compared to regular Rare Earth Magnetic Separator that consume 180 watts of power. Pl Note – If you Compare with Indian Standard Magnetic Seperater 20% of scale is removed from Fluid, When Compared with Imported Magnetic Separater 90- 95% of scale is removed from fluid. After Schedule time to replace the Coolant also Coolant will be as brighter than new fluid. Some of the application areas that benefit from Rare Earth magnetic Fluid Separation : Surface grinding. Center less grinding. Internal / external grinding. Cold rolling mills Roll grinding Electric discharge machines. Thread grinding. Washing fluids. Honing Gear grinding   Can be used for Compact band filters or paper band filters to reduce the consumption of Filter Paper Rolls. Etcs

Usage : Removing Iron Chips And Ferrous Particles

Voltage : 110V, 440V

Automatic Grade : Automatic

Power : 1-3kw, 9-12kw

Driven Type : Electric

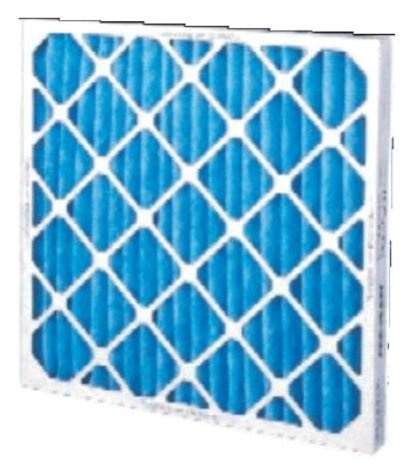

An Air Filter is a device which removes unwanted large matters from the air. These particles tend to foul the system or human health. Hence Air is supplied in the automobiles, pharmaceutical industries, hospitals, optics fiber industry etc. has filters to remove dust, hair, insects, pollen, fibers, microbes, viruses etc.   FEATURES • Low pressure drop media resulting in lower energy costs• Compact design • Large Media surface area • Fully Supported Media available • Robust construction • Easy installation • Media bonded to case to eliminate air bypass • Progressively built up media • Wide range of media supports

Type : Washable/ Disposable Pleated Panel Filter

One of the trustworthy Manufacturers, Exporters & Suppliers; we are instrumental in offering Paper Band Cum Magnetic Coolant Filter. We have rich industry experience and thus, we bring forth perfectly designed, affordable, and highly trusted Paper Band Cum Magnetic Coolant Filter. Backed with a team of well-informed person and workers; they keep a close coordination and check on the Coolant Filter to ensure the quality and performance.More about Paper Band Cum Magnetic Coolant Filter : Paper Band Filter are designed for filtering ferrous & non-ferrous particle with high degree of purification using paper as filter media to increase life of coolant and improve surface finish of the product Recommended for filtering coolant on grinding, honing and super finishing applications. The coolant first gets filtered on magnetic separator where 90% of the ferrous particles are removed. Then the coolant flows through filter paper and remaining ferrous and non-ferrous particles are separated. The unit functions automatically when this sludge accumulates on the paper.capacity:30 lpm to 6000 lpm. These systems can also be supplied with chilling units.

We are one of the most reliable Manufacturers, Exporters & Suppliers in the industry offering Oil Chiller & Filtration System. A renowned name bringing forth cost effective, durable, perfectly designed and highly trusted range of Oil Chiller & Filtration System. It is widely used for machine tool applications. We are staffed with a pool of knowledgeable person and workers; they keep a check on the Filtration System to ensure the quality and performance.   Oil Chilling MST : Capacity of oil Or coolant  Temperature,  requirement of + Temperature  to suit your  requirement, During machine operation, tremendous heat is generated. This generated heat develops dimensional variation such as expansion and distortion in the job under machining. To achieve dimensional accuracy, it is necessary to maintain job temperature within specified limits. This can be achieved effectively by maintaining coolant temperature by incorporating cooling Equipment’s of appropriate capacities in coolant Or oil cycle circuits.

We are one of the most sought after Manufacturers, Exporters & Suppliers, instrumental in offering Magnetic Coolant Filter. We bring forth precisely fabricated, affordable, and highly reliable Coolant Filter. With the help and support of our well-informed professionals and workers, we deliver the same only after complete approval of experts and engineers. Manufactured in 3 different type of SS drums. Plain, Serrated and Ring type for effective removal of ferrous contamination from coolant. The geared motors of heavy duty type and gives trouble free service for number of years. Capacity 30 lpm. To 1000 lpm. The above magnetic separator is with Aluminium steel drum, with powerful magnets inside. The Ferriate magnetic separators are also available as per customers requirement.

High-quality grinding discs from renowned manufacturers are being used. Tool life depends on material, premachining of work pieces, removal thickness, and required surface quality.Both ceramic and resinoid bonds aswell as abrasives made of ALU OXIDE are used, depending on theapplication.Work piece reception is a steep taper with bayonet fixing. A simple loosening of screws and easy accessibility of the work area allow for a grinding disc change within a very short time.With horizontally arranged spindles the change takes place from the top,with vertical machines from the sidevia a tool change support. A pivoted tool change gantry can be used optionally.

We are Manufacturer, Exporter & Supplier of Coolant Filter Paper that is durable, cost effective and reliable. Sternly fabricated in the up-to-the-minute manufacturing, designing unit; we have well-equipped, most up-to-date machines, cutting-edge technology. Working with a team of veteran employees and professionals, they make certain that the Filter Paper is as per the set global standards.   Details The filtration efficiency of Advance Coolant Filter Media is far superior and consistent. Advance offers wide range of filter Media made from fibres such as Polyester, Polypropylene, Viscose and Mixed Fibres. The Advance range offers excellent choice to work with ‘Application Specific’ Filter Media, depending upon the HRM OR CRM specification and Coolant in use. Such an option to reach the optimum is never available with local filter paper. The Technical Specification of Advance Filter Media is consistent and precise along the entire span of the Media. Filter PaperAir Permeability of Advance Media for a specific grade is far superior and can be verified and ascertained by any competent testing laboratory. This is not so in the case of Local Media. This high air permeability offers greater through put yet maintaining the consistent high degree of filtration efficiency. It has been found in some cases that an Indian Media which was claimed to have a micron efficiency of 10µm, on being tested at an independent Foreign testing laboratory was found to be in the range of 100µ – 125µ. With superior Filtration efficiency of Advance Media, the life of the ‘Machining Tool’ used on machines such as grinding, honing, lapping etc is considerably longer. The longer ‘Machining Tool’ life very well justifies the marginal high investment in using Advance Filter Medias. The finish of the machined component is achieved efficiently with improved coolant clarity offered by Advance Filter Media. The ultimate cost factor in machining i.e. ‘Machining Cost per Component’ is optimized with Advance Filter Media.Advance offers many of the medias in custom widths and lengths when necessary.

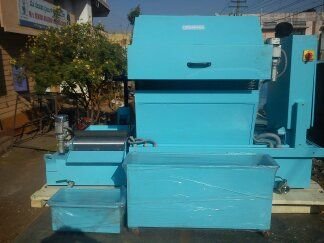

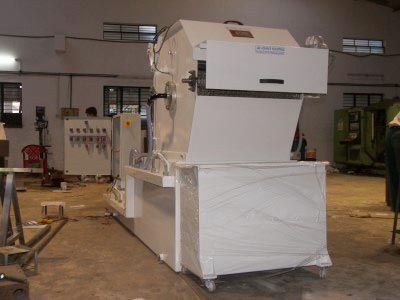

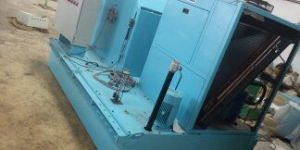

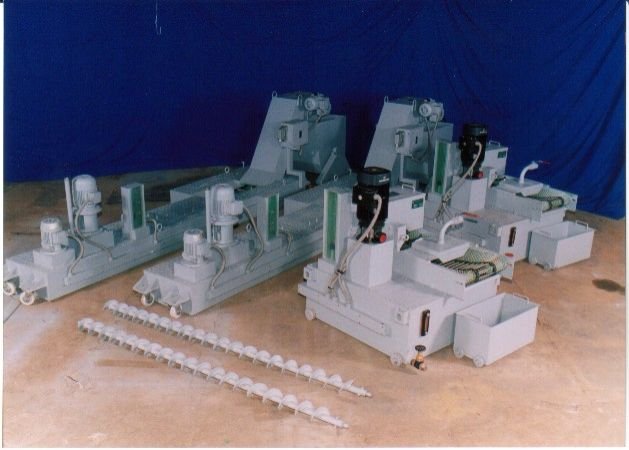

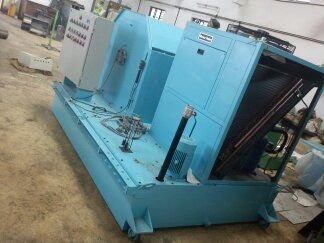

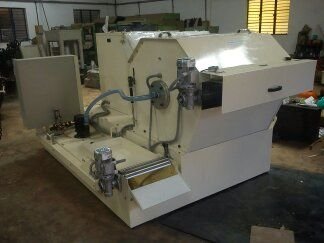

Ranked amidst the leading Manufacturers, Exporters & Suppliers of Compact Band Filter; we are a renowned name in this domain. Durable, cost effective, perfectly designed, manufactured and highly reliable; the Band Filter is sternly manufactured in the advanced manufacturing unit. We are backed with a pool of veteran employees and professionals, they keep a check on the Band Filter and ensure that the same is as per the set global standards.   Principle :  The principle of filtration though ADVANCE  “Gravity + Hydrostatic Head” which together offers the required pressure for the fluid to pass through the filter media. The solid contamination settles by Gravity on the Filter Media forming the dirt cake. This dirt cake in turn acts as a fine filter.Construction :   ADVANCE  CBF comprises of 2 disc wheels connected by a hallow shaft in the centre and Doctor Blades (Scrapper Blades) at the Periphery. The 2 discs are perfectly parallel to each other and mounted vertically in the System. The float switch is provided to sense and maintain the Fluid level in the Trough. The float switch helps in sensing the rising level of the fluid and the indexing. A continuous Honey Comb Belt is positioned tangentially to the Disc Wheel at the bottom with the help of 4 shafts. The front Shaft is the Driveshaft. The Rear Shaft helps to maintain the tension on ‘Honey Comb Belt’ to be perfectly tangential to the discs. The Filter Media is placed between the Discs and the ‘Honey Comb Belt’. The Discs along with the Honey Comb Belt and the Filter Media together form the ‘Trough’ where filtration takes place. Operation : The contaminated fluid is allowed to enter the ADVANCE CBF from either of the sides or both the sides from the flanged inlets. As far as possible the contaminated fluid for filtration is allowed to get in to the ADVANCE CBF with steady low velocity to avoid the turbulence when it drops on the ‘Trough’. The Fluid drops in to the trough through a dispenser on the rear side of the system i.e. the virgin filter media side. A small water fall effect is created while dropping the fluid through the dispenser. The solid particles settle by Gravity on the Filter Media forming a cake, which in turn acts as a fine filter. The Filter Media by itself attains the Roll of the support media. The fluid passes through the dirt cake and the filter media with the help of the Gravitational Force and Hydrostatic Head. The rising fluid level in the trough is sensed by the float switch and the system indexes. When the indexing takes place, the virgin media is introduced from the rear side of the system. The exhausted media with the dirt cake is discharged from the front of the system. The doctor Blades connecting the wheels at the circumference acts as the scrapper blades, which slowly and surely discharges the solid dirt cake.

We Are Leading Mfrs & Service Providers In - Auto Parts Facet Company Providing Quality Manufacturing Of Cnc Duplex Grinder, Vertical, Horizontal, High Precision Machine Machine Built In Floor Spindle Accuracy, Slide Accuracy Within 1-5 Microns, To Achive Auto Parts In Automobile Industries, Product Range Gears , Con Rods, Wishers, Rings , U J Cross, Bearings, Cups, Etc.   The Progressive Multidivisional Industrial Giant of Karnataka , is Firmly Ensconced in the Leadership Position as the Premier Automotive Components Manufacturers, Experience that Spans Around 10 Years of Development, a Rigid Adherence to High Quality Standards, a Willingness to Adopt Sophisticated State-of-the-art Technology and a Strong R&d Infrastructure, have Been the Major Factors, Which have Successfully Contributed to the Company's Growth. It Spurred By Success to Explore New Avenues of Endeavor, Initiating New Projects and Consolidating a Countrywide Presence, all in the Pioneering Spirit of a Truly National Enterprise.

We are one of the leading Manufacturers, Exporters & Suppliers of exceptional Centralized Coolant Filtration System. The Coolant Filtration System is sternly fabricated in the high-tech manufacturing, designing unit that is equipped with the latest machines and technology. Staffed with a team of professionals; they keep a close coordination and check on the production stages. We make sure that the range is as per the set industrial norms.More about Centralised Coolant Filtration System : A Centralized Filtration System is basically a Common Filtration System for a group of machines. Hence a centralised filtration can cater to a small group of machines or the complete shop. It is generally a combination of various Coolant Filtration System products and accessories. A Centralized Filtration System is the most effective and efficient ideology in Coolant Filtration System and Cutting Oil Filtration System. A Centralized Filtration System has huge benefits over a Individual Filtration System. Below is the list of all the reasons why you should opt for a Centralized Filtration System in comparison to a stand alone filtration system.   Saving in Electrical power / Connected Load :A stand alone filtration system has separate pumps for bed flushing , tool flushing , spindle cooling etc. Hence the connected load for each machine is very high. All these requirements can be catered using a single pressure fluid line : A Centralized Filtration System has common pumps which pressurize a grid of piping which runs in your shop. Tapping is taken from the same pipe line for various requirements. This reduces the number of pumps required. In a Centralized Filtration System a pump with larger flow capacity is used. These pumps have higher efficiency compared to smaller capacity pumps used in stand alone system. Hence the power required to pump the total flow is much lower as compared to the sum total of power required of stand alone tanks. A total power reduction of 25% can be achieved. Additional facilities like a VFD ( variable frequency drive ) can also be easily incorporated to reduce the power consumption even further. Increase in Coolant life : A stand alone system has to kept near the machine. Hence it occupies a large shop floor area. In order to reduce the area some aspects of filtration are typically compromised. Smaller size means lesser through put time ( allowable time ) for filtration. The fluid has to pass through the filter faster. This increases the flow velocity which drastically reduces the filtration efficiency. Due to small size multiple stages of filtration is not possible which puts load on the finer filter reducing its efficiency. As the finer particles are not filtered properly, they start accumulating in the system. After a certain threshold level an operator is forced the coolant / cutting oil as the contamination starts affecting the surface of the job. Traditional it has been observed that a stand alone has to be cleaned after every 3-6 months. As the centralised system can be kept away and also outside the shop floor area, the size can be made suitable to provide sufficient through put time. Also a multi stage filtration and separation is provided. The increases the bath life drastically to 45-60 months. Increase utilisation of shop floor area : A stand alone system has to be placed near the machine and consumes valuable shop floor area. It takes almost the same space or more than the machine tool. This area if saved can be used for direct production activities increasing the productivity. Space also has to be provided for easy access and maintenance of these stand alone filtration systems. A Centralized Filtration System can be placed in non-productive area like utility hangers or even outside the shop. Hence you not only save on the foot print area of the stand alone filtration system but also the area kept vacant. Through our various projects we have seen a 25% saving in shop floor utilisation. This means you can increase your production by 25% in the same available shop floor area. Reduction in manpower cost : Huge manpower is required for the cleaning and maintenance of individual stand alone system. As each system has its multiple pumps , conveyors , filter units etc. Parameters like coolant concentration , pressure , temperature , filter media replacement has to done on each stand alone system Comparatively such activities are needed to be done at a single point of the Centralized Filtration System. Typically we have seen a 80% reduction in the manpower associated in these activities.

To ground both surface 1 time for high precision components

Material : Mild Steel

Driven Type : Electric

Usage : Automotive Industry

Voltage : 440V

Color : Blue, Light White

Country of Origin : India
