Ball Valves Dealers in Hubli

Industrial Ball Valves are excellent in chemical applications, including the most challenging services (e.g. dry chlorine, hydrofluoric acid, oxygen). They are readily available in a wide variety of configurations, 3-piece, end entry and top entry, these valves range from commodity type valves to high performance valves. They are easy to operate, have standard face-to-face dimensions, high flow capacity, high pressure/temperature capabilities and ability to handle severe service chemicals. Advanced Features : The quarter turn operation is desirable to most operators and fairly easy to automate. The face-to-face dimensions comply with ASME, making the ball valve easy to retrofit and replace in line with most other ball valves and plug valves. They are designed in conformation to ASME with flange rating 150, 300, 600, 900 # or occasionally higher classes, enabling high performance ball valves to withstand up to 2250 PSI. The ball valve temperature which is primarily dependent on seats and seals may be rated as high as 550° F. Higher temperatures are permitted when using metal seats. Other Specifications : Ball valves, available in reduced port and full port designs are considered high recovery valves, meaning a low pressure drop and relatively high CV, [coefficient of flow (GPM per 1 PSI pressure drop). The benefits of these desirable flow parameters are reduced pump size and less system wear due to lower velocity. The ability to provide fire safe protection and handle severe service chemicals are two of the significant advantages of the ball valve. Sizes Available : 15mm RB to 600mm FB Range : The valves pressure rating ranges from 150# to 2500# with Screwed end, Flanged end or Butt weld end. They are also available with Lever operation, Gear operator, electrical actuator and Pneumatic actuator. Material used : Cast Iron, Carbon Steel, Stainless Steel, Duplex, Super Duplex, Monel, Hast alloy, etc

• Pressure: High, Low, Medium
• Material: Metal
• Application: Industrial
• Resistivity: Rust Resistant
• Durability: Long Life
• Surface Finishing: Polished

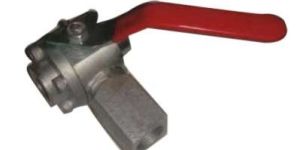

Obtain from us special type of L-Port Ball Valve required in carbon steel and stainless steel construction. The L-Port Ball Valves are designed to endure extreme working pressure of more than 100 bar in vital applications. A unique lip seat design guarantees maintenance of seal for many cycles in handling oil, air, chemical, gas, acid, alkali, oxygen and many other services. We are a prominent Manufacturer and Exporter of L-Port Ball Valve. Salient Features Dependable Longer service life Superior quality Cost-effective Abrasion resistant Used In The Production Of Duplex filter Heat exchangers Multiport lines Chemicals

Internally mounted blow-out proof stem Live loaded stem design meets stringent fugitive norms Improved seat for long life and bubble tight shut off Choice of seat material Fire safe and antistatic design confirms to API 607 Designed to handle the most severe services

• Sizes in mm(inch): Pressure Rating
• Flanged Ends:
• 15 (1/2") to 300 (12"): Class 150 & 300
• Screwed Ends:
• Screwed Ends/ Socket Weld Ends: Class 800
• Screwed Ends/ Socket Weld Ends: Class 600

• Size: 15mm to 250mm
• Type: 2 way / 3 way (Full port/ Reduced Port)
• Operation: Lever, Gear, Pneumatic & Electric Actuator
• Material:: A105, WCB, CF8, CF8M
• Seat: PTFE, RPTFE (CFT), PEEK, Metal
• Rating: Class 150, 300, 800
• Ends: Screwed, Socket weld, Butt weld, Flanged
• Testing: As per API 598/ BS EN 12266

One Piece Ball Valve is a precisely designed valve for chemical, gas, refining, desalination, pharmaceuticals and other applications, where transmission of liquid and gas is required. Our One Piece Ball Valve efficiently eliminates possibility of leakage through joints̢۪ faces. Further, remarkable design of One Piece Ball Valve ensures easy installation and maintenance. Features : Bolted bonnetBellow sealHard facedFire safe Full or reduced bore

Ball Valve Provide Tight Shut-off and Character Control. They have High Range Ability Due to the Design of the Regulating Element, Without the Complications of Side Loads Typical of Butterfly or Globe Valve. We Manufacture and Export a Wide Range of Ball Valve.

• Size: 15mm to 300mm
• Material: Carbon Steel, Stainless Steel
• Class: 150,300
• Design Standard: BS ENISO 17292
• Testing Standard: EN 1266-1

• Brand Name: Fluidflow Tech-Controls

We are offering One Piece Ball Valve. Features benefits low operating torque. Testing as per en iso 12266-1. Blowout proof stem design & antistatic device. Face to face dimensions as per mfr standard. Screwed to bsp as per bs 21ansiasme b 1.20.1 npt socket welds to ansi b 16.11 butt weld ends as per ansi b 16.25

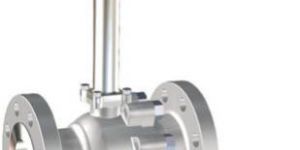

We offer Ball Valve . A regular or full bore ball valve. Suitable for isolation and cryogenic applications in the power, oil and gas and petrochemical industries. APPLICATION •Isolation Features Benefits •Regular bore, full bore •Secondary Stem Seal - 'O' ring offered on request •Cavity-free design - available on request •Vent and Drain - Needle Valve provided •Fire-safe test requirements of API 607 and API 6FA ansi cLASS RATING •Class 150, 300 Design standard •BS EN ISO 17292 (BS 5351), API 6D, BS 6364 sizes •15mm (12") to 300mm (12") materials •Body: WCB, LCB, CF8, CF8M, CD4MCu, CN7M, H-B, H-C, etc •Seats: PTFE, reinforced PTFE, even metallic ends •Flanged •Weld

Pneumatic automatic ball valves with all accessories are available both in floating and trunnion mounted design from class 150 to class 600 pressure ratings. Metal seated ball valves and multiport ball valves are also available with actuators. Fire safe ball valves are available in automated version.

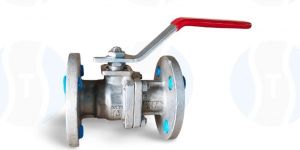

We are manufacturing from 15 mm to 200 mm Floating Ball Valves in Class 150,300 & 600. For all applicationService Media

Microfinish Valves Pvt. Ltd. is one of the pioneer manufacturing & supplying company of ball valves, which are fully welded.
