Check Valves Dealers in Hubli

• Size: 20 Mm
• Material: PP
• Application: Industrial
• Feature: Durable
• Media: Water
• Test pressure: 08 kg./cm2
• MOQ: As per requirement

Pp foot valve hex head.

We are offering Swing Check Valve. Swing Check Valve is high on demand for its efficient performance. It is used for preventing flow reversal when a pump is shut off in a pipe circuit. The valve is easy to operate and is very long lasting in nature. Endurance and Durability : As superior quality raw materials like Cast Iron, Carbon Steel, Stainless Steel, Duplex, Super Duplex, Monel, Hast alloy, etc. Are used for making these Swing Check Valves, they are very durable and tough in nature. They are designed for minimum head loss. Sizes available : 80mm to 400mm Range : The valves pressure rating ranges from 150# to 900# with spring loaded Single disc, hinged on the body or cover.

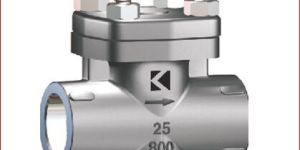

Forged Check Valve Screwed, Socket & Butt Weld Ends : 08 (14") to 50 (2"), Flanged Ends ( Weldon Flanges): 15 (12") to 50 (2"), Design Std.: API 602, BS 5232, Face to Face: ASME B16.10, Testing Std.: API 598EN 1266-1, Body & Cover: A105, F11, F22, F5, F9, F304 & F316, Dis: CA15, CF8, CF8M, Stem: 410, 304, 316, End Connection: Flanged, Screwed.Socket weld Ends.

Dimension 'A' as per manufacturers Std. 2. Socket weld ends to ANSI.B16. 11 SCH 4080160 3. Screwed ends to BSP BSPT NPT:ANSI B1.20.1 BS:21IS:554 4. Butt weld ends to Ansi B 16.25, SCH. 40 80 160 5. Test pressure for IBR Valves shall be as per IBR requirements 6. All dimen sion are in mm 7. Port diameter in sizes 40 & 50 mm are slightly less than BS : 5352

• Size: 25mm to 1000mm
• Material: CI, DI, WCB, CF8, CF8M, CF3, CF3M
• Type: Eccentric mounted disc
• Seat: Nitrile, EPDM, Viton, Silicon, PTFE
• Ends: Wafer
• Specials: Dashpot Arrangement
• Testing: As per API 598

We Manufacture and Exporters Different Types of Check Valve, Which are Mechanical Valve that Permit Gases and Liquids to Flow in Only One Direction, Preventing Process Flow from Reversing. They are Classified as One-way Directional Valve.

• Brand Name: Fluidflow Tech-Controls

We are offering check valve. features benefits bolted cover. Design std.bs 1868 ansi 16.34 . Testing as per bs 6755-1 en iso 12266-1. Face to face dimensions as per b 16.10. Flange drilling as per ansi b 16.5 rf serrated buttweld ends as per asme b 16.25

• Forged & Cast Steel: Carbon Steel
• Stainless Steel: Alloy Steel
• Brand Name: FFTCI

We are offering Lift Check Valve. Features benefits -os & y type, bolted bonnet.solid wedge. -testing as per api 598 en iso 12266-1. -valves with integral renewable seat arrangement. -face to face dimensions as per mfr standard. -screwed to bsp as per bs 21ansiasme b1.20 npt. -socket welds to b 16.11 buttweld ends as per b 16.25 application isolation size 8mm (38") to 50mm (2") ansi class rating class 800, 1500, 2500 on request -full bore construction. -welded bonnet construction. -locking arrangement. -nace as per mr-01-75 mr 0103 -stellited hard faces. -for low temp & cryogenic service as per bs 6364. -all exotic materials (superduplexhastelloymonelincolloy). design standard api 602 iso 15761ansi 16.34 ends -screwed -socket -butt weld

• Material: CI
• Pressure: Medium Pressure
• Warranty: 2 Year
• Item Code: Polyhydron
• Valve Size: 8.0 inch
• Usage/Application: Commercial

We are manufacturing from 100 mm to 600 mm Dual Plate Check Valves in Class 150 & 300 For all applicationService Media

Microfinish Valves Pvt. Ltd. is a well established manufacturing & supplying company of check valves from India.

We are engaged in offering a wide range of forged check valve from india.

forged steel lift check valve, Forged Steel Gate Valves, Forged Check Valve

We offer hopkinsons full bore & venturi gate valves. Pipeline isolation valves for a wide range of process applications. Valves can be fitted with customer choice of actuation. The parallel slide gate valves are produced in a wide range of sizes and designs (including venturi and full bore) for fluid isolation duties on steam raising plant and process systems throughout industry. The outstanding feature of the parallel slide design is that of maintained fluid-tightness without the aid of wedging action. No mechanical stress is exerted between the discs, and the valve is not subjected to dangerous strains on opening or closing.

valve actuator, Knife Edge Valve, Actuator

Cast Steel Gate Valves, Horizontal Check Valve, vertical check valves

Non Return Valves, Gear

Forged Steel Lift Check Valves

bellows sealed globe valves, chlorine service globe valves

ball valve spindles, precision cnc turned components

Bronze Gate Valves, Forged Valves

forged steel gate
