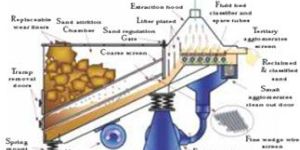

Vibraclaim series silicate co2 reclaim system is developed for re use the sand and cut down new sand cost. JKFE range of mechanical attrition units are available with inbuilt sand classifier for small units 3 - 6 TPH units. for bigger unit sand classifier is a separate module integrated with sand cooler Specially developed for Silicate Co2 sand & Chemicallybonded sand. attrition lump breaker include triple deke screening final grading via non-clogging stainless steel wedge -wire replaceable liners in wear areas integral sand classifier for small models. 1-10 TPH models available

Stronger molds and cores with as new sand. After switching to Thermal reclamation, one foundry cut new sand cost to 70 percent. Better surface finish and less porosity. Reducing chemical additives reduces the gas that is generated. More dimensionally accurate castings. Thermal reclamation creates expanded silica sand grains which do not go through the same expansion as new sand during every pour. In steel foundries this can limit or eliminate the need for iron oxides, zircon and chromite sands. Far less odor and smoke in the foundry during pouring because less chemical binder is needed. Less grinding and welding of castings is required. With fewer chemical additives and a superior quality of sand grain, casting defects such as finning and burn in are reduced

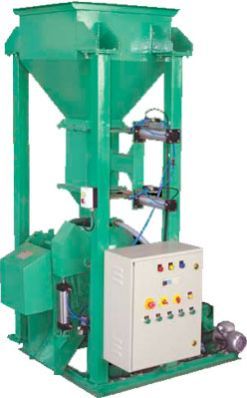

Super Mixer (Spherical Bowl Mixer) is unlike conventional mixer-Muller for No-bake and silicate sand mixing. This Mixer consists mainly of a newly developed mixer Bowl. The mixer has a spherical construction with specially designed high-speed two action blades, which gives three-dimensional movement for thorough mixing of sand with silicate, organic binder or catalyst in any combination in just 15 to 18 sec. Models available for chemically bonded sand/silicate sand and dual capability. Complete mixing in short time and uses lesser amount ofbinders. If in your conventional mixer using 5% silicate, weensure you that at list 1% of silicate you can save in our mixer. Due to three-dimensional mixing at high speed, no unmixedsilicate balls are there. And cause of that you can get goodsurface finishing of casting and save fettling cost indirectly. Cleaning can be easily done since sand does not remaining inthe mixer bowl due to bottom discharge. Compactly designed, molding sand can be accuratelysupplied at any time without waste, due to lower batchcapacity 15 kg to 30 kg. It is not possible in conventional mixer. Weighing and mixing of material are automatically controlledfor rationalization of work. Due to automation only one switchoperation is there, so only one person or molder can operatemixer whenever needed. Result of this process leads to manpower saving. Although it is of small sized model; its capacity is comparableto large sized mixer when operated continuously. Breakdown is minimized and maintenance is easy due toSturdy and compact design. No need of major civil work orspace. Can be use as Core Sand Mixture.

Type : : Batch Mixer.

This system provides safe and fast Mold handling during curing. Mold Handling systems are tailored to suit each foundry utilizing a combination of standard products. This system provides safe and fast Mold handling during curing. Mold Handling systems are tailored to suit each foundry utilizing a combination of standard products.

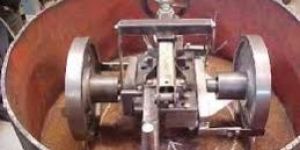

JKFE heavy duty sand Muller are with modern requirements of sand preparation with increased rotary speed and adjustable pressure which creates best condition for all types of sand. JKFE mullers are of sturdy construction and easy to maintain. The adaptation of a successful procedure to modern requirement of sand preparation at increased rotary speed and adjustable pressure. The possibility of adjustment of the muller pressure creates one of the best conditions for all type of sand. Muller pan is protected with wear resisting replaceable bottom plates and the side wall within the zone of the scrappers. The scrappers are brazed with tungsten carbide tips. Crib fabricated from MS plates, are reinforced at the top & bottom to prevent any disturbance while machine is working.The crib is bolted to the pan base and is of detachable type for maintenance purpose. Special housing assembly ensures no leakage of sand and water from the pan

Specially designed for hot conditions like Asian and African continentals. Fluid bed can effectively cool and classify reclaimed sand. Low maintenance and effective design Fluidization is done with controlled amount of air flow helps to remove dust and fines from sand. Temperature difference of 40 - 60 ° can be archived in normal conditions.

We offer pulse jet dust collectors which is ideally suited for dust extractionform returning sand.   This pulse jet dust collector is engineered to a specific pressure or vacuum. These are used as dust collector for the purpose of removing dead sandand dust from returning sand at the time of cooling in cooler classifier. Dust collectors contains number of bags covered on metallic cage thebags are made of PP Polyester, Aramid etc.

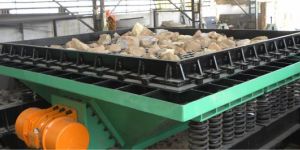

JKFE Heavy duty Knockout Machine are of sturdy construction and easy to maintain. Knockout Grid vibrates at great efficiency which is constant over the entire area and it will give the maximum vibration. The springs are designed in such a way that it will transit very less vibratory effect to the base frame. The Base frames are specially designed to withstand heavy shocks and overloads provided with proper spring rests. The Entire system is driven by eccentric shaft supported by heavy duty anti-friction bearings or Electric vibrating motors. Counter Weights can be adjusted to get the required vibration.

Super Mixer (Spherical Bowl Mixer) is unlike conventional mixer-Muller for silicate sand mixing. This Mixer consists mainly of a newly developed mixer Bowl. The mixer has a spherical construction with specially designed high-speed two action blades, which gives three-dimensional movement for thorough mixing of sand with silicate, organic binder or catalyst in any combination in just 15 to 18 sec. Models available for chemically bonded sandsilicate sand and dual capability.

Type : Batch Mixer

Capacity : 30 Kg / Batch

The JSM Turbine Mixer delivers unbeatable reliability, precision, durability and cost-efficient operation. Robust design, precision engineering and quality components combine with the latest process control technology to make the JSM Mixer superior in every way. Efficient and economic operation due to high throughput rate and short mixing cycles. The large double “S” shaped mixing ploughs and high capacity blender rotate continuously during loading with pre-batched material and blender rotate in opposite direction, this combination guarantees fast, highly intensive preparation as well as perfect homogenization of the mixing sand. Easy access to all wear parts for quick replacement. Low maintenance requirement due to robust components and minimum wear of mixing tools and mixer bowl. An optional Sand Controller ensures ideal sand quality by enabling integration of dosing, mixing and moistening.An optional precision weighing control system for used sand and additives. Specially designed for green sand plant. Fully Automated Operation.

Foldable with platform, extra Hand rail with Broad Non clip corrugated flat steps and safety Guard Rail. Description : Front 35mm X 20mm Tube section Back 30mm X 20mm Tube section Auto Folding Platform 250mm X 250mm Sleek extra Hand Rail Sold Rubber Shoes with 4 Legs Light in weight Foldable Available Sizes : 2ft to 8ft Platform Height.

It can be used In 2 position stool or single Ladder Description : Side 'c' section 65mm X 38mm steps nut bolt fitting detachable. Locking clip angel 125mm X 350mm, platform on top with solid rubber shoes. Available Sizes : 10ft to 40ft Single Position

Stool Type Free standing Ladder with 4 Legs. Description : Side ‘c' section 65mm X 38mm step nut bolt fitting detachable hinged support angle spreader, platform on top 250mm X 350mm. with solid rubber shoes. Available Sizes : 2ft to 20ft Platform height.

Description : Side'C’ section 6 5 mm X35mm Steps 25.4mm dia non slip corrugated tubing permanent punching in machine, fined & operate with {Nylon) Polypropylene Rope pulley arrangement with bracket, lockable stoppers. 36" MS Solid wheels, solid rubber shoes and caps.

Description : Side 'c' section 65 mm X 38mm Steps 25.5mm dia non slip corrugated tubing permanent punching in machine, fitted & operate with (Nylon)Polypropylene Rope pulley arrangement with bracket, lockable stoppers, solid rubber shoes and caps.

Description : Side 'c section 65mm X 38mmSteps 25.4mm dia non slip corrugated tubing permanent punching in machine, fitted & operate with (Nylon) Polypropylene Rope pulley arrangement It with bracket, lockable stoppers, solid rubber shoes and caps.

Description : It can locks at any required height and adjustable Description : Side ’c’ section 65mm X 38mm Steps 25.4mm dia non slip corrugated tubing permanent punching in machine, fitted & operate with (Nylon) Polypropylene Rope pulley arrangement with bracket, lockable stoppers, solid rubber shoes and caps

Description : A combination of Ladder and Safety work platform for 4 persons, Alco Scaffolding can be assembled dismantled with in a shot time with out any tools kit it can store in small space. All are detachable.

We are dealing best Aluminium Double Width Mobile Tower supplying company.
