Ceramic Heaters Dealers in Hyderabad

• Features: Use the advanced technology , Top notch performance, Supreme strength .

• Temperature Range: 50
• I/P Voltage: 190
• O/P Voltage: 24vA/c
• Max Power: 25/50/60 Watts

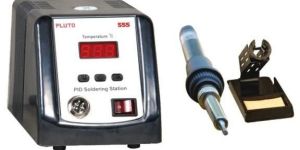

  Time to Temperature Rising from ambient-350 C 25 Sec. Heater TypeAlumina Ceramic Tip to ground Resistance

Ceramic heaters are medium-to-high temperature heaters that can deliver up to 400oC. The nickel-chrome heating elements of these durable heaters are placed inside interlocking ceramic channels that are assembled like a brick wall. A ceramic fiber insulating mat and a stainless steel jacket cover this assembly. This construction makes ceramic heaters flexible and highly energy efficient. An energized ceramic heater that operates at 400oC internally will have around 100oC on its outside shell. Ceramic heaters consume 30 % less energy than band heaters that are not insulated.

MATRUSREE’s strip heaters are constructed of specially selected high quality materials, beginning with the high temperature alloy resistance wire uniformly coiled and spaced over the width of the heated length of the strip heater. This controlled coil process and replacement assures uniform heat distribution over the entire active surface of the heater. Special care is taken to secure the stud-type terminal to the high-temperature alloy resistance contact.The coiled resistance wire is embedded in a special refractory Material that possesses excellent heat transfer characteristics and superior insulation properties. The entire heater assembly is encased in either stainless or chrome steel sheath and is compressed under high pressure. The completed assembly is heated under controlled conditions to bake and semi vitrify the refractory for a rigid, vibration resistant, heavy-duty heating unit. Features: Premium grade ceramic and magnesium oxide insulation Watt density: Max up to 30 w/in² High quality nickel-chrome resistance wire Many wattage, voltage, and length combinations Stainless steel sheath Models Available for High Temperature Application Wide Variety of Terminal Options.

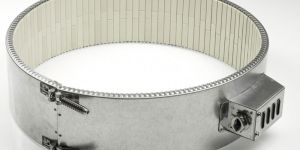

Ceramic Band Heater that we offer is known for conserving energy as it uses a 1/4" thick ceramic fiber insulating blanket that reduces power consumption by 25 to 30 percent. Because of its low thermal conductivity, the external surface temperature of the Ceramic Band Heater remains approximately 200ºC while running and the inside surface temperature remains 600ºC. The flexibility of the metal housing allows the use of wider and one piece band heaters. Ceramic Band Heater is widely used in plastic injection moulding machines extruders and blow moulding equipment.
