Coil Winders Dealers in Hyderabad

The Heavy Strip Coil Winding Machine, which we offer, is manufactured in confirmation to the set industrial norms and guidelines. We are among the trusted Manufacturers and Suppliers of Heavy Strip Coil Winding Machine. Also, we offer these Heavy Strip Coil Winding Machines at competitive rates to the clients. Product Information : Heavy Strip Coil Winding machine has a precision traverse with necessary press roller mechanism which helps to keep the wound conductor in intact position there by maintaining the required overall coil dimensionsOverall Strip size (20 parallels) maximum : 40 X 15 mmSpindle RPM : 0 to 30 RPMGear box reduction : 1:50Easily adaptable for winding single or multiple coils.Foot operated machine controlMotorized press roller traverseFaceplate : 11.81� (300 mm) diameterAir operated press roller arrangementSpindle Rotation : Either direction can be selected by a switch on the control panel.Spindle Center Height : 39.37Tailstock : Mounted on precision ways to allow positioning anywhere along winding axis. 5.90� (150 mm) quill travel. 60 Degree live center in #5 Morse taperMaximum axial height : 25.9� (650 mm)Maximum Distance between centers : 39.37� (1000 mm)Maximum coil weight capacity : 600 Kg between centersMaximum number of parallels : 20Pay off bobbin stand for maximum capacity of 20 number of bobbinsMachine Weight : 3000 KgsMotor Equipment for main drive : 10HP (7.5kw) motor with variable speed, foot controlled, DC driveMotor Equipment for cross feed drive : 3HP (2.2kw) motor with variable speed, foot controlled, DC driveElectrical Control panel : Electrical control panel to accommodate DC drives, relay logic and switch gearPower and air Requirement : Electrical : 10HP : 415 V, three phase, 40 amps Air : 5.5 bar at minimal CFM

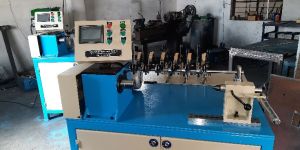

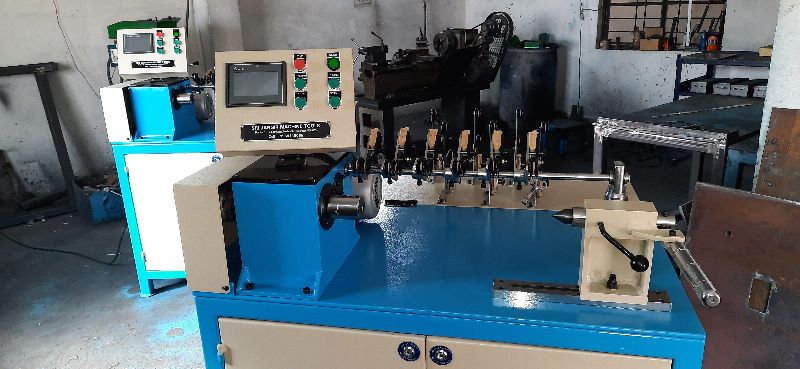

Automatic  plc controlled  table fan , exhaust  fan ,coils winding machine

• Type: Automatic Coil Winding Machine
• Certification: ISO 9001 : 2015
• Weight: 100-1000kg
• Color: Blue & Cream
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1year
• Brand Name: Jangir Engineering
• After-Sales Service Provided: Yes

• Feature: Semi-automatic operations, Easy operation and simple , High efficiency

• Type: Filament Winding Machine
• Weight: 100-1000kg, 1000-2000kg
• Color: Grey, Light White
• Voltage: 380V, 440V
• Condition: New, Used
• Application: Filament Winding
• Automatic Grade: Automatic, Fully Automatic
• Power: 3-6kw
• Driven Type: Electric
• Warranty: 1year, 2years

Armature Coil Winding Machine, steel wire drawing machine

Motor Coil Winding Machine

toroidal coil winding machine

transformer coil winding machines

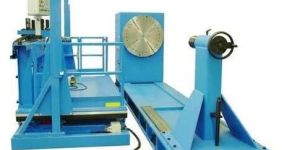

LT Coil Winding Machines, HT Coil Winding Machines

Ht Coil Winding Machine

Power Distribution Transformer Coil Winding Machine
