East Coast Magnets Pvt. Ltd. Jeedimetla, Hyderabad, Telangana

We are offering variable welding magnet. Applications especially suited for soldering or tack welding. Keeps hands free during welding of two sheets. Ideal for inspection and setting of jobs. Features simple, sturdy, economic design having cast aluminium body. Variable angle setting. Powerful ferrite magnets hold sheets securely. Keeps hands free during welding of two sheets. Suitable for marking and inspection.

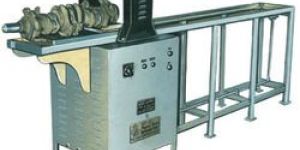

We are offering trolley type demagnetizer. Applications useful for engine, gear box manufacturing units. Heavy components with long axis is placed on trolley and pushed through the window, when it reaches other end, cuts power actuating limit switch and job meanwhile gets demagnetised. Can demagnetise large dies quickly. Operating volts 440 volts ac, 50 cycles, 2 phase. These are made in various sizes to meet customers need. Features these are larger units of aperture demag with carriage & trolley for heavy components. Self standing structure with easy controls. Aluminium sections are used for rail trolley. Hylam top are used for keeping components on trolley.

We are offering trolley magnetic floor sweepers. applications ideal for airport, parking lots and factory roads. Very useful for repair shops, garage, fabrication, structural and assembling plant. Available upto 3000 mm width. Larger units with built in diesel generator or battery operated can be made for effective cleaning and easier operation. These are manufactured as per customers’ specification. Sweepers with powerful ndfeb magnets can be made at extra cost. Features available in hanging and trolley mounted type models. Operating height from 75-150 mm. Sweeps the roads shop floor and removes scattered iron particles. Magnets used are powerful strontium ferrite magnets. Hanging type with provision for jeeps, fork lifts, behind vans. Trolley type on 300 mm dia tyres and can be towed by trucktractors. Quick actuation of lever for discharging of iron particles.

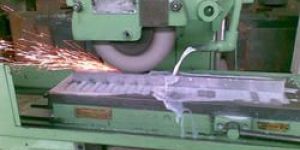

We are offering standard pole rectangular permanent magnetic chuck. Applications powerful and most suitable for grinding of medium and large components. Suitable for light milling and drilling operations. Supplied as oe in most surface grinding machines. Features perfect general purpose chuck having steel and aluminium set top plate. Meets is:04816:87 specification. Poles are individually magnetised for full loading power. Detachable handle for easy use.

We are offering rotary grid ms. Applications suitable for sticky diary productspulverised minerals, fibrous substance, lino and fine cohesive materials like magnesium oxide, zircon powder, fly ash, alumina, gypsum etc. Concentrated magnetic field in the magnetic rod provides high grade attraction. Rotary action prevents materials from bridging for better exposure to magnet for attraction. Features unique new design magnet grid on rotary plate enabling attraction of difficult to clean iron particles. High power efficient rotary grid for sticky diary products. Cleaning done by swinging out the rotary magnet plate outside and manual cleaning. Materials fed by conveyor or manually. Complete with gearmotor assembly. Optional: with 100% stainless steel construction. Made with rare earth ndfeb magnets.

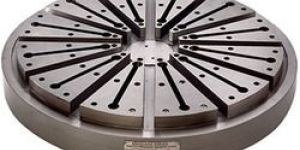

We are offering radial pole round electro permanent magnetic chuck. applications clamps ferromagnetic rings on vertical and horizontal turning lathes. Radially movable location blocks will help to position and secure work pieces (bearing rings, trust bearing, etc.); this is also necessary for clearance of the cutting tool or wheel. Mobile pole extensions ensures perfect clamping of irregular with pieces and machining this flat and parallel. For power connection bayonet connector is recommended when the chuck is intended to be used in different machines. Carbon brush holder with brass collector slip rings is fitted on the machine spindle for power supply. It is recommended when the chuck is for a specific machine. Features perfect safety in case on power failure. No electricity needed to keep the magnetic chuck on. Power from all poles transferred to rings plates held in centre. High resistance to coolant. High mechanical rigidity and proven robustness. High resistance to both axial and radial forces enabling application of heavy cuts.

We are offering portable drilling machine with electro permanent magnetic. applications suitable for on site drilling where jobs cannot be moved under the drilling machine. For accurate holes, any where. For fabrication of large structure. During construction of bridges. In steel structure layout of high rise buildings and for elevators. Drilling at different angles. Also suitable for drilling of odd shaped jobs. Features stand will not drop even during power faluire. Electrical power is not required to keep the magnet on. Compact and light weight. Various models of portable drills can be fitted using adaptor & fixture. Powerful electro permanent magnet which ensures a firm clamping on the job surface. Can rotate over 330 degrees. Can position drill precisely by correct adjustment. Aluminium slides accurately machined and moves between brass guides.

We are offering portable drilling machine with electro magnetic base. applications suitable for on site drilling where jobs cannot be moved under the drilling machine. For accurate holes, any where. For fabrication of large structure. During construction of bridges. In steel structure layout of high rise buildings and for elevators. Drilling at different angles. Also suitable for drilling of odd shaped jobs. Features compact and light weight. Various models of portable drills can be fitted using adaptor & fixture. Powerful electro magnet which ensures a firm clamping on the job surface. Can rotate over 330 degrees. Can position drill precisely by correct adjustment. Aluminium slides accurately machined and moves between brass guides.

We are offering pm funnel filter. Applications removes tramp iron from slurries and essential for producing good quality ceramicpotterypaint, colour. Slurries fed from top and passes between cages for effective separation. Minimum resistance to speed of flow. Easily removable magnet for quick cleaning funnel filter with ndfeb, rare earth magnets can be made at extra cost. Features funnels made from stainless steel for long life. Powerful alnico used in magnet core. Effective separation of contaminated and fine iron particles from liquid flow. Stainless steel filter cage. Concentrated magnetic field which provides high grade separation. Easily removable top magnet and cages.

We are offering platen demagnetizer. applications useful for demagnetising drills, taps, cutters. Can be effectively used for any magnetised materials like punches, dies, grinded plates, bearings etc. For some typical application can magnetise the job in contact and switched on. Features table model unit effectively used for tools and dies. Strong ac demagnetising field. Can remove magnetism effectively from hardened tools, dies, drills, cutters. Suitable for tool room and production needs.

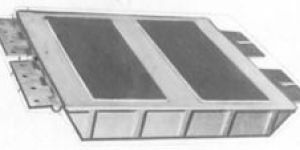

We are offering plate magnet separator. Can attract tramp iron pieces by suspending over conveyor belt or under chute. Used particularly in flour, plastic, glass, chemicals, grains, cosmetics processing for powder separation. Optional: with 100% stainless steel construction. Features high power, low cost magnetic plates for inflow separation in chutes. Can be mounted under the flow by bolting. Can be hanged over the flow from top with hingelatch. Magnet poles are saturated for maximum power. Made with strontium ferrite rare earth ndfeb magnets. Magnet can be easily removed for cleaning.

We are offering permanent magnetic yoke. applications most useful in garage shops for testing crankshafts during maintenance and overhauling. Can detect gears and brackets of automobiles. Can detect cracks in welding joints. For local spot testing in large fabrication jobs, castings etc. Suitable for detecting hair line surface cracks on machined automobiles and similar components. Features powerful magnets with rotating head. Movable yoke covering inspection area upto 500mm. Light weight, no electricity needed. Complete kit with standard crack test block, blackred magnetic paste and pvc squeeze bottle. Simple, sure and positive indication, test can be performed even by an unskilled worker.

Applications useful in shop floor for stacking of sheets size upto 1000 x 2000 mm. Loading unloading of plates from planners, boring, milling machine. Most suitable near flame cutting machines. Caution: for handling finished components after grinding operation, use thin plastic sheet to avoid scratch. Features simple, easy, flexible, economical and light weight. Can swivel 150 and lift sheets vertically and horizontally. Can lift non homogeneous parts with unbalanced weight and loads. Optimum flux density – effectively lifts thick thin sheets. Magnets always remains on. Cam mechanism jack up lever releases the job easily with the help of long handle.

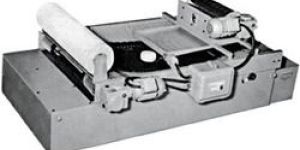

Applications for cleaning of cutting oils, coolant. Most suitable for all types of surface, cylindrical grinding machines. Improve finish of grinded components. Features these are combined magnetic coolant separator with paper filters. Thus can continuously remove all contamination from coolant like, fine ferromagnetic, abrasives and other non ferrous impurities. Paper filter is loaded with separate geared motor for automatic feeding. A water level floating gauge is provided with a limit switch. Coolant after magnetic cleaning falls on the paper and by gravity, passes through the paper band leaving behind contamination retained back. As the contamination gets accumulated and liquid level the floater gauge gives signal to geared motor drive and fresh paper is rolled out. Thus the unit is continuously ready for efficient cleaning.

We are offering overband separator. applications suitable for foundry, coal mines, cement work, food, chemical industries, domestic waste cycling plants, material processing etc. Manufactured in various sizes and models for conveyor width 300 to 2300 mm. Magnets for operating height of 100 mm to 700 mm are available. Dc control panel in complete dust proof enclosure is supplied for electro magnetic separators. Features manufactured in self cleaning with cross belt conveyor system, they automatically discard the tramp iron from the process. Most effective for removal of tramp iron from materials carried over conveyors vibratory feeders or inclined planes. Can be suspended for longitudinal or transversal cleaning over the conveyor belt. Permanent magnetic suspension separators are made with powerful strontium ferrite magnets. Electro magnetic suspension separators are supplied for deep depth upto 700 mm depth and manufactured with copper and aluminium insulated conductor.

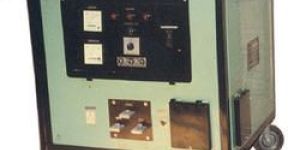

We are offering mobile crack detectors. applications most useful in garage shops for testing crankshafts during maintenance and overhauling. Can detect gears and brackets of automobiles. Can detect cracks in welding joints. For local spot testing in large fabrication jobs, casting etc. Features powerful magnets with rotation head. Movable yoke covering inspection area upto 500mm. Light weight, no electricity needed. Complete kit with standard crack test block, black red magnetic paste and pvc squeeze bottle. Simple, sure and positive indication. Test can be performed even by an unskilled worker.

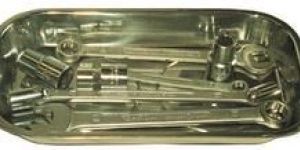

We are offering magnetic tray. Applications ideal in garage for holding hand tools for easy accessibility. Convenient for keeping nuts, washers, bolts and hardware during roof fitting and fabrication. Features made from stainless steel. Everlasting ferrite magnets with rubber cap, thus no chance of scratches on holding surface. Holds itself and components kept in it. Assists mechanics to work in high places keeping both their hands free.

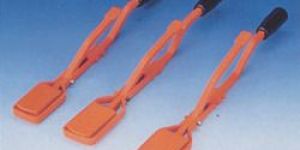

Applications to feed small components in power press. To remove punched component from press. Features handy with long reach. Keeps hands away from power press. Low magnetic field to lift thin sheets. One touch release of components.

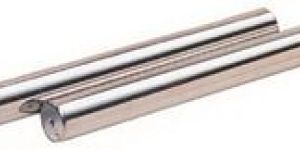

We are offering magnetic rods, used by placing in the liquid, oil for collect steel powder and clean, such as use in edm, grinding machines and also for other industries of chemical and various. Magnetic bar equipped with a stand is also available and the ordering code is 61208. Features powerful type made of rare earth ndfeb magnets. Stainless steel pipe housing for long life. Screws are attached at both end (m5x6). Flux density of > 9000g.

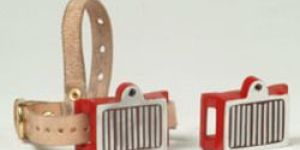

We are offering magnet for wrist/ palm. Applications to feed small punched components in power press. Used as wrist watch to hold critical components during assembly. Features can be strapped in hand over gloves. Handy magnet with multiple use. Low field magnetic power to handle thin sheets one by one. Releases the components manually.

We are offering rotary grid ms. Most economical automatic iron removing equipment for large volume for dry powders, granules & crushed materials. Suitable for any dry material. Remove fine iron particles and iron oxides from mixed materials silica, sand, minerals, etc. Glass, pharmaceuticals, cement, metal recovery, plastic industry. Can be made from rare earth ndfeb magnets at extra cost. The ordering code for permanent magnetic drum is 61204; the specifications are the same as above chart. Features powerful magnetic zone approximately of 135 deg fixed inside rotating ss drum. Material is fed from hoppertray on drum, tramp iron is held on drum and non magnetic material falls, iron is taken away held by magnet and then falls when away from magnet zone. Magnet drum is supplied with fixing blocks and shaft for adjustment. Complete drum separator machine is supplied with hopper, vibrating feeding tray and gearmotor assembly. Available in single double and triple drum complete unit. Size of drum 300 to 900 mm dia, length upto 1500 mm. Made with strontium ferrite magnets. Electro magnetic drums are made using aluminium or copper conductors.

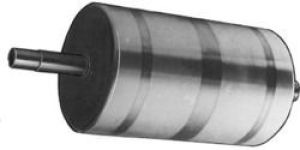

We are offering magnetic pulley. applications removes tramp iron viz. Bolts, nuts, nails, hammer heads, brake shoes from bulk carried materials. Example: coal cleaning de-sulfurization recovery of metal in ore processing. High quality carbonquartz cleaning. Supply 110220 volts dc. Fixing bearing customers scope. Dc control panel with slip-ring assembly is used for electro magnetic pulley. Features replaces terminal head pulley without any changes. Protects the processing equipment against damage due to tramp iron like hammersgrinder boilers. Are supplied for deep depth of field for coalore carrying conveyors.

Applications to hold smallcomplex shaped components while polishing grinding. To lift oily finished grinded jobs from surface grinding machine. Useful during critical welding application. Features handy with easy gripper. Attracts and removes with one touch jack up lever. Low field magnetic power to handle finished components. Can handle oily warm components.
