Fourth Dimension Electronic Systems Pvt. Limited Nacharam, Hyderabad, Telangana

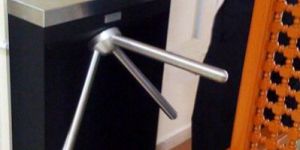

Features:  3 X 120 degree stops.  Built-in UNI Directional & bi-directional operational Control  Anti-PASS Mechanism (Maintenance free) to prevent tripod rotating in the opposite direction once it has traveled 20 degree past the rest position.  Self-centering mechanism with fail safe spring activated for quiet & smooth rest position.  Positive action locking with motion sensor to prevent two passages at one time.  Integration: With all type of access control panel/Reader available in the market.  Casework available in Mild steel Powder coated OR Stainless Steel. Tripods are designed to control pedestrians entering or exiting restricted area in low to medium level of security generally under some surveillances & Crowd control applications. The rotation is 3 X 120 degree (Tri-arm design) and available in Uni-Directional & bi-directional application with high volume of pedestrian movement. The housing is made of heavy–gauge Mild Steel sheet metal (Model FDS –TPDM1) & epoxy powder coated with dark grey, Siemens grey, Black etc.,. Optional colors are also available on request if required  Walkway - As Specified and required by the Client

 fourth dimension provides single and dual lane turnstile gates with bi directional and unidirectional public flow.  our turnstiles combine flexibility and reliably rugged with fully detachable parts with bolts and fasteners.  clear side panel helps visual sight lines.  available with three or four wings  three-wingfour-wing turnstile gate provides security for sensitive areas where piggybacking and material moval are serious concerns. These turnstile gate provides access control to unsupervised installations  these completely tamper resistant turnstiles can be used as standalone units or they can be part of an integrated system.  rugged construction ensures trouble-free performance and durability  heavy duty mechanism can be mechanical with fail proof self-centering mechanism.  turnstiles could be operated mechanically for exit operations and for entry access control systems, which mean they can be free or locked in opposite ways or can be controlled in both the ways.  available in any combination of fail-lock or fail-safe all electrical versions: all fail-lock applications automatically include battery backup to allow manual override in an emergency.  fabricated from hot-dipped galvanized steel (tht-100c, ec) or high carbon steel, powder coated steel (tht-100cp, ecp), 304 grade stainless steel arms or complete stainless steel of 304 grade.  in case of three wing turnstiles, three rotor sections for 120-degrees of passage space and in the case of four wing turnstiles four rotor sections for 90 –degrees of passage.  positive action lock is provided to prevent multiple people’s access or exit  anti-pass back mechanism to prevent reverse rotation after 2o degrees of barrier movement.  bottom thrust bearing is dust and moisture proof  open construction shield minimizes claustrophobic effect and increases visual security  low voltage 24 vdc operating system requires normally open, momentary, dry contact to release turnstile gate  ingress protection shall be of at least ip54nem3, is rugged and industrial type.  direction of entry: bi-directional unidirectional (controlled and free rotation).  a self-centered mechanism with compressed spring damping to ensure complete rotation of the tripod head to reset position.  can integrate with any type of card reader access or biometric system with attendance or pay roll system.

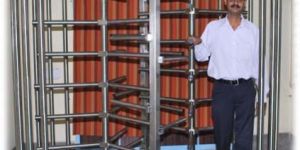

We offer full height turnstiles from fourth dimension secure sensitive and restricted areas and provide entry control for all kinds of applications. Turnstiles provide what a gate or door cannot: provide directional control of each passage and limit access to one person per activation.

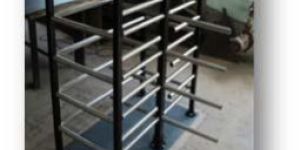

 Fourth dimension provides Single and Dual lane turnstile gates with bi directional and unidirectional public flow.  Our turnstiles combine flexibility and reliably rugged with fully detachable parts with bolts and fasteners.  Clear side panel helps visual sight lines.  Available with three or four wings  Three-wingFour-wing turnstile gate provides security for sensitive areas where piggybacking and material moval are serious concerns. These turnstile gate provides access control to unsupervised installations.  These completely tamper resistant turnstiles can be used as standalone units or they can be part of an integrated system.  Rugged construction ensures trouble-free performance and durability  Heavy duty mechanism can be mechanical with fail proof self-centering Mechanism.  Turnstiles could be operated mechanically for exit operations and for entry access control systems, which mean they can be free or locked in opposite ways or can be controlled in both the ways.  Available in any combination of fail-lock or fail-safe all electrical versions: all fail-lock applications automatically include Battery backup to allow manual override in an emergency.  Fabricated from hot-dipped galvanized steel (THT-100C, EC) or high carbon steel, powder coated steel (THT-100CP, ECP), 304 grade stainless steel arms or complete stainless steel of 304 grade.  In case of three wing turnstiles, three rotor sections for 120-degrees of passage space and in the case of four wing turnstiles four rotor sections for 90 –degrees of passage.  Positive action lock is provided to prevent multiple people’s access or exit  Anti-pass back mechanism to prevent reverse rotation after 2o degrees of barrier movement.  Bottom thrust bearing is dust and moisture proof  Open construction shield minimizes claustrophobic effect and increases visual security  Low voltage 24 VDC operating system requires normally open, momentary, dry contact to release turnstile gate  Ingress protection shall be of at least IP54NEM3, is rugged and industrial type.  Direction of entry: Bi-directional Unidirectional (Controlled and free rotation).  A Self-centered mechanism with compressed spring damping to ensure complete rotation of the tripod head to reset position.  Can integrate with any type of card reader access or biometric system with attendance or pay roll system.

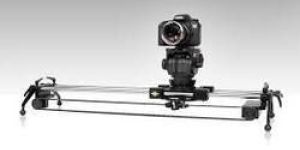

Feature : Smooth Slide System

Material : Steel
