Rfid Reader with Active Tags
10 Piece(s) (MOQ)
we are offering rfid reader with active tags.gae - has newly developed a 2.4ghz rfid active reader & to meet different needs with 2.4ghz active tags in vehicle access control, vehicle toll collection, healthcare, rfid asset tracking, manufacturing, personnel tracking and building security and access control applications. With an external omni-directional antenna, this 2.4ghz reader is suitable for a number of rtls (real time location system) applications including asset tracking, warehouse management, logistics, and student management and so on. This 2.4ghz rfid reader can ensure whether the tracking products are in the visibility range of around 30 meters from the reader or not, since it has the ability of identifying a number of active tags within 30 meters simultaneously. And by working with an omni-directional antenna, it can identify tags in all directions, thus providing a high working accuracy. Active rfid tags have their own internal power source, which is used to power the integrated circuits and broadcast the signal to the reader. If the reader has received the signal from tag, the reader will send the data to the server computer to locate each of the tags. Moreover, it also provides rs232 & rs485 ports for data communication. The rf tag uses the ieee 802.15.4 standard protocol which makes the tag to function as a rfd (reduced functionality device) associating to a coordinator (fully functional devicereader), periodically waking up transmitting data and sleeping again, in the same personal area network. In all, this active rfid reader is available in operating from ism 2.4ghz to 2.5ghz to be deployed in any indoor or outdoor environments for various rtls applications. And it can offer an impressive long read range of up to 30 meters by integrating with an external antenna.
...more
Remote Monitoring Unit
10 Piece(s) (MOQ)
we are offering remote monitoring unit (rmu) is dual sim gsmgprs remote monitoring system. It is a versatile product which can monitor multiple peripheral devices on rs485 and rf interfaces. Features: -rmu is a dual sim gsm-gprs data transmitter which is an enhanced version of dtu -the integrated rf reader adds to its modularity and capacity -it has an additional lcd (16x2) display -data can be communicated to 10 mobile numbers | firmware up gradation through dota
...more
Gprs Modem
10 Piece(s) (MOQ)
we are offering gprs modem.data transmission unit(dtu): dtu acts as data transporter. It is provided with rs232, rs 485 communication ports which are used for collecting the data from various equipments and send to a central monitoring center. Data from dtu to server is transmitted through gprs alerts can be communicated to 10 mobile numbers firmware up gradation through dota
...more
Fuel Sensor
Fuel Monitoring System
10 Piece(s) (MOQ)
we are offering fuel monitoring system.green ark’s –fuel monitoring system is used for the real time monitoring of the fuel level in the dg tank features: -capacitive level sensing technology fuel level measurement: in height (mm), in volume(liters) and in percentage of total tank capacity -detection of refill, consumption and pilferages of fuel from tank -detection of dg start and stop through vibration sensing. -provision for adjustment of the length of sensor using a flange -designed to power from dg battery voltage(12v) -completely sealed to prevent any fuel ingress into the sensor electronics benefits: -minimizing dependency on human intervention and control over the same -measure and alert the no. Of liters of fuel consumed, pilfered and refilled -end to end fuel audit -detects and alerts pilferages and refueling with date and time stamp via sms and e-mail parameters obtained: -fuel level(liters) -dg onoff status -dg startstop time -dg run time -fuel consumption per hour -fuel re-fill startstop time -fuel re-fill(liters) -fuel theft startstop time -fuel theft(liters)
...more
Dc Energy Meter
We are offering dc energy meter. Ga dc energy meter (gadcem) is a micro-controller based product equipped with a 16x2 backlight lcd display to view parameters like voltage, each channel current, power and energy. The front panel has a two key input (up, down) for convenience. Gadcem measures energies of multiple loads (up to 4 ch), when loads are connected to same voltage source. (voltage source could be smpsbatterysolar panel). It measures input voltage from source and current through hall effect sensor. It can operate on wide voltage range from 20v to 160 vdc (refer ordering info) and has rs485 as a communication interface.
...more

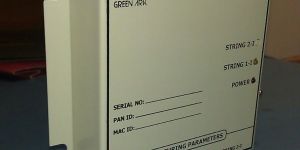

Battery Monitoring System
10 Piece(s) (MOQ)
we are offering battery monitoring system.green ark’s –battery monitoring system is a wireless battery health monitoring product which facilitates proactive and preventive maintenance of batteries features: -web based remote monitoring of battery banks and batteries -voltages and terminal temperature of batteries are monitored in real time -estimates the amount of backup power in the bank at any time using state of charge(soc) -configurable threshold values -alerts and notifications can be sent through sms and emails benefits: -pin point identification of cell before failure and informed corrective action prevents sudden failure of the back up source for critical applications -over voltage, over charging, under voltage, excessive terminal temperatures etc are monitored in real time -the unique id allocation to each cell helps in tracking and management of the assets as long as they are connected to the system -reduces unwanted visits to sites thus reducing the opex parameters obtained: -cell voltage -cell temperature -string current -direction of string current -bank voltage -ambient temperature -state of charge -depth of discharge -ah in ah out -charge discharge cycle count -total energy -battery run hours.
...more
battery monitor
Access Control System
Energy Meter
rfid converters
energy management services
Facilities Management Services
green building certification services
utility billing services
