MICROFINE FILTERS Ramanthapur, Hyderabad, Telangana

microfine offers various kinds of water filter cartridges for ro systems drinking water and industrial water applications in pp, polyester, resin bonded, spun bound and pleated type cartridges.  i.  string wound filter cartridge:   string wound filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity. the main advantage of the string wound filter cartridges is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.      applications:    food  beverage      semiconductor   pharmaceuticals spun bonded filter cartridge  spun bonded filter cartridges are made of 100% polypropylene fibers. spun bonded cartridge filters are manufactured through a process that thermally bonds pure polypropylene microfibers with lower density at the outside surface and progressively higher density towards the center.

MICROFINE offers various types Oil Filters for Industrial Fluids / Liquids such as Lube Oil, Fuel Oil and Hydraulic Oil, with specially designed Filter Media of absolute Filtration like Cellulose media, Glass fibre media suitable for high pressure and high temperature applications. OIL FILTER (DISPOSABLE TYPE)MICROFINE designs disposable type Oil filter cartridge elements ranging from 1 micron to 15-20 microns capacities. OIL FILTER (REUSABLE TYPE)MICROFINE also offers Reusable Oil Filter Cartridges with SS woven media ranging from 3 microns to 100 microns and Sintered Steel Fibre Non-woven media ranging from 1 micron to 25 microns

MICROFINE offers Cartridge Filters for Natural Gas Application with specially designed Glass Fibre mat media. Natural Gas Filters are used in various Sectors like Power Generation Utilities, Fertilizer Industry, Industrial Sectors (For Steam and Fuel furnaces) and as raw material for various chemicals in Petrochemical units. MICROFINE offers Natural Gas Filter elements designed to remove particulate and liquid contaminant from Natural Gas. • Finer Filtration• More Complete Liquid Removal• Proven Performance Improved Filtration/Separation EfficiencyMultiple layers of fiberglass in graduated fiber diameters assure maximum efficiency by distributing collected particles evenly throughout the filter body. The fine fiberglass inner wrap assures finer moisture separation. Positive Media Migration Barrier An inner wrap of cellulose filtration material provides a positive media migration barrier. Improved Handling CharacteristicsAn outer wrap of resin coated fiberglass screen retains element shape and density through its useful life, protects against handling damage, and reduces the exterior dirt accumulation typical of fuzzy cotton or synthetic stockinette coverings. Steel End Caps Galvanized steel provides corrosion resistance while plastisol adhesive assures complete bonding of filter media to end caps. Buna GasketsSeal tightly to mounting stool and top seal plate. Efficiency : 99.9% down to 1 micron to 5 microns.

MICROFINE offers specially designed Minipleat HEPA Filters which handle large volumes of Air at a low pressure drop.  The Minipleat HEPA Filters have a extended filtration area than conventional deep pleat filters with a very high efficiency.  Normally used for critical application areas like Air Intake for Gas Turbines, Compressed Air Filtration. Suitable for turbulent flows Mini-Pleat box type filters as an alternative design to aluminium separator style filters for increased air flow & lower pressure drops. Finely pleated, water repellent micro glass fiber media & thermosetting bead separators. Two part urethane sealant Wood and Metal constructions Efficiencies: 95%, 98%, 99.99% / 99.999% on 0.3 micron particles. Water repellent microfine glass fiber paper media. Media packs arranged in a perfect V-Shape offering lowest pressure drop. Two part urethane sealant Wood and Metal constructions with or without header frame. Efficiencies: 99.97%, 99.99% & 99.999% down to 0.3 micron particles. Mini-pleat panel filters designed for use in laminar flow clean rooms & clean workbenches. Finely pleated, water repellent micro glass fiber media & thermosetting bead separators. Two part urethane sealant Wood and Metal constructions Available in efficiencies 95% / 98% / 99.97% / 99.99% / 99.999% on  0.3 micron & 99.9995% @ 0.12 micron particles (H10 to U15)

MICROFINE offers Simplex and Duplex Strainers using carbon steel (C.S) with rubber line or also with SS 304, SS 306 metal finish. These type of Magnetic Bucket / Basket Strainers are recommended for use where liquid needs to be separated from Iron particles.

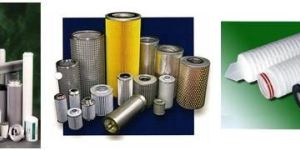

MICROFINE offers various types of Industrial Fluids / Liquids such as Lube Oil, Fuel Oil and Hydraulic Oil Filter Elements suitable for Power packs, High pressure Hydraulic applications.  Specially designed Filter Media of absolute Filtration like Cellulose media, Glass fibre media used as Filter media suitable for high pressure and high temperature applications.  MICROFINE designs disposable type Hydraulic oil cartridge filter elements ranging from 1 micron to 15-20 microns capacities.MICROFINE also offers Reusable Hydraulic Oil Cartridge Filters for ATF (Aviation Turbine Fuel) with SS woven media ranging from 3 microns to 100 microns and Sintered Steel Fibre Non-woven media ranging from 1 micron to 25 microns suitable for Working pressures from 25BAR-250BAR and Temperatures ranging from 40°C – 120°C.

Deep pleated microfine glass fiber paper media Corrugated aluminium separators having hemmed edges Two part urethane sealant Wood and Metal constructions With or without header frame Efficiency 95% & 98% down to 0.3m particles (H10 & H11 as per EN1822) Deep pleated microfine glass fiber paper media Corrugated aluminium separators having hemmed edges Two part urethane sealant Wood and Metal constructions With or without header frame Efficiencies 99.97%, 99.99% & 99.999% down to 0.3m particles (H12, H13 & H14 as per EN1822) Deep pleated microfine glass fiber paper media Corrugated aluminium separators having hemmed edges Two part urethane sealant Wood and Metal constructions with or without header frame Efficiencies 99.99% & 99.999% down to 0.3m particles (H13 & H14 as per EN1822)

MICROFINE offers GT Air Intake Filters with the following Specifications. Type: MICROFINE type filters are manufactured in cylindrical and conical shape Screen: Internal frame made of Electro Galvanized expanded steel to ensure that media keeps its formEnd caps: Galvanized steel or plastic end caps bonded with polyurethane sealant to obtain zero by-pass cartridge filter Gaskets: Rigidly bonded on each cap Media stabilization: Self-supporting Media: High Efficiency cellulose media blended with polyester fibre suitable for pulse clean filtration moisture resistant and cleanable.

MICROFINE offers Filter Assemblies for Industrial strainers including Magnetic Simplex and Duplex Strainers, Conical Strainers, Bucket Type / Basket type Strainers. These products are manufactured as per Customers specification.

MICROFINE offers Duplex Strainers for various liquid / fluid applications where there is a requirement of continuous operations and flow is not interrupted, the wide range of Duplex Strainers offered by us meets the defined application requirements. These can also be operated with 100% capacity and connected in parallel by means of 3 ways ball valve/ butterfly valve. These valves are operated manually as well as automatically.

MICROFINE offers wide range of Dust collector Bags for Air pollution control and emission control systems which are very critical in high growth areas of Textiles, Cement, Steel, Chemicals, Pharmacy, Plastics, Power Generation and other industrial field. We have developed wide range of High Temperature fiberglass filter bags, for dust filtration and products recovery for many a industries.  We manufacture Filter bags for all types of bag house such as Pulse Jet, Reverse air and Mechanical shaker. Different styles of bags that we manufacture are snap and top, ring top, collar type, raw top, wear cuff, beaded cuff top, pocket top, tail top, expansion rings, open top, strap top and others.MICROFINE offers different varieties of Non-woven Filter fabric media for our Bags like Polyester, Polypropylene for normal Temp. applications and also Nomex and Ryton fibre filter bags for high temp. applications. MICROFINE offers Pleated melt blown / PP Media Bag Filters with self supporting cages and also extended Filtration area due to pleated design. MICROFINE offers Bag House Cages and accessories apart from Filter Bags as per standard and custom made designs.

MICROFINE offers / manufactures / designs wide range of specially designed Filter media for Pre and Fine Filtration with the efficiency of Air Filter Elements as high as 99.99% of the atmospheric dust and contamination.PRE FILTERSPre (Or) Primary Filters are designed for Coarse Filtration where 90-95% of the dust particles ranging from 10 microns and above are arrested and normally are cleanable type. Rigid metallic frames are being used in flange or box type as per the requirement of the mounting.SECONDARY FILTERSSecondary Filters (Or) Fine Filters being used in two stage or three stage filtrations with an efficiency of 95-99% down to 5 microns and below of the dust particles are only allowed into the air stream. Rigid metallic frames are being used in flange or box type as per the requirement of the mounting. MICROFINE offers cleanable and disposable type of elements for Fine Filtration.FINE FILTERSFine Filters which are normally being used as Final Filter in three stage Filtration with an efficiency 99.99% down to sub micron levels of dust contamination being arrested. These Filters are designed for absolute Filtration used in clean rooms for HVAC applications. Rigid metallic frames are being used in flange or box type as per the requirement of the mounting. 4 images to be recovered.
