Nagarjuna Fertilizers & Chemicals Limited - Micro Irrigation Nacharam, Hyderabad, Telangana

Leveraging on our rich industry experience, we offer to the esteemed clients Sprinkler Irrigation System, which is designed as per international standards. Sprinkler Irrigation System is manufactured using high grade components thus ensuring its flawless quality and durability. Moreover, we provide the same in safe packaging and at highly competitive rates. Specifications : Recommended Spacing : Upto 5 mtrCoverage Diameter : 7.4 to 71.4 mtrDischarge Flow Rates : 1 36 to 330 ltr/hrOperating Pressure Range : 1 to 3 kg/cmPin & Bayonet Connectors are available to connect to LateralWith provision of bayonet nozzle it can be used for high operation pressure Features : Uniform water application maintains optimum soil moisture ratioUniform germinationNo Soil Erosion- soil conservationFine droplets and shorter irrigation intervals _ creates micro climatic conditions, beneficial for cropUniform application of fertilizer-even for organic manure applicationFrost protectionEasy to install & dismantleEasy visual operationBeing a versatile system . can be used for 2-3 ; crops each yearDistance between sprinklers : l0~12 mtr Low applicationrate : 4-5mm/hrLow operating pressure, thus energy saving Environment friendly, avoids leaching of soil & fertilizers in ground waterDurable and weather resistance — long life span Applications : Green houses Horticulture and agriculture Poultry Cooling Creation of micro climatic conditions Under Tree CultivationSuitable for overhead cooling and frost protectionIdeal for frost control 0ºC TO 3ºC Used For Sprinkling On : PotatoOnionGarlic Ginger CabbageCauliflowerStrawberryGroundnutMustardPulsesTea & Nursery Performance Data Nozzle (mm)Pressure (kg/cm2)Discharge (ltr/hr)Mist Sprayer (Diameter)Range Rotor (Diameter)Inverted Rotor (Diameter)0.8 Black1241.6--2341.8--3422.0--1.0 Purple1361.97.07.22522.28.08.03622.48.08.81.2 Orange1522.27.48.22762.68.28.83953.08.49.61.4 Blue1722.67.68.621023.28.89.631273.69.410.41.6 Yellow190-7.8-2130-9.4-3160-9.6-1.8 Green11153.28.29.221624.010.410031954.210.410.62.0 White11353.6-9.421984.2-10.632454.8-11.02.3 Brown11824.0-9.622605.5-10.833305.8-11.4

We are a leading Screen Filter Manufacturer, Exporter and Supplier based in India. The Screen Filter is manufactured as per IS 12785:1994 Specifications. Various quality tests are carried out before dispatching the Screen Filter to the market. We make available the Screen Filter at economical prices. About Screen Filter : Aperture size 125 micron (120 mesh)Male threaded end connectionMS powder coated bodyNominal operation pressure 2 barMaximum pressure drop 0.2 bar Applications : Primary filter for well Secondary filter for open wells Availability : 2", 2.5" & 3" Inlet / Outlet sizeFlow range : 10-40 m3/ hr

Clients can avail from us a wide array of PVC Pipes, which are fabricated in compliance with industrial standards and norms. PVC Pipes are high on demand in the national as well as international markets owing to their flawless quality and efficient working profile. Obtainable in competitive prices and secured packaging, PVC Pipes provided by us are the best available in the markets. Specifications : Sizes Available : 40mm till 200 mm Pressure rating : 2.5 kg till 10kg/cm2 Attributes : Excellent resistant to salts, acids, alkalies, organic chemicals Capable to handle water from pH 2 to 12 PVC pipes are thermoplastic i.e. withstands any deformation in shape owing to excess heat or earth movementsResistance to abrasion Dimensionally accurate Ease of installation Longer service life Used For : Rural & Urban water supply schemesAgricultural & Lift Irrigation etc

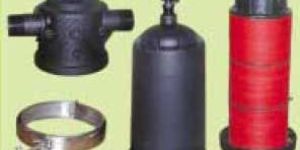

We manufacture the Plastic Disc Filter using the Disc Filtration Technology. The Plastic Disc we offer is extensively used for removing inorganic impurities from water. Clients are eased with the availability of the Plastic Disc at rock bottom prices within the scheduled time frame. Thus, we are known as dependable Plastic Disc Manufacturer, Exporter and Supplier located in India. Attributes : Excellent performance due to three dimensional filtrationHigh Volume filters with increased flow capacityEasy opening & cleaning due to clamp systemEasy Installation Applications : Agricultural sector Industrial usage Installation : Filter can be installed as a single unit or in a filterbank. Standard manifolds are available to accommodate various multiples.Install a valve before the filter to close the water supply for cleaning purposes.Ensure that the filter elements are always positioned horizontally when installed.Note the direction of flow when installing. The arrow on the filter denotes flow direction. Dismantling for cleaning : Ensure that water pressure is turned off. Never open clamps while under pressure.Unlatch clamps are remove filter cover.Loosen the tightening cap and pull out the telescopic spine and hose off discs.When re-assembling, ensure the O-rings are properly in place. Assembly : Position filter discs on to disc spine.Please ensure that when cap is tightened properly the number of rings fitted does not exceed the length of the filter elements.Insert the detachable spine back into it’s seat.Turn fixing cap clockwise to complete tightening of the discs.Clamp should be fitted over the closing edges. Maintenance : If head loss remain high after flushing, the rings may be clogged with lime depositsHydrocloric acid treatments of rings is then recommended. Specifications Flow Rate 2" : 30 m3H3" : 50 m3H Pressure Rating Up to 10kgcm2 Inlet Outlet 2” 3” End Connection BSP Thread Filtration Grade 130 micron120 mesh Material Housing : PolyamideFiltering Elements : Polypropylene DiscClamp : Stainless steel.

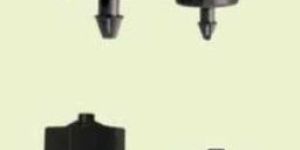

Avail from us a wide gamut of On Line Dripper which is high on demand in the market. The On Line Dripper can be availed at the market leading prices. We have established a dependable name as a reliable Manufacturer, Exporter and Supplier of On Line Dripper in the industry. About On Line Dripper : Open able in three pieceSimple in cleaningHeavy dutyLong -lasting Guaranteed efficiency Suitable For : OrchardsPlantationsField crops, etc. Available In : 4 Iph & 8 Iph Material : Housing : PolyamideFiltering Element : Polypropyklene DiscClamp : Stainless steel.

We make available in the markets Micro Sprinkler precisely engineered Micro Sprinkler. Micro Sprinkler offered by us is suitable for plants requiring high water treatment and widespread root zone. Clients can avail the same at competitive prices and within committed time-frame. Consequently, we are recognized as one of the prominent Micro Sprinkler Manufacturers, Suppliers and Exporters from India. About Micro Sprinkler : Wide array of spray patterns and trajectoriesColour coded nozzles for flow rate identification Available In : 40 lph to 120 lph for 1 kg pressure Features : Compact designLow maintenance costHigh-end performanceReliable operationDurableMinimal maintenance Applications : OrchardsOil palmsVineyardsHome gardensLandscape gardens Coconuts and Horticultural Plants

Light in weight, durable, rust resistant and longer functional life are exhortations that best define the range of Irrigation Fogger we offer. Manufactured in compliance with international quality standards, Irrigation Fogger provided by us is high on demand in the national and international markets. Furthermore, this Irrigation Fogger is easily accessible at most discounted rates. Features : Built in Leakage Prevention DeviceVery small droplets (average of 90 microns) for minimal foliage wetting (pulsed operation)Easy to installLow maintenance costEffective performance Flow rate : 40 I/h (4x10 L/H outlets)Operating pressure : 4.0 bar Suitable For : Cooling, humidifying and pesticide spraying in greenhouses.

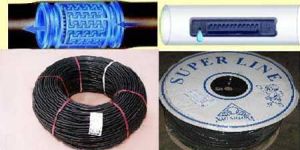

In the Integrated Drip Lines we offer emitters are inserted at specified spacing during the co-extrusion manufacturing process. Integrated Drip Lines dispatched by us in the markets is made using high quality raw materials. High strength, durability and longer working life characterize the range of Integrated Drip Lines that we manufacture. Integrated Drip Line is obtainable at market leading rates. Attributes : Easy-to-use drip lateral for a wide range of crops.One piece integral labyrinth cylindrical dripperUnique clog-resistant dripperOffers longer allowable lengthNon-collapsible cylindrical lateral tubeFacilitates quick spreading and easy rollingAvailable in various emitters spacing to suit different crops need Suitable For : Field crops : Cotton, SugarcaneClose-spaced crops : Vegetables, Strawberry, , Mulberry, Medicinal & Aromatic plantsHorticultural Crops : Banana, Papaya, Vineyards, Orchards, PlantationsGreenhouse : Flowers & Vegetables Available In : 16mm and 12mm outer diameter

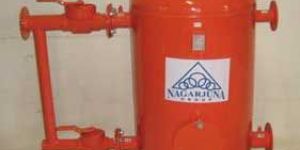

We are known as a prominent Gravel Filters Manufacturer, Exporter and Supplier based in India. The Gravel Filters we offer is extensively used as a primary filter, effectual against organic impurities, algae and against very fine suspended particles. At market leading prices we offer the Gravel Filters. About Gravel Filters : Offers wide range for selectionVertical model for effective filtrationFiltering media quartz, of grade 2 to 3 mm.Mild steel powder coated corrosion resistant bodySimple arrangement with back flush assemblyPressure testing ports at inlet and outletEasy to open and clean Available In : 2", 2.5" & 3" inlet/outlet size with filtering capacity 10/20, 30 and 40 m3 /h respectively

Manufactured in accordance with international quality standards, Fertilizer Tank dispatched by us is the best available in the markets. Consequently, we are looked upon as one of the most reliable Fertilizer Tank Manufacturers, Exporters and Suppliers based in India. About Fertilizer Tank : Mild steel constructionPowder coated with thick red colored pure polyester from both inside and outside surface for protection against corrosion and weather effectsTurbulent inlet ensures thorough mixing of chemicals and / or fertilizersSeparate valves are provided on the inlet & outlet to control the injection rateSpecial provision of strainer on the outletDrain port to flush the tankMaximum working pressure Available In : Customized sizes 30, 60, 90 & 120 liter.

Fertilizer injector that we manufacture is fabricated using high grade material. Keeping in mind the current market standards, we have fixed reasonable prices for the fertilizer injector offered by us. used for : proportional fertilization. I.e., for injection of fertilizer in constant proportion to irrigation waterchemical treatment like acid treatment & chlorination available sizes : 3/4",1",11/2", 2" specifications s no. Injector size motive flow ( l/min head (m pump h.p 1 3/4" 1 1/2" 20 0.5 2 1" 65.5 20 0.5 3 1 1/2" 138.8 20 1 click here for performance chart
