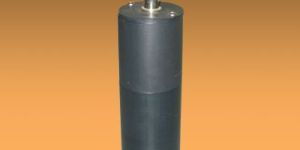

WIDE END WINDOW G.M. DETECTOR
This G.M. Detector offerred, is enclosed in a PVC cylindrical shell with MHV socket with a suitable HV cable it gets connected to the counting system.This detector is widely used for Beta sample counting application along with either G.M.Counting system GC602A or Radiation counting System RC605A manufactured by Nucleonix systems. This detector is of Centronic / LND or it's equivalent make. Window Areal Density - mg/cm sq : 1.5 - 2.0 Eff. Diameter - Inches : 1.15 Material : Mica Wall Thickness - Inches : 0.06 Eff. Length - Inches : 1.45 Eff. Diameter - Inches : 1.125 Material : 446 SS Tube Dimensions Material Diameter - Inches :1.32 Max. Overall Length - Inches : 2.1 Gas Filing : Ne+Hal Gamma Sensitivity 50 CPS / mR/hr ( Co60 ) Operating Characteristics Max. Starting Voltage : 375 Recommended Operating voltage : 500 Operating voltage range (in volts) : 450-750V
...more
UNIVERSAL HAND-HELD CONFIGURATOR
Universal Hand Held Configurator, Type UH801 is a latest addition to the NUCLEONIX range of instruments designed around a microcontroller. This is a battery powered equipment meant for configuration of all installed monitors like area monitors, air monitors, hand & foot monitors and contamination monitors of NUCLEONIX make. This instrument works on rechargeable batteries and uses 7.4V Li-ion configuration battery pack. This instrument communicates through its RS485 port using MODBUS-RTU protocol with all the monitors and is used for configuration and monitoring of parameters specific to each of the equipment.
Features : Micro-controller based, compact hand-held unit. Works on 7.4V Li-ion battery pack. Communicates with entire range of installed Nuclear Instrumentation like Air Monitors, Hand & Foot Monitors and Contamination Monitors.Uses 16x4 large area LCD display. Etc
...more
TUBE & ROD SOURCES
We now offer a selection of exempt quantity gamma sources encapsulated in standard size test tubes or rods for use with well type radiation detectors. These sources are exempt sources and of nominal activity. The isotope is deposited as a point source in the bottom of the tube and is then sealed with epoxy. Two tube sizes are stocked as standard, 13x100mm and 12x75mm, which is shipped as the standard if the other size is not specified. Rods are available as 5" x 0.375" -which will be shipped as the standard if the 0.5" diameter rod is not specified and 5" x 0.5".
...more
TRUCK MONITORING SYSTEM
CONTAINERTRUCK MONITORING SYSTEM Type: TR1030TR1039 manufactured by NUCLEONIX has been primarily designed to detect Radioactive Contamination (RaC) � Gamma Radiation, present in a moving vehicle loaded with steel scrap metal finished goods. Hence, this system finds use in steel industry, forging units and in large foundries to monitor incoming scrap and also to monitor outgoing finished products at entry and exit gates for radioactive contamination. This system could also be used to detect clandestine movement of Radioactive and special nuclear material across the borders, sea ports, airports, nuclear and other high security installations in trucks and containers.
...more

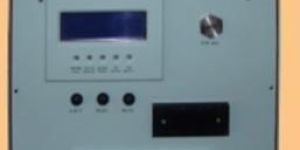

TLD BADGE READER
TLD READER SYSTEM Type TL109-D developed and manufactured by NUCLEONIX systems is a personal dosimeter reader system designed to read the dose recorded by the wearer of the TL Dosimeter along with personnel ID punched code on the badge automatically during readout cycle. The TL dosimeter which records the integrated dose received is to be worn by the personnel who are to be monitored for their radiation exposure, which can be estimated on the basis of the TL Dosimeter readings. TLD dosimeter works on the property of certain materials which absorb energy when exposed to X, a or ß rays. On heating, the absorbed energy is released in the form of visible light which is proportional to the absorbed energy. TLD Badge: It comprises of a plastic badge and thick aluminium card on which three circular holes are punched and teflon embedded TL discs (CaSo4 : Dy) are chipped into the corresponding holes. A symmetric ‘V’ cut provided in the card permit the card to be loaded in the plastic badge only in one way and ensure proper positioning of the badge in the magazine. The TLD card is provided with three rows of punched holes for the purpose of badge identification. The holes punched in a specified sequence to provide unique ID to each of the personnel. This ID is read out by the TLD Reader at the time of measurement.
...more

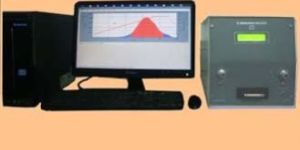

THERMOLUMINESCENCE READER
Thermo luminescence Reader Type TL1009 designed and offered by NUCLEONIX SYSTEMS is a versatile controller based unit, facilitating the user to subject the TL sample under study to the desired heating profile, to record the digitized TL glow curve. This unit stores both integral value and digitized glow curve into EEPROM memory. This unit records the data in 200 channels, temp, TL intensity & Run time values. Entire electronics including PMT, HV bias, Temperature controller circuit, Heater transformer heater strip, sample drawer assembly, data acquisition electronics is all integrated into a single enclosure. The user interface to the unit is through a powerful software GUI, coded in .net which runs on Windows platform. This system essentially works as a PC controlled TLD reader with command buttons and dropdown menus defined for various functions.
Features : Built-in USB port facilitates connection to PC,Built-in USB port facilitates connection to PC,Heating rates are 10°c / sec to 40°c / sec. Etc.
...more

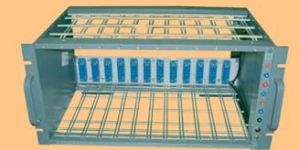

STANDARD INSTRUMENTATION BIN
Nucleonix Modular Instrumentation Bin IB401 had been designed to provide mechanical and electrical facilities to accommodate various nuclear instrument modules. Upto 12 single width modules or combination of multiple width modules can be accommodated. The module guiding channels made up of plated steel rods facilitate easy sliding-in and positioning of modules at the same time, adding strength to the bin. The power ON-OFF switch, indicating lamp & monitoring points are all mounted on a thin vertical control panel conveniently located on right extreme of the bin. Also the power supply is conservatively rated to power any combination of modules that the bin will physically accommodate. IB401 modular system Bin provides mounting space for twelve standard module width of the 8 ¾ inches high type. The twelve corresponding module connectors are provided with necessary wiring for distribution of the all the standard power supply voltages. A small control panel not occupying any of the available module space is located at the right side of the bin, providing control switches, test points and indicator lamps for power supply.
Features : Sturdy and elegant mechanical construction,Designed to house standard modules with amphenol connectors,Can accommodate 12 single width modules or combination of multiple width modules. Etc.
...more
STACK GAS MONITORING
Stack Gas Monitor, Type: SM809 manufactured by Nucleonix Systems, designed using state-of-art electronics is primarily used for monitoring Alpha, Beta activity present in the form of suspended particulate in air and Kr-85 preset in the form of gas. It is very much essential to monitor the quality of air in & around Radiochemical plants, reprocessing plants and other similar facilitates. Usually stack, by pass lines are let into this system & after measurements, it is connected back to stack. It essentially has an air suction system comprising of a suction pump, rotometers to measure air flow rate, beta suction chamber with arrangement for trapping of suspended dust particulate onto the filter paper. An end window GM tube of 1� dia facing the filter paper counts for Beta activity in CPM CPSBq on continuous basis. In addition this system has Alpha air-sampler detector assembly consists of a filter holder 60mm dia, a suction chamber with air inlet and outlet & detector housing fabricated with stainless steel .Alpha Detector consists of ZnS (Ag) deposited on loose mylar support of 50mm dia coupled to matched PMT with Pre-amplifier. Detector Efficiency achieved is of the order of 25% for Plutonium alpha particles over the entire window area.
...more
SPECTROSCOPY AMPLIFIER
Spectroscopy Amplifier Type : SA524 is a high performance nuclear pulse shaping amplifier, ideally suited for use with all types of detectors such as germanium, silicon surface barrier and Si(Li) detectors. This is a single width NIM module with pile-up rejector (PUR), gated baseline restorer (BLR), auto threshold, diode limited unipolar output, BUSY and count-rate output as some of the key features designed into it. Some of the main applications of spectroscopy amplifier involve nuclear pulse height spectroscopy, nuclear timing spectroscopy, Counting Systems etc.
...more
SPECTROMETER SYSTEM
Nucleonix Systems offers wide range of NaI Scintillation Detectors of different sizes both with flat & well type crystals, to meet the requirements of wide range of users for Gamma ray spectrometry measurements. Scintillation detectors offered include 1"x1", 2"x2" & 3"x3" NaI integral assemblies with built-in pre-amplifiers. These detector assemblies give excellent stability, superior performance & good resolution in the range of 8.0 to 9.5% for Cs-137. Scintillation detectors of other sizes can be offered against user specific requirements also.
...more

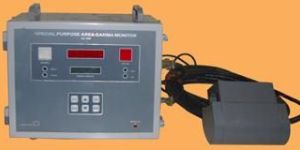

SPECIAL PURPOSE MONITOR
Area Gamma Monitor type GA 720S, manufactured by NUCLEONIX SYSTEMS employs based design and is primarily meant to serve as a Gamma Zone Monitor to indicate dose rates and give alarm, visual and aural, once the dose rates exceed the preset level fixed by the user. Also relays will be activated on alarm. This unit will be useful for monitoring Gamma dose rate levels in working areas of various Radiological Nuclear facilities which may include reactor building, Atomic power stations, Radiochemical Reprocessing plants, waste immobilization plants & other similar facilities. This unit indicates the dose rate digitally on a 6 x 7 segment LED display. Each of the annunciator windows for NORMAL and ACTIVE conditions has LED array. Once alarm triggers ACTIVE window starts blinking. Unit can be programmed configured using front panel keypad which can be deactivated after completion of programming. Configuring the unit namely setting preset level, setting reset mode - AUTOMANUAL etc are achieved by this keypad. Unit also performs self-diagnostics for HV failure, pulse processing electronics failure and detectors failure on power up. Alarm acknowledge and reset pins are provided on the circular IO connector for remote acknowledge & reset.
Feature : Performance specifications confirm to ANSI N42.17A EMI/EMC compliance as per IEC 61000. Structural design seismic qualified confirming to IEEE-344 STD. Instrument enclosure and detector assembly are IP-54 compliant. Radiation tolerant upto 104 R. Etc
...more
SOURCE KIT
SK 210 offered by NUCLEONIX contains one each of uncalibrated Beta and Gamma reference sources. These are low activity disc sources of the order of 0.1 to 3 micro curie for Beta and Gamma. Gamma source disc is evaporated and sealed on 25mm dia X 5mm thick plastic disc. Where as Beta source disc is evaporated and sealed on 25mm X 10mm thick plastic disc and covered with 10mg sq.cm aluminized Mylar window These radioactive sources offered are from BRIT & are uncalibrated reference sources with an approx accuracy of ± 10% in activity. This SK 210 is an ideal choice along with G.M. counting system for educational institutions for teaching lab experiments. Source kit containing the disc sources is offered in an acrylic box of dimensions 86mm X 46mm X 25mm (approx).
...more

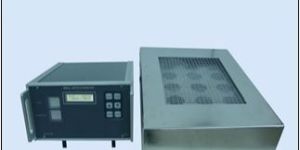

SMALL ARTICLE MONITOR
Small Article Contamination Monitor, Type: SAM802 manufactured by Nucleonix Systems Pvt Ltd. SAM802 is a high sensitivity Contamination Monitor designed for checking of tools & articles of personnel working in Nuclear Installations. This product is designed for detection of BetaGamma contamination in the articles placed in the sample tray placed inside detection cavities. The detection assemblies are based on PANCAKE GM detectors. Additionally lead shielding is provided of adequate thickness for reducing the background and getting desired MDA. Countscount rate, elapsed time are indicated on 16 X 2 LCD Display. Other textual messages also are indicated in the display. LED indication will be provided for clean, contaminated and high background conditions. Equipment is designed for 240V AC, 50Hz operation.
...more

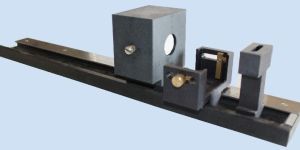

Sliding bench Type
Sliding bench SB205 is designed specially for the purpose of mounting bench the G.M counter accessories for doing the experiments in a most convenient fashion. This essentially consists of a bench with sliding groves with a graduated S.S scale fixed on one side of it. Scale has graduations both in cm & inches upto 50cm20 inches. There are three vertical sliding mounts, one for mounting of End Wndow G.M detector, Second is ‘Absorber Holder’ & Third is ‘Source Holder’ & source mounts. Each of these mounts can be positioned along the slide scale to have required distance between the end window to the source with absorber mount interposed in between. End window detector is housed in PVC enclosure with MHV socket fixed on to it.
...more
SINGLE CHANNEL ANALYSER
Single Channel Analyser Type : SC530 manufactured by NUCLEONIX is designed primarily to be a constituent unit of Modular Gamma Ray Spectrometer Type : GR611M. Single Channel Analyser SC530 is essentially used for pulse height analysis. It has THREE modes of operations namely INTEGRAL, NORMAL & WINDOW. In Gamma Ray Spectrometer the scintillation detector pulse output is proportional to the Gamma Energy and hence accurate measurement of pulse height by Single Channel Analyser will give the energy information.
Features : Accepts both positive unipolar or bipolar pulses as input,Modes : INTEGRAL, NORMAL & WINDOW modes of operation Etc.
Dimensions : Standard single width module
...more
SEMI-AUTOMATIC TLD Badge Reader
Semi Auto TLD Badge Reader TL1010S is a personal monitoring system, designed to read the TLD card (TL dosimeters) worn by radiation workers. This Badge Reader system is designed using state of art electronics, improvised electro-mechanical system, embedded code and software to load and read the TLD cards for TL glow curve dose. System facilitates entry of ID number for the person and his dose record and glow curve can be stored in the system. TL dosimeter is heated by hot gas (N 2 ) jet to 280 o C using a SS heater assembly & TL output is recorded using PMT where integral of the current output is proportional to the dose. It is a Thermoluminescent dosimeter based personnel monitoring system. Thermoluminescent dosimeters make use of the property of certain materials which absorb energy when exposed to X, Gamma or Beta radiation. On heating, the absorbed energy is released in the form of visible light. A plot of light intensity emitted against temperature is known as a glow curve. For a given heating rate, the temperature at which the maximum light emission occurs, is called the glow-peak temperature and it is characteristic, of the individual TL material (also called phosphor). The quantity of the visible light emitted (TL output) is found to be proportional to the energy absorbed by the TL material. The TLD personnel monitoring system essentially consists of two major parts: TLD badge and the TLD badge reader. The TLD Badge Reader comprises of a plastic cassette containing three Teflon TLD discs (13.3mm and 0.8mm thick) that are mechanically clipped on to circular holes (12.0mm) punched in an aluminium card (52 x 30 x 1mm). The TLD Badge Reader is designed to measure X, Gamma and Beta radiation dose. The metal filter combination (1mm Al + 0.9mm Cu) is provided to reduce the photon energy dependence of the TL discs. The TL badge reader is calibrated such that the TL output of the disc under the metallic filter reads directly the gamma radiation dose. .
...more

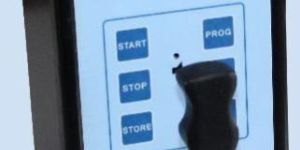

SCINTILLATION MONITOR
Wide Area Alpha Scintillation monitor type AM736W manufactured and supplied by NUCLEONIX SYSTEMS is provided with drawer assembly to facilitate sample counting, both in Planchets & on filter paper. This unit serves both as a contamination monitor cum counter. It uses a ZnS(Ag) scintillator screen as the Alpha scintillator which is covered with a thin aluminized mylar window to prevent light leakages. Efficiency better than 25% at centre is guaranteed. It is primarily used for routine checking of Alpha contamination on floor, work benches, walls and beams etc. in active labs. Also facilitates counting of wipe samples, air activity samples etc. It is amicro-controller based unit designed to indicate contamination in CPS or CPM or counts for a 'preset time' to indicate on LCD display. It has large sensitive area of about 125 Sq.Cm. It operates on 6V, dry cells. Well designed 'handle'for holding the unit hasbeen provided.
Feature : Measures contamination in CPS, CPM and Preset timer modes,16x2 LCD dot matrix display,Large Scintillator to cover surface area of approx. 125 Sq.Cm. Etc.
...more
SCINTILLATION DETECTOR FOR LEAD
This Lead Shield is designed to shield Scintillation Detectors of NUCLEONIX make. LS 250 is built-up of SEVEN interlocking rings, excluding top & bottom discs. The bottom ring is provided with a small opening so that the cables from the Scintillation Detector Pre-amplifier base could be taken out for connecting to the Gamma ray spectrometer counting system. This Lead Shield Type: LS 250 is compact and just enough to accommodate any of the Scintillation Detectors supplied by NUCLEONIX. The top disc is provided with handle to lift is away for introducing the source on the flat crystal top and liquid vial into the well type crystal respectively. The building block type of construction of lead shield makes it convienient to assemble. The inner side of the lead shield is lined with Aluminium to minimise scattering.
...more

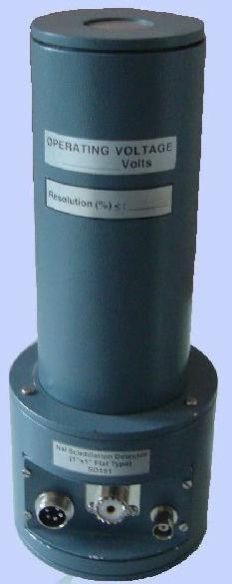

SCINTILLATION DETECTOR
NUCLEONIX Scintillation Detector (1”x1” - Flat Type) SD151 is designed to be used with Gamma Ray Spectrometer (Integral) Type GR612 or modular system Type GR611M or its equivalent unit. The integral assembly consists of NaI (Tl) crystal size 1”x1”, integrally coupled to a 1 12 inch bialkali phototube with mu-metal magnetic light shield. The crystal and the photomultiplier tube are housed in an aluminium container. The assembly is connected to a solid state Pre-amplifier PA311 of NUCLEONIX make. Connectors are provided on Pre-amplifier for EHT, low voltage and signal output. The complete Scintillation Detector can be housed in a Lead Shield. The pre-amplifier is designed to suit a wide range of standard Scintillation detectors.
...more

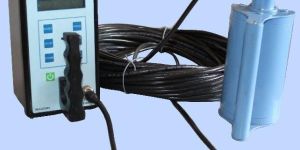

Scanning System
Uranium Ore Face Scanning System, Type : FS900 manufactured by Nucleonix Systems is exclusively designed to meet the requirements in Uranium mines for oreface scanning for mining purposes to estimate the ore grade. Electronic measuring unit (b) Face scanning probe assembly comprising of a detector with adequate shielding is 2p geometry and a long connecting cable.
...more

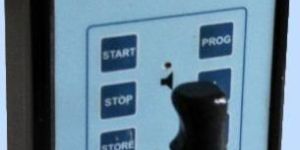

RADMON Survey Meter
RADMON (micro) Type : RM703 is a G.M. Detector based, battery powered, hand-held, general purpose radiation Survey Meter. This will be useful for dose rate measurements in Nuclear installations, Radiochemical plants, Reprocessing plants, etc. Additionally it will be useful in medical, agricultural, industrial and other installations where radioactive isotopes are used for a variety of applications. This product is designed around a Microcontroller Chip. It is provided with alpha Numeric LCD display for indicating the doserate in digits, dose rate as a bar graph, cumulative dose in digits. It covers wide range from 0 to 20Rhr in two range with auto ranging. This unit has a facility for storing the data into built-in EEPROM along with real time. The stored data can be recalled on to the display or transmitted to PC.
Feature : Conforms to ANSI N42.17A performance specifications for Health Physics instrumentation (portable) & compliant,It is designed around Microcontroller Chip,Uses energy compensated GM Counter. Etc
...more
RADIOACTIVE CONTAMINATION ANALYSER
Radioactive contamination Analyzer (RaC) RA1006 is a laboratory instrument. It is highly recommended for Radio analytical labs. Additionally, it is also highly recommended for steel & foundry industry for their QA departments to measure RaC in their components products. System measure RaC in Bqg. Most of the portable hand held meters cannot measure contamination in Bqg. Also hand held meters may fail to detect very low levels of contamination less than 0.1 Bqg, unless carefully measured & interpreted. Whereas RaC measurement by this system is a fool proof method. This is a most sensitive equipment designed to record Gamma Spectra of the sample under study. This consists of a 3” X 3” NaI scintillation detector with Pre-Amplifier, High Voltage, Linear Amplifier Multi-Channel Analyzer System. Detector is covered by 5060 mm lead shielding to reduce background. This system can detect nuclide specific contamination in any steel alloy casting sample & quantify it also, in BqKg or Bqgm etc. Sample of Approximately 2kg in the form of small pellets in a cup of 3” dia. X 3” height can be placed on the detector for the measurement. System gives nuclide peak & area under the peak will quantify the contents in Bqgm..
Features : System is useful in measuring RaC in metal samples,Highly recommended for medium / large scale recycle steel industry having smelting furnaces.,1K/4K/8K channel resolution. Etc.
...more
Radiation Monitor
RADMON (micro) Type : RM703E is a G.M. Detector based, battery powered, hand-held, general purpose radiation Survey Meter. This will be useful for dose rate measurements in Nuclear installations, Radiochemical plants, Reprocessing plants, etc. Additionally it will be useful in medical, agricultural, industrial and other installations where radioactive isotopes are used for a variety of applications. This product is designed around a Microcontroller Chip. It is provided with alpha Numeric LCD display for indicating the doserate in digits, dose rate as a bar graph, cumulative dose in digits. It covers wide range from 0 to 20 R/hr above the 20 R/hr it will indicate the OVR in the display. This unit has a facility for storing the data into built-in EEPROM along with real time. The stored data can be recalled on to the display or transmitted to PC.
...more

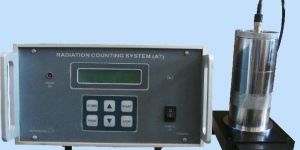

RADIATION COUNTING SYSTEM
Radiation Counting system, type RC605A manufactured by NUCLEONIX is a versatile state of art integral counting system designed around eight bit microcontroller chip for using with a variety of detector probes such as Alpha Beta Gamma scintillator detector probe or End window G.M detector probe. RC605A is Highly recommended for gross alpha activity contamination measurement (in water & other environmental samples) with alpha probe AP165 connected, for Radio analytical labs, Health physic counting labs and Environmental survey labs at Nuclear power stations. Radiation Counting System essentially has a processor card and other electronic circuits to generate continuously variable HV upto 1500V to be applied to scintillation detector Probes ( α , β , � ) or End window G.M.Tube, amplify the detector output and convert them to digital pulses for counting and displaying the recorded counts for a preset time. Microcontroller design facilitates programmability for background, standard and sample counting. The data can be downloaded into PC or printed directly onto a printer. System facilitates counting of samples either on planchets or filter paper.
...more

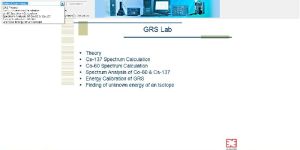

GRS EXPERIMENTS TUTOR
GRS Experiments Tutor is designed primarily, to illustrates various Gamma Ray Spectrometer experiments using NaI Scintillation detector. It is an innovative self learning software tutor having appropriate menus which, when invoked, illustrate topics, covering theory, principles of Gamma Ray Spectrometry, Experimental procedures etc. Experimental menus provided, facilitate one to enter data after performing the experiments, go through calculation procedures & plotting of graphs results etc. The following are the experiments that are covered in this Tutor software. Study of Cs-137 spectrum calculation of FWHM & resolution for a given scintillation detector Study of Co-60 spectrum calculation of resolution of detector in terms energy Spectrum Analysis of Co-60 & Cs-137 Energy calibration of Gamma Ray Spectrometer Finding an unknown energy of an isotope. The main screen of the GRS TUTOR is shown below, which indicates the list of Experiments.
...more

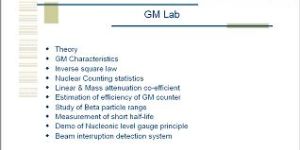

GM EXPERIMENTS TUTOR
GM Experiments Tutor is a comprehensive self learning software, designed to be student friendly. Primarily it is designed to illustrate various GM Experiments –Theory, Physics principles involved, facilitating one to go through & carryout the experiments in the lab. It enables data entry, calculations & plotting of graphs etc pertaining to each of the experiments done. It facilitates one to learn Physics in computer friendly environment. Experiments that are covered are given below along with few of the screens. Study of the characteristics of a GM tube and determination of its operating voltage, plateau length slope etc. Verification of Inverse Square Law for g - rays Study of nuclear counting statistics Linear & Mass attenuation co-efficient using gamma source (for Aluminium, Lead & Copper) Estimation of Efficiency of the G.M. detector for a) Gamma source b) Beta source To Study Beta Particle Range and Maximum Energy Measurement of short half-life The main screen of the GM TUTOR is shown below, which indicates the list of Experiments.
...more
DATA COMMUNICATION SOFTWARE
Data communication software DC900 has been developed for downloading the data from a variety of portable radiation survey meters manufactured by Nucleonix Systems. Primarily the nature of data stored in these survey meters contains information such as doserate in Rhr,mRhr,mRhr or Svhr, and if these meters measure additionally a or b contamination, it will be in CPS or CPM Additional information such as RTC data also may be present in respect of certain survey meters. This package is developed for downloading data from the following types of survey meters
Feature : Facilitates the user to open a data file which is saved previously,Facilitates the user to save the downloaded data to the hard disk,Facilitates the user to close the application. Etc.
...more
