Nutsche Filter Dealers in Hyderabad

• Weight: 100-200kg
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1year

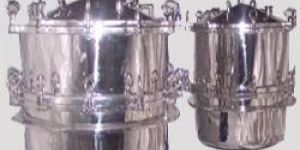

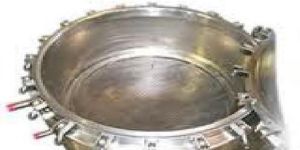

The Nutsche Filter is the industrial version of the well known laboratory scale Buchner Funnel except that it is designed to operate under either on vacuum or pressure. Present day Nutsche Filters are constructed to perform a multitude of tasks including reaction, filtration, cake washing and thermal drying on a single unit. As such these are very sophisticated machines with tight process control on parameters such as pressure, temperature and pH. Nutsche Filters are well suited for handling flammable, toxic, corrosive and odor-noxious materials since they are autoclaved and designed for use in hazardous and ex-proof environments when extremely safe operation is required. Nutsche Filters are available in almost any size with the larger machines for a slurry filling batch of 25 m3 and a cake volume of 10 m3. Such filters have a filtration area of 15 m2 and are suitable for fast filtering slurries that produce readily 0.5 m thick cakes. The Nutsche in its full configuration consists of four major components: The vessel The filter floor and cloth, woven mesh screen or sintered metal plate medium The re-slurry arms for cake washing and smoothing The cake discharge mechanism.

We are widely acknowledged as one of the reputed Manufacturers, Suppliers and Exporters of the Nutsche Filter. Nutsche Filters are ideal for solid or liquid separation in a completely non-metallic environment. For easy mobility our Nutsche Filters are mounted on four legs with castor wheels. The filter surface of Nutsche Filter removes contamination to upsurge product purity and allows fast, easy and thorough cleaning. Specifications Available sizes : 20", 25", 30", 40", & 50" Dia. as per requirement. Available in SS304 / SS316 contact parts

Our company is a distinguished Manufacturer, Exporter & Supplier of Nutsche Filter. The Nutsche Filter is manufactured using high grade material and parts. The Nutsche Filter we offer is durable, sturdy, rust free, dimensionally accurate and useful. Clients can avail high quality Nutsche Filter from us at the market leading prices. Features : Capacity : 250 mm diameter to 3000 mm diameter MOC : SS-316, SS-304 & IS-2062 Type : Cylindrical or rectangular

• Country of Origin: India
• Material: Stainless Steel
• Certification: ISO 9001:2008

Agitated Nutsche Filter Dryer is a recent innovation in the filtration technique. It is extensively used in dyes, paints, pesticides and fine chemical industries. Safety requirement and environmental concerns due to solvent evaporation lead to development of this type of filter, where the filtration and drying under vacuum pressure can be carried out in a closed vessel..A filter cloth is kept over the perforated plate. The entire vessel can be kept at desired temperature by having a limpet coil or jacket through which the heat transfer medium can be passed. The vessel can be made leak proof for vacuum or pressure services.

• WORKING VOLUME: 50
• CAKE VOLUME: 25

The equipment is functionally safe and easy to operate. It can carry out various phase of process operations, viz: Crystallization , filtration, extraction, Discoloration, Washing and drying. The number of conventional machines employed for filtration process are also reduced. It has multi- functional utility, saves on power, labor, floor space, material wastage and time.

• Voltage: 220 V
• Brand Name: Ability Centrifuges
• Country of Origin: Made in India
• Usage/Application: Pharmaceutical Industry
• Capacity: 3 KL
• Working Volume: 0-2 cubic m
• Material Of Construction: Stainless Steel
• Automation Grade: Automatic
• Design: CGMP Model
• Material Grade: SS316

Nutch Filters are most commonly used in such filters is to carry out filtration under vacuum or pressure in closed vessels. This also helps in discharging solids straightaway into dryer. Vision will design and supply Nutch Filters as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L  Normal Capacity from 20 Liters-2000Litres or suiting to client's requirement  Operating range, Pressure-full vacuum to 4Kg/cm2  Types: Vertical (Dishend/Cylindrical Shell Type)& Square Type

• MEANFD 50G: 50,25,0.2
• MEANFD 100G: 100,50,0.4
• MEANFD 200G: 200,100,0.5

Agitated Filter is a closed vessel designed to separate solid and liquid by filtration under pressure or vacuum. The closed operation ensures odorless, contamination free and nonpolluting working conditions maintaining product purity and hygiene. The advanced technology of agitation and hydraulics used in the equipment makes it versatile and user friendly. The resulting wet cake can be reslurried and washed thoroughly with water or solvents unlike in” NUTSCHE” type filters or centrifuges. Wash liquid quantity can be controlled and recycled, reducing effluent load. The discharge of wet cake is automatic. If the process demands filtration in chilled or hot condition, it is also possible. Drying of wet cake is also possible when drying features are incorporated. The equipment is functionally safe and easy to operate. It can carry out various phase of process operations, viz: Crystallization , filtration, extraction, Discoloration, Washing and drying. The number of conventional machines employed for filtration process are also reduced. It has multi- functional utility, saves on power, labor, floor space, material wastage and time.
