R & D Engineers Kukatpally, Hyderabad, Telangana

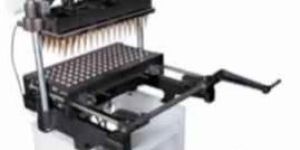

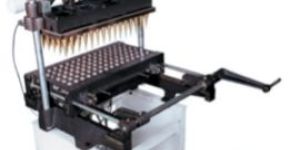

We are offering ze semi automatic ice cream cone machinery. The "ze" series of semi-automatic machines are used for baking ice-cream cones, sugar cones and cups. These machines are easy to use and robust. Electrical heaters are used in order to optimize energy use and thermal distribution. It is flexible enough for high production on a non-stop basis.

The 'ZE' series of semi-automatic machines are used for baking ice cream cones, moulded sugar cone and cups. These machines are easy to use and robust. The heating is by electrical heaters designed to optimize energy use and thermal distribution. This machine is flexible for high production on nonstop basis for 24 hours. FeaturesOne die-unit can bake and produce only one type of cone/cup.The upper and lower moulds are interchangeable. In two/three hours you can change the entire die-unit and start to produce with another type of cone.It can be easily operated by any unskilled operators by performing a few simple tasks.

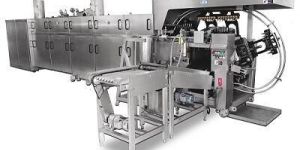

The Automatic Ice-Cream Cone Baking Machine "ZA-W" Series are efficient oven for the large scale production of all kinds of Ice cream cones, moulded sugar cones, cups and hallow wafers.According to the output required these machines are supplied with 18,24,30 or 36 baking moulds or higher. The oven can be heated by Liquid Petroleum Gas (LP Gas) or Electricity.

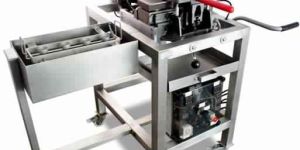

The ZA1 Series is an efficient test baking tong for laboratory scale production of all kinds of ice cream cones, cups and hollow wafers. They are characterized by the highest standards in precision, operating ease and utmost durability. They are easy to use and robust. Production Information Heating System These Machines are supplied only with electrical heating. They are mainly used as a laboratory equipment, for the purpose of product development. The temperatures for the upper and lower plates can be adjusted by means of a thermostat. Baking Moulds   The baking moulds are manufactured from a very special quality cast alloy to ensure dimensional stability and a homogeneous and dense surface to enable excellent thermal stability and conductivity.   Operation   The moulds are opened and closed by levels. The moulds are provided with a special closing device. After the heating, the cones are automatically ejected into a container below, when the lower mould is opened. These machines can be operated by any person with ease.

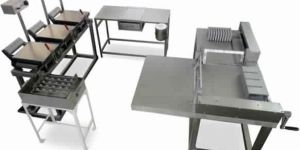

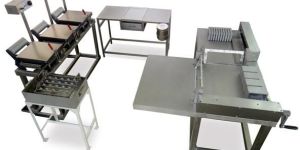

Offers wt series plants. Plate size 270mm x 370mm these are manually operated tongs starting from 120 kgsshift to about 300 kgsshift. They are characterized by simple, manual and low cost equipment. They serve the purpose of low investment or lab scale production operation.

WT Series cream wafer plants are used for the manually operated production of cream wafer biscuits. They are characterized by simple mechanism study and flexibility. These machines are low cost and economical in operation. Depending on the output required they can be supplied with 6, 9 or 12 Wafer baking tongs. Cream spreading table, cutting machine, batter and cream mixer and packing machine ensure that production is continuous.  Batter Preparation  A mixer of wheat flour, maize starch, vegetable fat and preservative colours is churned into a paste in the batter mixer. Machine Operation (6 WT)  The batter is fed to a pre-heated wafer tong by a special dosing device. Baking takes 1-3** minutes. The baked sheets are cooled. Subsequent operations are creaming, sandwiching & cutting. The cut wafers are then ready to be packed.

RS TT2 - Series semi automatic machines produces rolled sugar cones, cups or rolls. It is equipped with 9, 12 & 18 baking stations. These machines are designed with latest technical standards for an economical results. These machines are clearly laid out and

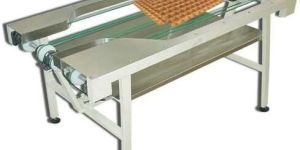

In large scale production when many wafer machines must be installed in an existing production area, or in to an existing production line a layout is required, in which the length and breadth of the wafer can be interchanged this facilitates the orientation wafer sheet to the correct layout for the next process.

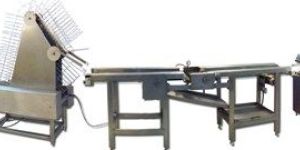

The automatic wafer baking machine SW series suitable for the production of first class quality flat wafers. These machines can be Equipped with 18, 24 30, 36 or 42 baking plates (tongs) according to the required output. The machine is built with a steel frame of rigid construction. An endless chain conveys the baking plates on their carriers through the baking chamber driven by a chain drive infinitely variable in speed through its range. The standard size of the baking plates is 290mm x 460mm. Also, special size of baking plates can be supplied on request. These baking plates can easily be exchanged to produce wafers of different designs. The oven can be heated by L.P. Gas or if preferred by Electricity.

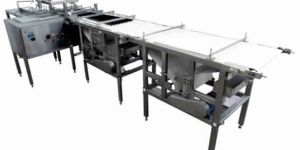

This is a compact version of wafer cutting and mini distribution.The cut wafer biscuit move directly and immediately from the cutting machine on to a conveyor with limited distribution.Once the wafer biscuits are separated side to side, the conveyor carries the spread wafer biscuit forward on to chocolate coating line     Conveyor (A) - Horizontal separation by strips guides.Conveyor (B) - Vertical separation by inventor controlled belt speed. The WFD - II Consists of standard machines1. Conveyor (A) & (B)2. WC 4 - Wafer Cutting MachineOptional Accessories1. Outfeed cutting frame with divider guides suitable for each cut size can be ordered separately.

Weight : 100-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg

Color : Black, Brown, Grey, Light White

Voltage : 110V, 220V, 380V, 440V

Condition : New, Used

Automatic Grade : Automatic, Semi Automatic

Power : 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw

Driven Type : Electric, Hydraulic, Penaumatic

Warrenty : 1 Year, 2 Years

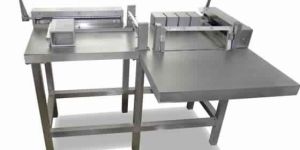

The wire cutting machine "WCM" is manually operated and cuts wafer blocks to small wafer fingers of predetermined dimensions. The cutter frame and feed bar can be exchanged to produce other size of biscuits. The machine is used for cutting of small scale output.

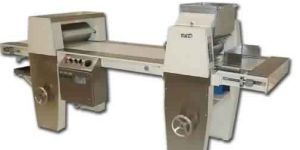

Cream Spreading Machines type CR4 can apply a wide range of creams to all kinds of wafer sheets up to a width of 480 mm. Normally these machines operate on the contact system but can also be supplied with an additional device for creaming by the film system. The spreading head contains a grooved spreading roller and a counter roller spreading roller are heated and thermosta-tically controlled. These two rollers are driven by an infinitely variable speed motor in opposite directions. To obtain the desired quantity of cream, Spreading adjustments

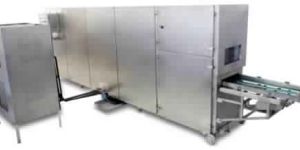

The wafer book cooler BC-Series machines of a compact design are fabricated from modular sections. This units developed by combination of a number of modules, will provide required cooling time and also fits in a space available. The bracket, guide plates, and all other parts coming into contact with the product are fabricated from stainless steel.

Our plants are designed for the industrial production of flat wafers and flat-shaped wafers. We deliver from manual plants for test marketing & trial purposes to fully automatic plants, incorporating dough mixing to packing of machines.

According to the output required it may be equipped with 48, 60 and 72 baking plates. The standard plate size is 470 X 350. These baking machines can be heated by L.P.G. (or if preferred by Electricity). Universal triangular burners are used for baking effect in gas plant by using twin row method. This page details gas heated plants.

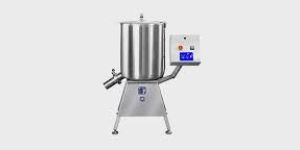

Type : Batter Mixer Machine

Weight : 100-1000kg, 1000-2000kg, 2000-3000kg

Color : Blue, Green

Condition : New, Used

Automatic Grade : Automatic, Fully Automatic, Semi Automatic

Power : 1-3kw, 12-15kw, 3-6kw, 6-9kw

Driven Type : Electric, Hydraulic

Warranty : 1year, 2year

Type : Wafer Machine

Weight : 100-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg

Color : Black, Brown, Grey, Light White

Voltage : 110V, 220V, 380V, 440V

Condition : Used

Automatic Grade : Automatic, Manual, Semi Automatic

Power : 1-3kw, 3-5kw, 5-7kw, 7-9kw

Driven Type : Electric

Warrenty : 1 Year, 2 Years

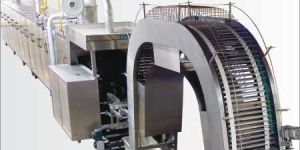

The WA Series of Wafer Biscuit Baking Machine are designed for fully automatic production of wafer sheets with fine medium or deep-reeding, as well as wafer sheets with hollow forms for all types of shapes. According to the output required it may be equipped with 48, 60 and 72 baking plates. The standard plate size is 470 X 350. These baking machines can be heated by L.P.G. (or if preferred by Electricity). Universal triangular burners are used for baking effect in gas plant by using twin row method. This page details gas heated plants.

We offer Swift Wafer Baking Line. Typical layout of Swift wafer plant SWIFT Wafer Baking Line Plate size 290mm X 460mm A whole package of machinery that meets the needs of small producers who want to extend their business as well as those who may be new to industrial production of waters.

Offers swift series automatic wafer baking machine. Plate size 290mm x 460mm the automatic wafer baking machine sw series suitable for the production of first class quality flat wafers. These machines can be equipped with 18, 24 30, 36 or 42 baking plates (tongs) according to the required output.
