S. M. Innotech Private Limited Tolichowki, Hyderabad, Telangana

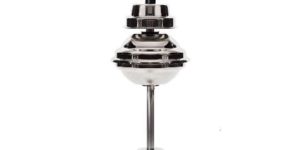

We are providing our valued clients with the cutting-edge Thunder Guard Lightning Protection System. Conforming to the stringent French Standard NF C17-102, Thunder Guard Lightning Protection System ensures efficient performance and longer service life. Thunder Guard Lightning Protection System has a larger protection radius compared to a conventional Franklin rod. Thunder Guard Lightning Protection System produces an upward streamer quicker than conventional air terminals and attaches the downward leader of the lightning strike in mid air, before it strikes any other object in the vicinity and safely conducts the lighting current to the ground via the down-conductor and the earthing system. Just before the lightning strike, Thunder Guard Lightning Protection System senses the rapid change in the ambient electric field and produces high voltage pulses that ionize the air particles around the device, generating an upward streamer that intercepts the downward leader of the lightning strike. Specifications & Standards Full compliance with French Standard NF C17-102 Outer body made of non-corrosive XL 304 stainless steel making the system fully resistant to dynamic power surging and effects of acid rain caused by lightning discharge. Capturing rod diameter : 25mm Atmospheric Area Force : 5 � 200 Kv/m Lightning Conductor weight : 6.2 Kg Different models with various protection radii available to suit the application. The ESE Principle The Principle of operation for ESE terminals is to create an upward propagating streamer earlier than conventional air terminals or other objects on the earth. Thunderguard does this by collecting and storing ground charge during the initial phase of a thunderstorm development. Once a thunderstorm begins creating downward step leaders, the ambient electric field intensity in the area of the ESE terminal increases. When this electric field intensifies, it triggers the terminal to release the stored ground charge, forming an upward streamer microseconds earlier than other objects in the immediate area. This development of an upward streamer earlier in time and space ensures that the Thunderguard ESE Terminal will be target of the developing lightning strike. The selection of the Thunderguard model, placement, and mounting height above the protected area all factor into formulas calculating the dimensions of the protection area. The standard protection radius R of the Thunderguard is linked (according to NF C 17-102 standard) to /_ T, to the protection levels I, II, III or IV and to the height of the Thunderguard above the protected structure (H, defined by NF C 17-102 as a minimum of 2 m). The NF C 17-102 standard includes four levels of protection. The protection radii of different models of Thunderguard are given in the table. Our experts will suggest the most suitable model after conducting a site survey.

Type : Lightning Protection System

Material : Stainless Steel

Application : Industrial Use

Weight : 6-8kg

Certificate : CE Certified, NFC 17-102

Brand Name : THUNDERGUARD - EARTHPLUS

Country of Origin : India

KALRE Mechanical Lightning Event Counters enclosed in IP 65 Weather Proof enclosure, sensitivity 1kA - 100 kA. Can be used with all lightning arrestors

Country of Origin : Made in India

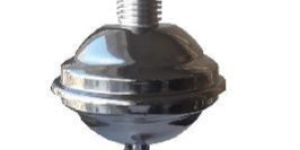

KALRE Early Streamer Emission (ESE) Lightning Arrestor made in Turkey, made with corrossion resistant high grade XL-304 Stainless Steel with protection radius 156 mtrs.

kalre early streamer emission (ese) lightning arrestor made in turkey, made with corrossion resistant high grade xl-304 stainless steel with protection radius 107 mtrs..

kalre early streamer emission (ese) lightning protection system is manufactured as per nfc 17-102:2011 standard. It is manufactured using high quality non corossive xl-304 grade stainless steel. It has different models with protection radius ranging from 71 mtrs, 84 mtrs, 95 mtrs, 107 mtrs, 156 mtrs.

Type : Early Streamer Emission

Material : Stainless Steel

Certification : NFC 17-102:2011, CE

Application : Solar, Buildings, Factories, etc

kalre early streamer emission (ese) lightning arrestor made in turkey, made with corrossion resistant high grade xl-304 stainless steel with protection radius 71 mtrs..

Type : Early Streamer Emission

Material : Stainless Steel

Certification : NFC 17-102:2011, CE

Application : Solar, Buildings, Factories, Monuments, Hospitals, Colleges etc

Our organization is acknowledged for offering the best range of Heavy Duty Coupler. Being a quality-oriented organization, we make every possible effort in order to provide clients with the best-in-class Heavy Duty Coupler all the time. Heavy Duty Coupler is made of high-grade material which ensures higher strength and provided with counted bore for protecting the rod threads from damage. Highlights Excellent designSmooth surface Longer service lifeResistance against corrosion

Material : GI

Shape : Square

Usage/Application : Earthing

Color : Silver

Country of Origin : Made in India

Country of Origin : Made in India

Material : Galvanized Iron (GI)

Earth Plus advanced earthing electrodes are engineered to endure the most enviously corrosive environments. These electrodes are robust enough to withstand fault currents of very high magnitude. Fabricated from excellent quality G.I/Copper pipes, these electrodes are virtually indestructible.   The pipes are profiled with proprietary "super conductive crystalline compound" which encloses the primary conductor completely, increasing it's  surface area and also forming a protective layer against corrosion. It never allows the primary conductor to come in direct contact with corrosive elements in the surrounding soil.   Features :   Robust Design to Last for a lifetime. Three level protection from Corrosion Outer Pipe (Gl/Copper) Layer of super conductive crystalline compound Primary conductor (Pipe/Strip)

Type : Electrodes

Material : GI

Thickness : 0-3mm

Certification : CE Certified

Length : 1000-3000 mm

Application : Earthing

Feature : Uniform Finish

Condition : New

Country of Origin : India

complete accessories for copper bonded rods, like e-2 type clamps, a type clamps, g type clamps, o type clamps, couplers etc..

We are highly regarded for offering highly efficient range of Earthing Electrodes. These Earthing Electrodes are designed to endure the most enviously corrosive environments. Owing to their robust construction and ability to withstand fault currents of very high magnitude, these Earthing Electrodes ensure efficient performance. Our Earthing Electrodes are made of excellent quality GI pipes and are virtually indestructible. The pipes are prefilled with proprietary 'super conductive crystalline compound' which encloses the primary conductor completely, increasing its surface area and also forming a protective layer against corrosion. It never allows the primary conductor to come in direct contact with corrosive elements in the surrounding soil. Features Robust design to last for a lifetimeThree level protection from corrosionOuter PipeLayer Of Super Conductive Crystalline CompoundPrimary Conductor

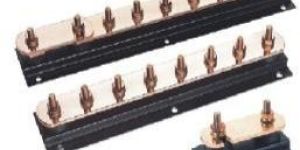

We bring forth the best range of Earthing Bars for our valued clients. These Earthing Bars are designed to provide a common earth point to connect to the main earthing system. Earthing Bars are provided with integral disconnecting links for isolation at the time of testing. These Earthing Bars are available with us in a variety of specifications and sizes to suit different applications. Highlights Longer service lifeMade of high grade material Efficient performance Excellent designs

Material : Copper

Country of Origin : Made in India

Material : Copper

Country of Origin : Made in India

We are widely appreciated for making available the best Copper Bonded Earthing Rods. These Copper Bonded Earthing Rods are manufactured from high tensile low carbon steel by molecularly bonding 99.9% pure electrolytic copper. Along with this, these Copper Bonded Earthing Rods are in conformance with the BS 4360 grade 43A. Each rod of Copper Bonded Earthing Rods is treated with Benzol triozole derivatives in order to prevent oxidation of copper bonding. The threads are formed by roll threading process which ensure strength and maintain the molecularly bonded copper along the full length of the threads. The Copper Bonded Earthing Rods can be deep driven manually or by using power hammer. Highlights Longer service lifeMade of high grade material Efficient performance Excellent designs

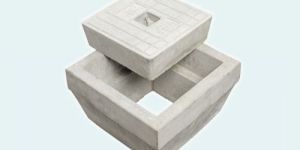

Our organization is highly regarded for making available the best range of Concrete Inspection Pits. We have placed ourselves on the topmost position in the markets by proving our efficiency of providing the best Concrete Inspection Pit. Our Concrete Inspection Pits are load rated to 3,500 Kg. Further, Concrete Inspection Pits are suitable for most types of earthing and lightning protection installation. Highlights Excellent designs Used for the most types of earthing and lightning protection installationConforming to the defined parameters Details ABC Dimensions : 320mm x 192mm x 146mmWeight : 30 Kg. each

dimensions: 320 mm(w) x 320 mm(l) x 192mm (h), weight 30 kgs, load bearing capacity: 5000 kgs..

Usage/Application : Earthing, Grounding

Packaging Size : 25 Kg

Packaging Type : HDPE Bag

Color : Brown

Brand Name : Earthplus

Feature : Moisture Boosting

Country of Origin : Made in India

Diameter : 0.66 Mm to 9.5 mm

We undertake design, supply & installation of lightning protection systems in compliance with international standards like IEC-62305 & NFPA-780, BS-EN-62305 & IS-2309. Our team of experts perform the risk assessment studies to determine the vulnerable areas of the structure to be protected and accordingly design the most efficient lightning protection scheme .This ensures the most effective placement of air terminations on the structure. Down conductors are positioned to provide the most direct path from the air termination to a low impedance grounding system, to help ensure safe and effective dissipation of the lightning impulse. Equipotential bonding of all circuits and conductors is necessary to reduce ground potential differences and to limit equipotential damage.

Form : Powder(PAC)

Type : coal & wood carbon

Country of Origin : Made in India

Driven by innovation, we are engaged in manufacturing, supplying and exporting the best range of Moisture Retaining Compounds. These Moisture Retaining Compounds are manufactured by making use of highly hygroscopic grades of bentonite. Moisture Retaining Compounds are meant to be used as backfill material in order to maintain moisture levels in areas of dry and rocky terrain. Further, Moisture Retaining Compounds absorb and retain moisture for long periods and tend to reduce soil resistivity to a certain extent. Features Low natural resistivityHighly hygroscopicAbility to absorb moisture from surrounding soilControlled swelling to avoid loss of Contact due to change in moisture levels
