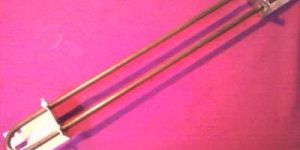

U Shaped Air Heaters
Our Long life U shape air heaters are made from Chrome nickel steel tube with adjustable brackets. We design the High temperature air heaters as per customer specifications.
...more
tubular air heaters
We are a topmost organization offering Tubular Air Heaters to our clients. These heaters are developed by using best quality material. These are available in different specifications and are reputed for their robust construction, hassle free performance and best heating capacity. The experts have tested our entire range before making this heater available in market. Apart from this, we are offering these heaters at reasonable price.
...more
Strip Heaters
These Strip Heaters are made up of high quality Nichrome ribbon wire that is insulated in fluted refractory. Specially selected Mica strip providing the heat distribution for maximum heater life. Mica of proper thickness is used to insulate the windings, providing excellent thermal conductivity and dielectric strength. The elements are encased in specially treated rust- resistant steel / stainless steel casing to provide physical strength and good thermal conductivity for sheath temperature upto 3000 C Type 304 Stainless Steel Sheath provides resistance to high temperature and corrosion, dependable at sheath temperatures of up to 5500 C .
...more

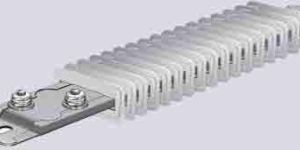

strip finned heaters
Nickel Plated Steel Fins are mounted to the rectangular tubing. The fins have been specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air. Applications Duct Heating. space heaters. drying Oven food Warmers Shrinking Tunnels Air Heating. Heating Curing etc.
...more

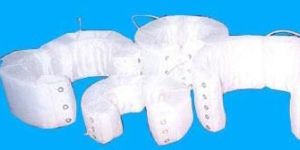

Power Saving Heaters
The Power saving heaters are consists of standard ceramic band and specially constructed insulation chamber with reflector which are enclosed in a SS Perforated Heat Sink Casing. The special internal steel casing with high thermal conductivity guarantees maximum heat transmission to the plasticisation cylinders. Features: Maximum Energy Saving. Minimum Sheath Temperatures. Perforated shell for coding. Variety of termination & Clampings. Voltage 230 V AC to 440 AC. Watt Max 45 win2. Applications: Plastics processing machinery. Injection moulding. Blow moulding. VarFood industry and others.
...more

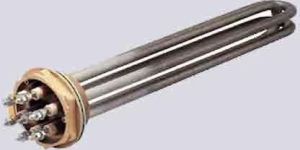

Oil Immersion Heaters
Sheathing Tubular elements are sheathed in copper with chrome nickel plating. The tubular heaters that are bent to a hair pin (U-shape) bent and are either brazed or welded to the mounting attachment depending upon the element sheet.
...more
Nozzle Heaters
Our Mica Band Heater is a proven design for good life efficiency and dependability. Specially selected mica grade and thickness is used to insulate windings providing excellent thermal conductivity and dielectric strength. Specially treated rust- resistant steel sheath, high emissivity and good thermal conductivity for heated cylindrical parts. Technical:: Voltage: Upto 440 V. Watt Density: Max 25w Win2. Sheath Material: Electro plated MS, Brass or Stainless Steel. Diameter: Min 25mm. Surface Temp: 3000 0c Applications: Widely used in Injection Moulding. Low cost electrical heating for Plastic processing. Rubber Vulcanizing Drums. Barrels Cylinders.
...more
mica strip
These Strip Heaters are made up of high quality Nichrome ribbon wire that is insulated in fluted refractory. Specially selected Mica strip providing the heat distribution for maximum heater life. Mica of proper thickness is used to insulate the windings, providing excellent thermal conductivity and dielectric strength.The elements are encased in specially treated rust- resistant steel stainless steel casing to provide physical strength and good thermal conductivity for sheath temperature upto 3000 C Type 304 Stainless Steel Sheath provides resistance to high temperature and corrosion.
...more
Industrial Ovens
Sri Balaji Heat Engineers,Industrial Air Circulation Ovens are engineered to meet your needs and solutions to specific applications such as drying, curing, bakin. Our ovens build by customer specification and special requirements. Maximum Operating Temperature up to 500 degrees and work space of dimensions 10Feet Width X 10 Feet Depth X 10Feet High. We are used heating elements highly quality low watt density magnesium oxide(96% pure MGO high grade) filled, SS grade sheath material and high grade resistance wire is precisely centered in a heavy guase material tube filled U shape Air Heater with 304 grade SS & GI coated finned tubular heaters. Installation In these ovens are highly qualified heating elements as well as 0.5HP to 5HP air circulation blower(combination) air flow. Consists of isolated inner ovens completely surrender by proper insulation to eliminate heat transfer from through metal and hot air leaches.
...more
FINNED U SHAPED AIR HEATERS
Finned tubular heating elements are of the type where the surface area enlarged by a strip in order to heat gases at high power the surface temperature is small and the heating elements are short. Finned Air Heaters for Higher Temperature are designed as per specifications. We are used heating elements high quality low watt density magnesium oxide(96% pure MGO high grade) filled, SS grade sheath material and high grade resistance wire is precisely centered in a heavy gauge material tube filled U shape Air Heater with 304 grade SS & GI coated finned tubular heaters.
...more

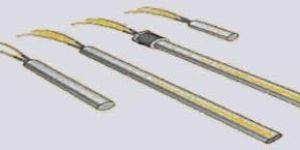

Brass Cartridge Heater
Cartridge heaters are designed for moderate watt density with shock and vibration resistance. Close and even spacing between wire and inside of sheath is maintained for good heat transfer. Applications: Heating of Manifolds. Heating of Dies. Heating of Planets. Heating of Hot stamping. Packaging Machines. injection Mounding Machine Extrusion Machines.
...more
air duct heaters
Sri Balaji Heat Engineers make Air Duct Heaters are used for process gas heating, drying ovens, air preheating, paint drying and curing, heat treating and more. Various terminal housings and control options available. Air duct heaters are designed for heating low pressure air or gases. Sri Balaji Heat Engineers make series air duct heaters are constructed with stainless steel tubular finned elements mounted in a stainless/ MS flange with operating temperatures up to 400 A° C. These electric process heaters can be designed to fit rectangular ductwork and can be supplied with transition sections when used on circular or smaller ducts. Features:: Element can be individually replaceable on site without the need of any special tools. Termination Box if required can be made weatherproof to IP:66 & IP: 67. Various type of over temperature cut outs available such as Thermostat, RTD or Thermocouples. Applications: Air Handling Units, Drying Oven, Furnace Heating. Space Heating. HVAC Duct Heating. Drying Oven. Furnace Heating.
...more
Air Circulation Ovens
Electric Melting Furnaces
Bobbin type Immersion Heaters
Finned Air Heaters
Furnace Maintenance
