Bond Tester Dealers in Indore

• Operating Temperature: 15-35 Degree C
• Weight: 11 lbs
• Voltage Test Type: AC
• Maximum Voltage Output: 6V
• Ramp Time: 10 msec
• Test Duration Timer: 0-25sec approx
• Duty Cycle: 100%
• Relative Humidity Range: 0-90% non-condensing
• Input Power Requirements: AC 120V

• Constant current delivers: 25 amps
• order Option: 30AC-T-W.

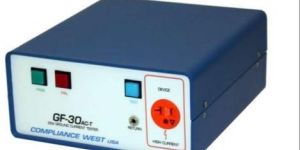

Pairing with a Compliance West Hipot Tester and our HTT-1R Function Checker makes a complete TUV Production Test Package.Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates.AC output. Constant current delivers 25 amps to any ground circuit with resistance of 0 to 0.1Ω.Virtual voltage sense circuit. ignores resistance of test leads for accuracy.NEMA 5-15 Receptacle for plugging in the device being tested. Universal receptacle available for testing products with International plugs; order Option 30AC-T-W.
