Level Transmitter Dealers in Indore

• Material: Stainless Steel
• Color: Blue
• Condition: New

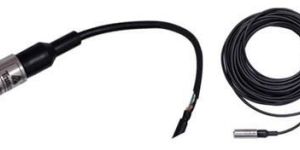

Hydrostatic level transmitter useful for most of liquid application. Useful for dairy, food, pharma and beverages industries.

We are offering ultrasonic level transmitter, the ultrasonic level compact transmitter (mlu 860) offers non-contact measurement of level of liquids stored in tanks. As the instrument does not come in contact with the liquid, its performance is not affected by the chemical properties of the same such as corrosiveness and aggressiveness. The transmitter offers accurate and reliable flow measurement in open channels. application examples raw water oil heavy water sugar syrup chilled water beverages effluent juices sewage acids alkalis.

• Accuracy: ± 0.25% (standard) ± 0.5% minimum % of Full Scale
• Sensor Supply: 14 to 36VDC
• Output: 4-20mA / 4-20mA HART / RS 485
• Load: 250 Ohm @14V to 1100 Ohm @ 36V
• Long-Term Stability: < ± 0.5% of Full Scale per Year
• Response Time: <2 mili seconds
• Sense Diaphragm Material: SS316L
• Wetted Sensor Material: SS316 / SS316L
• Cable Insulation: Polycarbonate/Polyurathene
• Submersible Protection Class: IP68

• Features: High performance, Absolute position, output Prompt response time
• Item Code: EG-Series
• Application: Industrial
• Accuracy: 10mm
• Type: Mafgnetostrictive Level Meter

We are offering water level measurement trainer - st2309. st2309 water level measurement trainer is designed to learn concept of water level measurement. It helps students & industry professionals to understand operation of level sensors in detail. Built-in on/off controller is also provided with audio & visual indicators. It also has a pc interface through usb for more interactive understanding of water level measurement. User can also take a direct printout if desired. st2309 water level measurement has a wide range of experiments with user friendly software.

We are offering capacitance level transmitter. Working principle the probe forms a capacitance with the metallic tank-wall. The capacitance is sum of three capacitance :- c(air)=ε(air) × p × (h - l) c(material)=ε(material) × p × l c(residual) is due to device itself. where ε(air) is the dielectric constant of air ≈1. Ε(material) is dielectric constant of material. p is constant of probe and installation, h is the active length of probe and l is the level of material. capacitance to level translation is performed with the aid of on-site calibration also called "wet-calibration" the device stores a low level capacitance as level for 4ma and high level capacitance as level for 20ma as defined by the user. using these values and following equation. c(high) c(low) l(high) l(low) = ------------------------------ p × {ε(material) ε(air)} device creates a chart of level to 4-20ma translation.

• Application: Food and Beverages Water / Wastewater Chemicals with vapors
• Max Pressure: 5 bar (without De-coupler)
• Enclosure: Aluminum or S.S-94 V
• Ingress Protection: NEMA4 (IP-65)Type 4/4X

The EA ultrasonic level indicator is a robust level measuring device for industrial applications. This non-contact type level transmitter is not only low cost and easy to install but it is a low maintenance level measuring product too.
