Liquid Level Switches Dealers in Indore

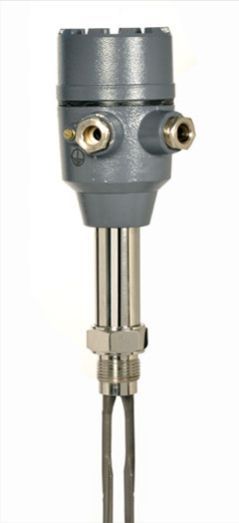

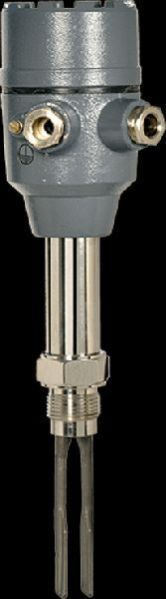

Elixir vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines. As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in features non-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated, splashing, foaming and having uncertain electrical properties. This level switch detects the resonant frequency change and changes the output signal according to fail­safe mode selection. Typically, the output is fed to a PLC which then uses it to control the process. Elixir vibrating fork is suitable for hazardous areas, available with explosion-proof housings certified by CMRI, Dhanbad.

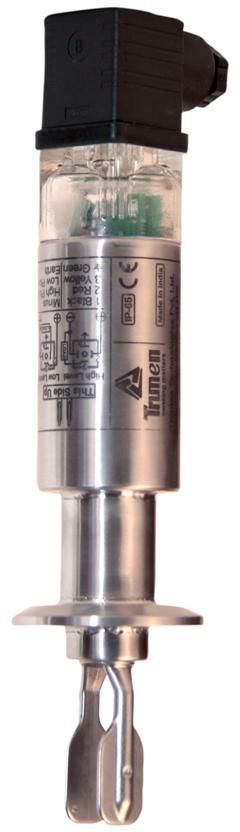

We are offering compact vibrating fork liquid level switch. Working principle electronics of lfv12 excites the piezo-electric-crystals inside tuning fork, which makes the fork tines vibrate at their natural resonance frequency in free air. when fork tines are immersed in liquid, the frequency of fork vibration falls due to the density of liquid. this change in frequency is detected by electronic circuit. liquid presence is thus detected.

Elixir is a microprocessor based liquid level switch which consumes low power and can be used for liquids up to 10000 cP and is suitable up to temperature limits of 200°C.
