Mantra Filtrations Products, Indore Dewas Naka, Indore, Madhya Pradesh

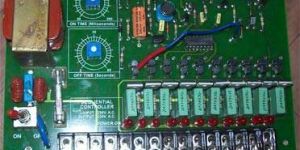

Pulse-jet cleaning bag Filter system utilise diaphragm valves to pass compressed air from the air supply lines and manifold into the blow piped within the bag filter. These diaphragm valves are usually actuated with electrically operated pilot solenoids. Solenoid Valves are available in ¾” to 2” suitable for 24V DC and 110V230V AC. Sequential timer controls are important for effective filter bag cleaning. Excessive differential pressure, increased fan power consumption, reduced production process air flow, and decreased filter bag life can result if timer controls are not functioning properly. Sequential timers are available from 3 to 40 channels.

We have in store for our clients, a highly functional gamut of rotary air lock valves that is used to minimize the system loses, while transferring the material between the vessels with different pressure or a volumetric feeder for metering material at specified low rates. Qualitative in nature, these valves hold the below mentioned specifics: Materials of Construction Cast Iron Cast steel Aluminium Heat resistant steel Construction detail: From 150 mm to 1000 mm size to meet capacities up to 500Ntrev. The Conveyor Screw imparts a smooth positive motion to the material as it rotates within the trough Couplings and Shaft connect and transmit motion to the subsequent screw conveyors. Held in place by self-locking Tem-U-Lac bolts. Materials of Construction

Material : Cast Iron,Cast steel,Aluminium,Heat resistant steel

A filter-cleaning apparatus utilizes pulsed air to remove matter collected on a first surface of a filter. Reverse flow loosens the material which is collected in a hopper on the upstream side of the filter. The collected matter may then be combusted in the hopper so that the amount of material collected is minimized. The pulses are directed at the filter with a controlled shape and time to optimize reverse pulsing. Pulsing occurs while the thermal exhaust flow continues so that operation of the engine is not interrupted. A number of valves may be utilized to clean one or more filters. MFP Manufactures and Supplies of Pulse Jet Bag Filter Systems with below feature: High Collecting Efficiency Low pressure drop Economically Designed Low Maintenance and Operative Cost

MFP supplies Deep Pleat Cartridges increase effective filter area significantly over conventional pleated synthetic media. Deeper pleats are allowable media which prevents collapsing of pleats under operating pressure. This unique design uses staggered dimpling on the filtering side which, unlike other dimpling patterns, provides unrestricted air flow and pulse cleaning at the extreme ends of the pleats. Filter media available in spunbond polyester and polypropylene, PTFE membrane, Aramid, and antistatic (aluminized) media.

The MIGI rapper is a general use rapper that is ideal for most applications. The MIGI is capable of delivering strong shearing forces to remove even the most tenacious of dusts from collecting curtains and rigid mast designed high voltage systems

High voltage support insulators mechanically support and electrically isolate the discharge electrodes from the grounded ESP casing and collecting curtains. Support insulators are designed for high compressive strength to support the loads imposed by the high voltage electrodes and associated framing. Providing the primary application point for high voltage and located in close proximity to the gas stream, high voltage support insulator design must also consider the voltage applied and operating environment. MFP supplies support insulator suitable for all type of ESP like Thermax, Alstom, ACC, VT Corp, ELS-Elex etc. We can also Supply various insulator for any type of ESP as follows: Shaft Insulators, Pin Insulators, Bust Duct Insulator , Wall Through Bushing insulators, Antis way insulator

Application : High Voltage

Condition : New

Rated Voltage : 66kV

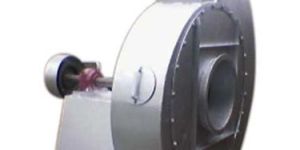

MFP can also supply ID FANFD FAN of all ranges (1,000-1,00,000 m3 hr). We can design the ID Fan as customer requirement. We also supply Diaphragm, FRL unit, manometer, Moulded Coil, Laser cut Tube sheet, Differential Pressure Gauge, Pressure switch, Blow pipes and Pneumatic Tensioning Tool etc.

For optimum filtration performance we manufacture high quality dust collection conventional bags. These dust collection conventional bags are made from minutely selected media as per the process industry. Different types of media such as needle felt, monofilament and multi-filament are used to develop these bags. With the support of filter cages, these are placed in dust collector. These bags are more effectual in minimizing dust emission level as per requirement of industries. Through the top chamber all the solid contaminants get deposited. With the help of shaking mechanism or reverse pulse jetting mechanism, the particles retained at the outer surface get collected at the bottom. MFP manufactures and Supplies the widest selection of filter bags for practically any application and for any OEM style bag house. Available Filter media like Polyester, Polypropylene, Homopolymer, Co-Polymer, PPS(Ryton),Nomex, Fiber Glass, PTFE, P-84 with finishes for enhance the performance of bag like Water repellent, Water and Oil repellent, Antistatic, Flame retardant, PTFE Coated, PTFE Membrane Laminated.

Electrostatic precipitation removes particles from the exhaust gas stream of an industrial process. Often the process involves combustion, but it can be any industrial process that would otherwise emit particles to the atmosphere. Six activities typically take place: Ionization – Charging of particles Migration -Transporting the charged particles to the collecting surfaces . Collection - Precipitation of the charged particles onto the collecting surfaces Charge Dissipation - Neutralizing the charged particles on the collecting surfaces Particle Dislodging –Removing the particles from the collecting surface to the hopper Particle Removal – Conveying the particles from the hopper to a disposal point

The Discharge electrode is the heart of any Electrostatic precipitator and its characteristics are the key to the ESP performance, its annealed copper nails ensure sharp corona points over along time. Most advantage of D.E. is higher corona generation and lower corona onset voltage. MFP can fulfill your discharge electrode needs for most designed Electrostatic Precipitators. We can supply you with the material, style and size to fit the requirements of your existing precipitation system in Straight round Wire, barbed discharge wire, rigid masts, rigid frames, Rigid Spiked Pipes and Spiral wire. MFP supplies discharge electrodes suitable for all type of ESP like Thermax, Alstom, ACC, VT Corp, ELS-Elex etc.

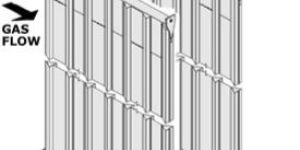

A typical collecting plate used in electrostatic precipitators. Collecting plates are made from rolled steel, and are welded together in the factory to reduce the installation time at the jobsite. Each plate contains electrodes which are positively charged. When the particulate gas enters the electrostatic precipitator and is struck with a negative charge electrode, the positively charged plates act as a magnet and pull the particulate gas to them. The plates have both top and bottom stiffeners and plates which allow better mounting and the ability to deal with more abuse from the rappers. The plates are arranged to form a series of gas passages There can be anywhere from 30-35 passages inside the electrostatic precipitator shell. The plates are placed parallel to the incoming particulate gas. MFP supplies collecting plates suitable for all type of ESP like Thermax, Alstom, ACC, VT Corp, ELS-Elex etc.

Pulse-jet style bughouses are designed to utilize fabric filter bags with internal support structures commonly referred to as cages. Cages provide a means of holding the filter bag open during the particulate collection cycle. Cages must be strong to withstand the pressure from the filter bag exerted during the particulate collection cycle. MFP provides a wide range of configurations to best fulfill your needs in MS, GI, SS304, SS316 and SS316L with 8, 10, 12, 16 and 20 vertical wires and any spacing of horizontal rings made by 3mm, 4mm and 5mm wire diameter. We can also supply Ventury made of MS, Aluminium, Cast Iron and Cast Alumimium in any type of design

MFP supplies, designs and sizes of J-Hooks, D-caps and spring assemblies, SS Clamp for all designs of RABH bags. We offer 100% polyester air-slide fabrics. Airslide fabric (hose) is used for material handling system and pneumatic conveying and is the ideal product for unloading or loading powder.We can supply following sizes: Thickness: 4mm, 4.5mm 5.0mm.5.5mm,6.0mm.7.0mm.8.0mm Width: 40mm -2100mm
