OHM Meters Dealers in Indore

• Accuracy: + 0.3% + 2 dgs
• Features: Compact Highly Reliable 3-1/2 Digit Instrument, Uses 4 Terminal Measurement method, Has 12.5 mm high 7 segment 3-1/2 Digits LED Display
• Model: 53C
• Range: 0 - 1999u / 19.99m / 199.9m / 1.999 / 19.99 / 199.9 / 1999 Ohms
• Normal Test Current: 1.5 / 0.75 / 0.75 / 75m / 7.5m/ 0.75m / 0.075mA
• Warm up Time: 3 minutes
• Input: 230V Single Phase AC 50Hz

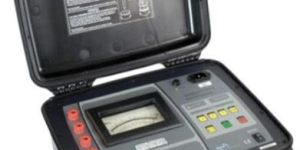

The Megohm meter MI10kV is a very robust insulation resistance tester to measure up to respectively 2.000.000 MΩ. With the selectable test voltages, the instruments can also be used for measurements at smaller (LV) installations. The tester is especially designed for field use (stand-alone, due to the integrated battery), to measure transmissiondistribution lines, medium voltage distribution systems, etc. They can also detect cable defects. The test values are easily and accurately displayed on the analogue scale. During the development of the tester, the engineers paid special attention to the safety standards (IEC 1010-1) and the requirements of the user. The practical, suitcase shaped and robust housing includes special storage for probes, leads and other accessories.

• Item Code: MI-10-KV

The Megohm meter MI10kV is a very robust insulation resistance tester to measure up to respectively 2.000.000 MΩ. With the selectable test voltages, the instruments can also be used for measurements at smaller (LV) installations. The tester is especially designed for field use (stand-alone, due to the integrated battery), to measure transmission/distribution lines, medium voltage distribution systems, etc. They can also detect cable defects. The test values are easily and accurately displayed on the analogue scale.During the development of the tester, the engineers paid special attention to the safety standards (IEC 1010-1) and the requirements of the user. The practical, suitcase shaped and robust housing includes special storage for probes, leads and other accessories.Including: Manual Test leads (high voltage) Carrying bag Adapter.

Digital Micro Ohm Meter (Low Resistance Ohmmeters) Test current up to 600A DC 0.1µΩ best resolution On board memory RS232 port for downloading/printing results
