waveform generators
Rigol DG4000 series is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Pulse Generator, Harmonic Generator, AnalogDigital Modulator and Counter. In Rigol DG4000, all of the 3 models have two channels with complete equivalent functions and precisely phase adjustable, they are the real dual-channel signal generator. Product Features Rigol DG4000 has maximum output frequency:160 MHz, 100 MHz, 60 MHz 500MSas sample rate, 14 bits vertical resolution Dual Channel Outputs With Identical Performance 2ppm High-frequency Stability -115dBcHz Low Phase Noise Versatile Analog and Digital Modulation functions Built-in 150 Waveforms Built-in 7digitss, 200MHz Counter Rigol DG4000 has 16th Harmonic Generation Function(Std.) Powerful Waveform Editing PC Software Connectivity: USB Host & Device, LAN 7 Inch LCD Display (800x480)
...more
current meter
Measure the potential difference, or voltage, between two points in an electrical or electronic circuit and to measure the current in a circuit.
...more
RMS General Purpose Clamp Meter
Finest 115 provides the combination of true-RMS and average sensing measurement, rugged construction, easy & single-hand operation and reliable performance indispensable to troubleshoot various general electrical problems. Product Features Rugged, easy & single-handed operational, and reliable. Protective hand guard to prevent an accidental contact with conductor. Frequency measurement capability. True-RMS Clamp Meter. Surge (Transient) Voltage protection. Peak hold DC A Zero adjustment thumbwheel. Low-Battery annunciator. Maximum conductor size 1.5". Diode test One Year Warranty
...more
Triple Output, 80W Power Supply
The Rigol DP1308A Series Power Supply is a high-performance 80W triple-output programmable linear DC power supply. It has excellent features including timed outputs and tracking capabilities; extremely clean power ripple and noise, comprehensive over-voltage, over current, over-temperature protection, a clean user interface, super performance specifications, and standard interfaces. Rigol DP1308A series power supplies meet the requirements of a wide range of benchtop development applications as well as industrial control and production testing. Product Features Rigol DP1308A is a Linear Power Supply design for improved performance. Full-color display with real time Volts, Amps, and Watts readout. Wave Track monitors output over time. GPIB, LXI-C (Ethernet), USB host & device interfaces all standard. Rigol DP1308A has Program channels to automatically change value over time. Save and store setups on flash memory drive.
...more
Temperature Measuring Workbench
In this world driven by technology , instrumentation & control engineering drives industrial growth, whilst process control is a vital concept of it. The functionality and complexity of Process Control has increased. Scientech 2472 Temperature Measuring Workbench consists of an instrument panel and working area. This system comprises of latest components, which reflect the latest technological innovations in this field. Temperature Measuring Workbench allows students and industry professionals to understand the concepts and working of temperature measuring instruments and control. Scientech 2472 Temperature Measuring Workbench is a complete setup to control process through two point (ONOFF) and three point (PID) controllers. Temperature can be controlled through an DAQ which has 8 digital inputs and 8 digital outputs and 8 analog inputs. Scientech 2472 also gives the exposure to Industrial components like Temperature Transmitter , Temperature Sensor , Thermocouple, RTD, PID controller and different types of Thermometers e,g, Alcohol, Mercury and Bimetallic, Radiation and Optical Pyrometer , Heater etc. Users can learn how to calibrate, install, operate, program and tune the instruments for controlling the processes. All electrical components are connected to the control panel to allow students to measure signals and connect devices in wide variety of control configuration including open loop (manual control) and close loop (PID control, ONOFF control). Product Features Industry-standard instruments and controls Heavy duty Workbench Electrical control panel Temperature Transmitter for RTD & Thermocouples Industrial Sensor RTD, Thermocouple Types of Thermometers - Bimetallic Thermometer, Alcohol Thermometer, Mercury Thermometer Temperature Calibrator 7” HMI SCR Power Controller Interface with Ethernet based DAQ 8 Channel 24 bit ADC
...more
DSA800E Rigol Spectrum Analyzer
The ability to measure smaller signals: on the basis of this technology, the IF filter enables smaller bandwidth settings, which greatly reduce the displayed average noise level. The ability to distinguish between small signals by frequency: using the IF filter with the smallest bandwidth setting, it is possible to make out signals with a frequency difference of only 10 Hz. High precision amplitude readings: this technology almost eliminates the errors generated by filter switching, reference level uncertainty, scale distortion, as well as errors produced in the process of switching between logarithmic and linear display of amplitude when using a traditional analog IF design. Higher reliability: compared with traditional analog designs, the digital IF greatly reduces the complexity of the hardware, the system instability caused by channel aging, and the temperature sensitivity that can contribute to parts failure. High measurement speed: the use of digital IF technology improves the bandwidth precision and selectivity of the filter, minimizing the scanning time and improving the speed of the measurement. Product Features All-Digital IF Technology Frequency Range from 9 kHz to 3.2 GHz Min. -148 dBm Displayed Average Noise Level (Typ.) Min.
...more

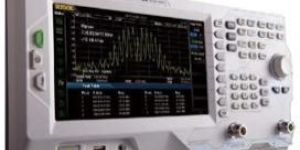

Spectrum Analyzer
Product Features All-Digital IF Technology Frequency Range from 9 kHz up to 7.5 GHz Min. -161 dBm Displayed Average Noise Level (Typ.) Min. < -98 dBcHz @ 10 kHz Offset Phase Noise Level Measurement Uncertainty < 0.8 dB 10 Hz Minimum Resolution Bandwidth (Rigol DSA832875) Up to 7.5 GHz Tracking Generator (Rigol DSA8XX-TG) Optional Preamplifier (Rigol DSA832875) Advanced Measurement Functions (Opt.) EMI Filter & Quasi-Peak Detector Kit (Opt.) VSWR Measurement Kit (Opt.) PC Software (Opt.) Optional RF TXRX Training Kit Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge ...) Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.) 8 Inch WVGA (800x480) Display Compact Size, Light Weight Design
...more
Source Measure Unit
The GS610 is a highly accurate and highly functional programmable voltagecurrent source that incorporates voltagecurrent generation and measurement functions. The maximum output voltage and current are 110 V and 3.2 A, respectively. Evaluation of over a wide range of basic electrical characteristics is possible, because the GS610 can operate as a current source or a current sink. Product Features Source and sink operation up to 110 V3.2 A (four-quadrant operation) Basic accuracy: ±0.02% (DC voltage generation) Sweep output at up to 100-µ intervals Comes with abundant sweep patterns (linear, logarithmic, and arbitrary) Stores up to 65535 points of source measure data in the internal memory Remote control and FTP using Web server function (Optional) Easy file operation with the USB storage function
...more

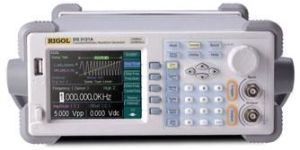

Rigol Function/Arbitrary Waveform Generators
Product Features Optional Digital Logic Module - Create true mixed signals with 1 analog and up to 16 digital channels of stimulus DDS Technology: Provides for a superior signal with low distortion and noise 300MSas of sample rate, 14 bits of vertical resolution, 1M points of memory depth 4.0" QVGA color LCD 10 standard waveforms: Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sin(x)x, Cardiac, DC Arbitrary Waveform generation as defined by the user Versatile modulation and variety of waveforms: AM, FM, PM, FSK, PWM, Sweep, Burst Versatile input and output signals: Waveforms output, Digital synchronous signals output, External Modulation Source, Clock Reference (10 MHz), External Trigger and Internal Clock Output (10 MHz) IO: USB Device, RS-232, GPIB, LAN Remote access and control signal generators through 10100M LAN interface USB Host to support USB flash memory, USB printer and direct system upgrade Seamless connectivity with DS series digital oscilloscopes: Ability to generate signals from stored waveforms from our DSO
...more

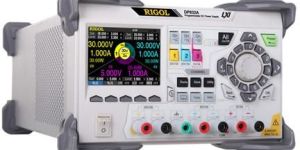

Programmable Linear DC Power Supply
Rigol DP832A Rigol 832 Rigol 831A:3 Outputs, CH1 || CH2,CH3,Total Power up to 195W Rigol DP811A:40V5A or 20V10A,Single Channel,Dual Range with Remote Sense Rigol DP821A:60V1A || 8V10A,,Dual Channel with Remote Sense Low Ripple Noise:
...more
programmable dc power supply
4.3 inch large True Color LCD Display with 480�272 high resolution: Displays multiple parameters and state graph simultaneously. Fast Transient Response Time:
...more
Programmable DC Electronic Load
The DL3000 is a cost-effective programmable DC Electronic Load with performance specifications that rival any instrument in its class. With a user-friendly interface including graphical charting, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. Test power systems and batteries with configurable static, transient, and advanced application modes. Product Features Dynamic Load Performance and Visualization Up to 5 Aus slew rate and 30 KHz dynamic loading High resolution and accuracy on voltage and current load conditions 3 Built in application setups for battery testing or Current or Power optimization Free UltraLoad Software for remote operation and monitoring
...more
Precision Power Analyzers
Offering the world’s best power measurement accuracy, the WT3000E provides engineers with a solution for testing and verifying product efficiency. The WT3000E is ideal for the design and testing of Solar Inverters, Motor Drives, Lighting Systems, Uninterruptible Power Supplies, Transformer Testing, Aircraft Power Systems, and other power conversion devices. Product Features Basic power accuracy: 0.01% of reading Both 2 A and 3low0 A input elements can be installed in a single unit Good readability: 8.4-inch LCD and the range indicator LEDs Simultaneous measurement with 2 units (Up to 8 power input elements) Store function: 50 ms data storing interval Multiple computer interface: GP-IB, Ethernet, RS-232 and USB Advanced computation function: Waveform computation, FFT analysis, waveform sampling data saving. The latest IEC61000-3-2 and IEC61000-3-12: Harmonic measurement The latest IEC61000-3-3 and IEC61000-3-11: Voltage fluctuation flicker measurement
...more
Precision Power Analyzer
Yokogawa's power measurement technology provides best-in-class precision and stability Precision Power Analyzer Yokogawa WT3000 with basic power accuracy of ± 0.02% of reading, DC and 0.1 Hz - 1 MHz measurement bandwidths, and up to four input elements, the WT3000 provides a higher-accuracy measurement for inverter IO efficiency. More Precise. More Bandwidth. More Features. The Yokogawa WT3000 is a truly innovative measurement solution, combining top-level measurement accuracy with special functions. The large, 8.4-inch liquid crystal display and the range indicator LEDs ensure good readability and make the system easy to use. In developing the Yokogawa WT3000, Yokogawa focused on improving efficiency in two basic areas. One goal was to obtain highly precise and simultaneous measurements of the power conversion efficiency of a piece of equipment. The other objective was to improve equipment evaluation efficiency by making simultaneous power evaluations and tests easier and faster. The Yokogawa WT3000 equips with a PC card slot (ATA flash card slot). The WT3000 is also standard-equipped with a GP-IB port. In addition, a serial (RS-232) port, Ethernet port, USB port for peripheral, and USB port for connection to PC are available as options. The variety of interface choices allows customers to use the best interfaces for a wide variety of equipment, media, and network environments.
...more
Precise Data Acquisition
Increasing complexities in electronic systems have resulted in the need of the instruments capable of measuring a wide range of input signals at fast sampling speeds over longer periods of time. Perfected over years of continuous innovations, Yokogawa ScopeCorder is a unique solution to meeting the most stringent measurement requirements. Built to endure the harshest measuring environments, Yokogawa ScopeCorder offers the superior performance and high reliability expected of a waveform measuring instrument. Product Features Yokogawa ScopeCorder DL850EDL850EV delivers: Flexibility: Choose and combine up to 19 types of plug-in module to fit a variety of measuring applications. Simultaneously capture and display data from electrical and physical sensor signals. Reliability: Precisely measure signals at high resolution and secure data in the harshest environments with superior isolation technology. Functionality: Combining the signal fidelity of an oscilloscope and data recording of a recorder, data can be thoroughly analyzed in fine detail or viewed as a trend over lon
...more
Power Quality Analyzer
It measures it all, accurately! - Voltage, current, and frequency - Power, energy, demand - Harmonic distortion - Power quality - Motor Current Signature Analysis (MCSA) It handles well. - Small footprint: 3.9"x 7.75" x 1.6" at base - Lightweight 1.1 lbs - Contoured, cushion grip for comfort - Ruggedized construction for field use It's the easiest to use. - Backlit LCD for clear readings - Real-time meter display - Buttons labeled for ease of navigation - Surestart checks for correct connections And the safest to connect and operate. - Highest safety rating (CAT IV) at 600V - Surestart minimizes re-connections - Flexible current transformers for tight,confined spaces - SafeConnect option for switchboards and other equipment - Wireless remote control from PC via Bluetooth
...more
Power Logger
The PS2500 AND PS3500 are inexpensive yet versatile, handheld power monitors. Both provide a complete solution for the process of performing power studies â from setup, to data gathering, to issuing a comprehensive final report. Both are excellent choices for power studies; the PS3500 offers more measurements and features that are accessible through the keypad. Note their contoured, rubberized grip that fits securely and comfortably in the hand. They are lightweight (only 1.1 lb.), compact and rugged, - ideal for field work! Product Features The perfect instrument for basic power studies 4 current & 3 voltage channels Optional harmonics
...more
Power Analyzer
The PS2500 AND PS3500 are inexpensive yet versatile, handheld power monitors. Both provide a complete solution for the process of performing power studies – from setup, to data gathering, to issuing a comprehensive final report. Both are excellent choices for power studies; the PS3500 offers more measurements and features that are accessible through the keypad. Note their contoured, rubberized grip that fits securely and comfortably in the hand. They are lightweight (only 1.1 lb.), compact and rugged, - ideal for field work! Product Features Great for handheld studies and long-term data logging Control from keypad or PC View individual harmonics in display
...more
Potentiometric Displacement Sensor
pH Meter
Nvis 901 is an advanced microprocessor based pH meter. Nvis 901 is designed for scientific laboratories and Universities. It has three point calibration, Auto temperature compensation, PC Interface, etc. Nvis 901 is a precise measuring instrument which provides resolution of 0.01 for pH and 0.1°C for temperature. PC communication software provides facility to store pH and temperature data on computer & graphs can be plotted for pH vs Time, and Temperature vs Time. Product Features pH range0-14 Temperature range 0-80°C Three point calibration PC Interface Auto Temperature Compensation Manual Temperature Compensation 2 Year Warranty
...more
PCB Prototyping System
EP2006 series PCB Prototype Machine will bring you the most simple, quick precise way to make your own PCB prototype. Just input your Gerber file, your PCB can be made within minutes to hours. Product Features High accuracy and easy operation. Automatic tool Length Detect Function. Surface detect and real time working depth compensation function. Working depth setup by software control. Motorized Z – axis with software control drill speed. 5 Phase stepping motor with precisely ball screw and liner guide.
...more
PCB Prototype Machine
Everprecision equipment offers cost-effective, environmentally friendly equipment for each stage of the prototyping process, from design verification to structuring and board assembly. It allows customers to produce fully functioning boards quickly and easily by drillingmillingengravingrouting, mil track and trace. Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production. 42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can be control spindle speed by software and apply to 4 mil track and trace. PCAM Software: PCAM is compatible with all windows system and accepts standard RS274DX format Gerber files exported from Layout Software like : P-Cad allegro protel ALTIUM Designer Power PCB(PADS)ORCAD, etc Product Features Engrave Tool For engraving trace and pad. End-mill Tool For copper removing. Drill Bit For drilling holes. Router Bit For PCB outline cutting. No pollution environmental friendly. Working Area : 320mm X 230mm.
...more
PC Relay Controller
PC Based Logic Analyzer
Sophisticated Trigger Captures the Data you want The LA-4000 & LA-5000 captures the data that is important for your logic analysis. Sophisticated 16 level triggering allows fine tuning of the exact point to start data captures. The continuously variable prepost trigger allows the trigger to be placed anywhere within the data buffer. Up to 512 K events, before or after the trigger can be recorded. These powerful capabilities, come in handy for finding the cause of an error condition, and the large buffer to record the sequence of events leading up it. Deep Data Buffers Capture Everything that You Need The LA-4000's and LA-5000's deep data buffer offers flexibility of storing a great number of events surrounding the trigger. In some situations where it is difficult to pinpoint an exact event for triggering, the breadth of a 512 K data buffer can still capture the desired data Product Features Max Sampling Rate 500 MHz. Deep data buffers (up to 512 K samples per channel 500 MHz). Simply put, the deeper the buffer the better. Continuously variable prepost trigger position. Store up to 512 K events surrounding the trigger point. Up to 160 data input channels. High impedance probes minimize interface with the circuit under test(200 Kohm5 pf). Variable threshold voltage between -6.4 -+6.4 V.
...more
Digital Communication Simulation Software
DC Position Control System
Nanotechnology Learning Softwares
Human Physiology Services
digital image processing
Microwave Engineering Services
